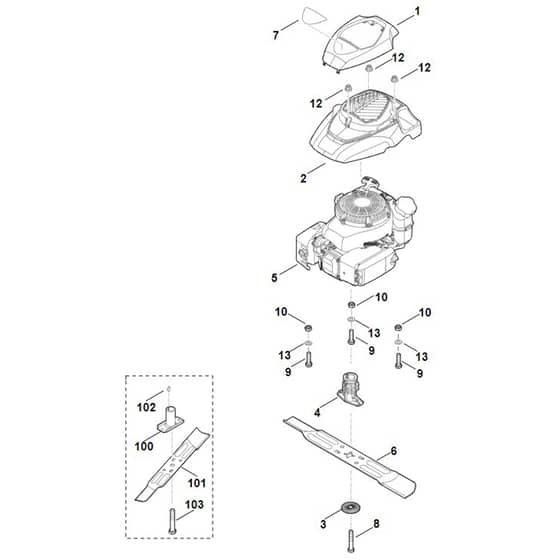

Viking MB253.0 T - Engine - Blade - Parts Diagram

Description

	Part No.	Details
1	ST0000 082 0419 Available to backorder	Cover upper section	£15.52 £12.93
2	ST0000 082 0424 Available to backorder	Cover lower section	£41.14 £34.28
3	ST0000 702 6600 Available to backorder	Washer	£4.18 £3.48
4	ST6105 702 5021 Available to backorder	Blade bushing	£15.94 £13.28

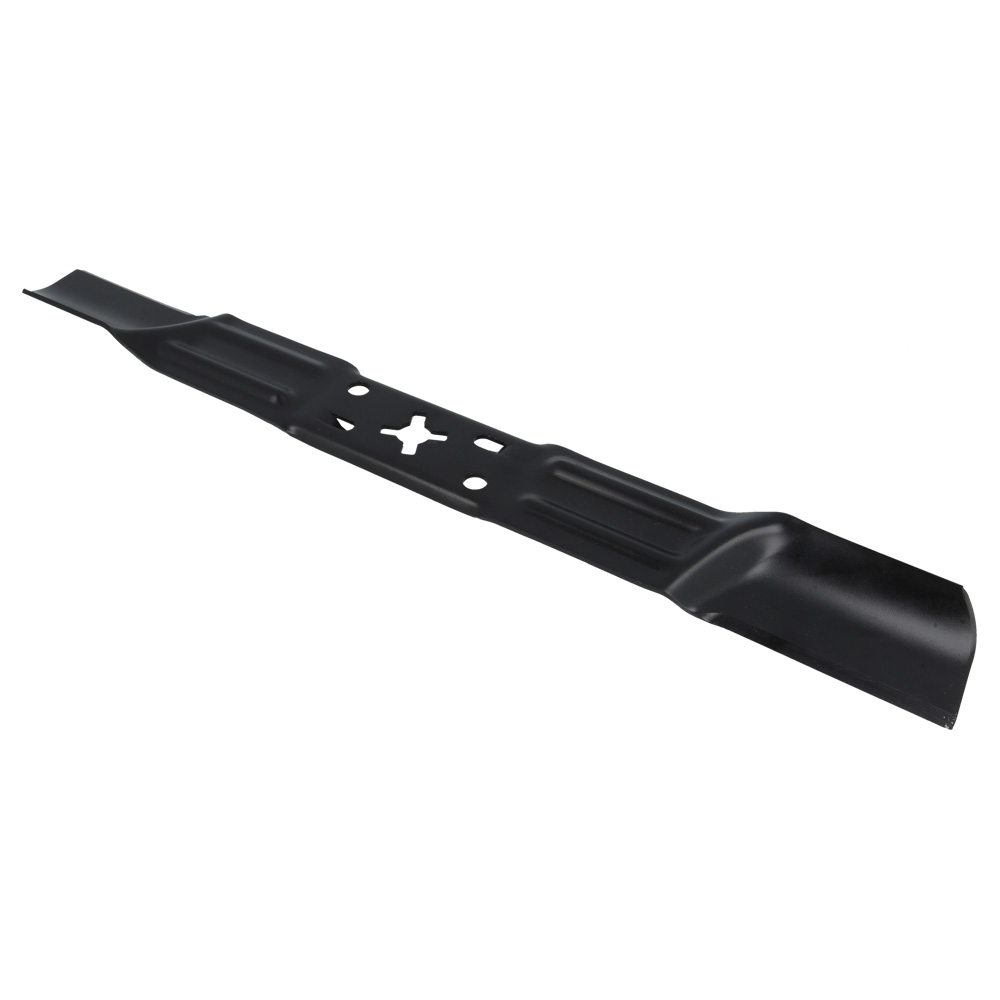

6	ST6371 702 0101 Available to backorder	Blade	£35.54 £29.62
8	ST9008 319 9028 In stock	Hexagon head screw 3/8"x21/4"	£2.08 £1.73
9	ST9008 318 1900 Available to backorder	Hexagon head screw M8x40	£1.42 £1.18
10	ST9214 320 1105 Available to backorder	Lock nut M8	£0.66 £0.55
12	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.66 £0.55
13	ST9291 020 0180 Available to backorder	Washer 84	£0.48 £0.40
100	ST6350 760 2011 Available to backorder	Blade bushing ( Up to Serial Number 434188268 )	£21.78 £18.15
102	ST9482 435 9920 Available to backorder	Woodruff key 5/32"x5/8" ( Up to Serial Number 434188268 )	£1.00 £0.83
103	ST9008 341 9076 Available to backorder	Hexagon head screw 3/8"x2" ( Up to Serial Number 434188268 )	£1.98 £1.65
