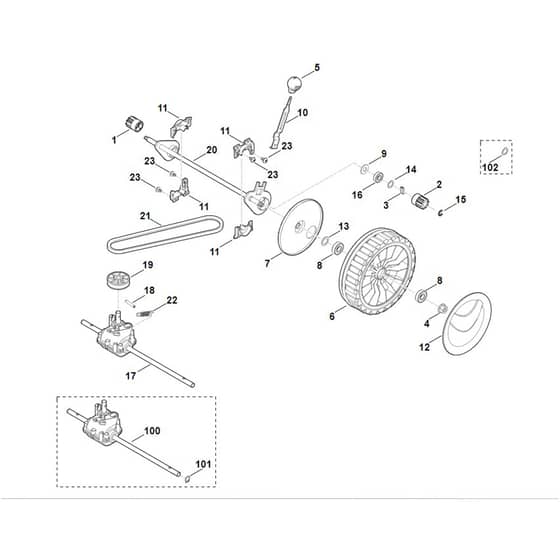

Viking MB2.2 RT - Front Axle - Gear Box - Parts Diagram

Name: Viking MB2.2 RT - Front Axle - Gear Box - Parts Diagram
SKU: mb2_2_rt_front_axle_gear_box-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB2.2 RT - Front Axle - Gear Box - Parts Diagram

Description

Viking MB2.2 RT - Front Axle - Gear Box - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6105 704 7400 In stock	Pinion	£13.76 £11.47
2	ST6105 704 7410 In stock	Pinion	£13.96 £11.63
3	ST0000 704 8300 In stock	Freewheel key	£1.66 £1.38
4	ST9216 261 1100 In stock	Hexagon nut M8	£0.76 £0.63
5	ST0000 989 8100 Available to backorder	Handle	£7.16 £5.97
6	ST0000 700 0425 In stock	Wheel assy. 200 (Contains 7+8)	£25.64 £21.37
7	ST6375 704 3611 Available to backorder	Cover	£12.44 £10.37
9	ST6103 704 7910 In stock	Protection disk	£1.10 £0.92
10	ST6336 703 6700 Available to backorder	Adjusting lever	£10.12 £8.43
11	ST6336 704 1210 Available to backorder	Axle bracket	£3.86 £3.22
12	ST6375 704 0301 In stock	Wheel cap	£6.60 £5.50
13	ST6336 702 1800 Available to backorder	Washer 13x196x2	£1.32 £1.10
15	ST9460 624 1000 In stock	E-clip 10	£0.34 £0.28
16	ST9503 003 5297 In stock	Grooved ball bearing 6001-2TRS	£5.38 £4.48
17	ST6357 640 0101 Available to backorder	Gear box assy. (Contains 18+19+22)	£75.34 £62.78
18	ST9380 620 2700 Available to backorder	Roll pin 5x30	£0.76 £0.63
19	ST6350 704 1000 Available to backorder	V-belt pulley	£9.80 £8.17
20	ST6357 700 2401 Available to backorder	Axle	£48.52 £40.43
21	ST6336 704 2100 In stock	V-belt	£19.58 £16.32
22	ST6357 643 3800 Available to backorder	Tension spring	£1.88 £1.57
23	ST9104 007 4255 Available to backorder	Self-tapping screw P5x8	£0.76 £0.63
100	ST6357 640 0100 Available to backorder	Gear box assy. ( Up to Serial Number 434998490 ) (Contains 18+19+22)	£75.90 £63.25
101	ST9455 621 1130 In stock	Circlip 12x1 ( Up to Serial Number 434998490 )	£0.66 £0.55
102	ST9296 021 1608 In stock	Washer 12x18x0.5	£0.66 £0.55
