Viking MB2.1 R - Housing - Chassis - Parts Diagram

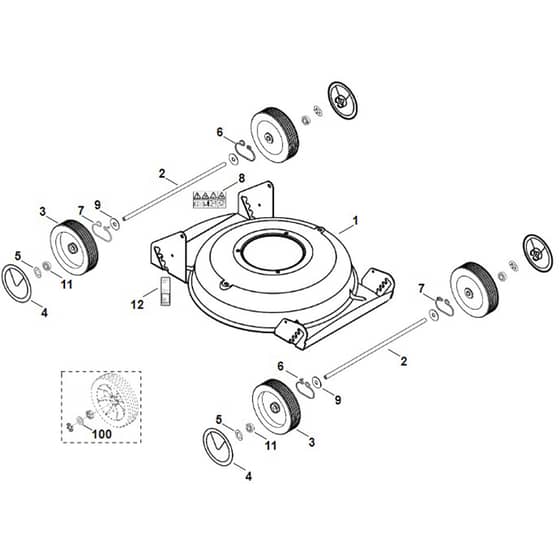

Viking MB2.1 R - Housing - Chassis - Parts Diagram

Part No. mb2_1_r_housing_chassis-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MB2.1 R - Housing - Chassis - Parts Diagram

Viking MB2.1 R - Housing - Chassis - Parts Diagram

Description

Viking MB2.1 R - Housing - Chassis - Parts Diagram

Ref.		Img.	Part No.	Details
	1		ST6357 700 8560 Available to backorder	Housing		£269.40 £224.50
	2		ST6357 703 0900 Available to backorder	Axle		£20.71 £17.26
	3		ST6100 700 0401 In stock	Wheel (Contains 11)		£20.16 £16.80
	4		ST6340 704 0301 Available to backorder	Wheel cap		£5.42 £4.52
	5		ST6106 704 5110 Available to backorder	Retaining ring		£1.14 £0.95
	6		ST6357 708 0800 Available to backorder	Spring		£2.63 £2.19
	7		ST6357 708 0805 Available to backorder	Spring		£2.63 £2.19
	8		ST0000 967 3679 Available to backorder	Warning note		£2.15 £1.79
	9		ST9298 021 3901 Available to backorder	Washer 13x40x125		£0.48 £0.40
	11		ST9503 003 9011 Available to backorder	Grooved ball bearing 27M-36x12		£6.25 £5.21
	12		ST6357 967 0101 Available to backorder	Model plate MB 2.1 R		£1.00 £0.83
	100		ST9291 020 0220 Available to backorder	Washer 13 ( Up to Serial Number 431694856 )		£0.46 £0.38
