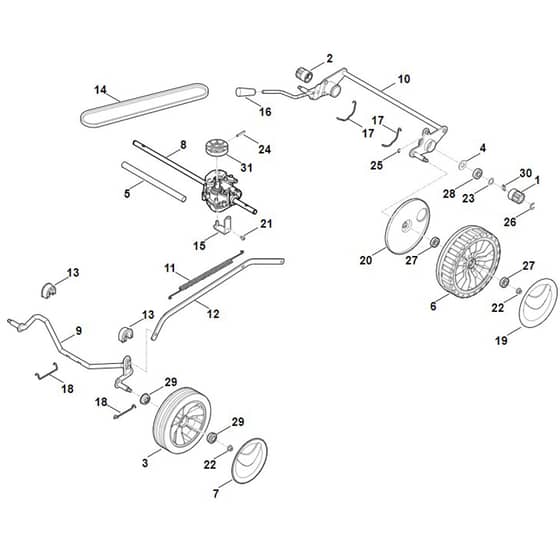

Viking MB 248.1 T - Chassis - Gear Box - Parts Diagram

Description

Viking MB 248.1 T - Chassis - Gear Box - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6105 704 7400 In stock	Pinion	£13.76 £11.47
2	ST6105 704 7410 In stock	Pinion	£13.96 £11.63
3	ST6100 700 0401 In stock	Wheel (Contains 29)	£18.82 £15.68
4	ST6103 704 7910 Available to backorder	Protection disk	£1.10 £0.92
5	ST6105 703 9111 Available to backorder	Tube	£2.08 £1.73
6	ST0000 700 0425 In stock	Wheel assy. 200 (Contains 20+27)	£25.64 £21.37
7	ST6340 704 0301 Available to backorder	Wheel cap	£5.62 £4.68

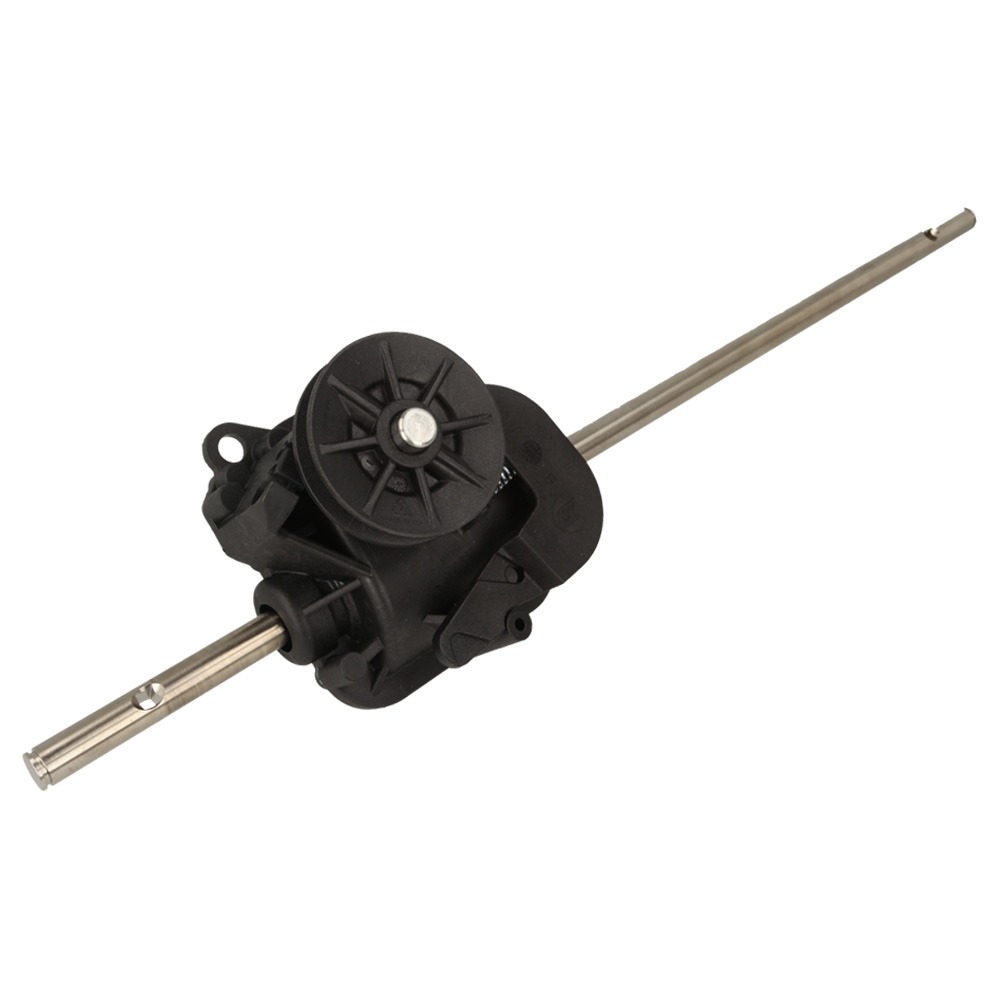

8	ST6350 640 0100 Available to backorder	Gear box (Contains 24+31)	£84.16 £70.13
9	ST6350 700 2421 Available to backorder	Axle	£39.50 £32.92
9	ST6350 700 2420 Available to backorder	Axle	£39.50 £32.92
10	ST6371 700 2410 Available to backorder	Axle (Contains 16)	£58.84 £49.03
11	ST6350 703 5105 In stock	Tension spring	£8.68 £7.23
12	ST6350 703 8800 In stock	Translation lever	£43.12 £35.93
13	ST6371 704 1200 In stock	Axle guard	£4.52 £3.77

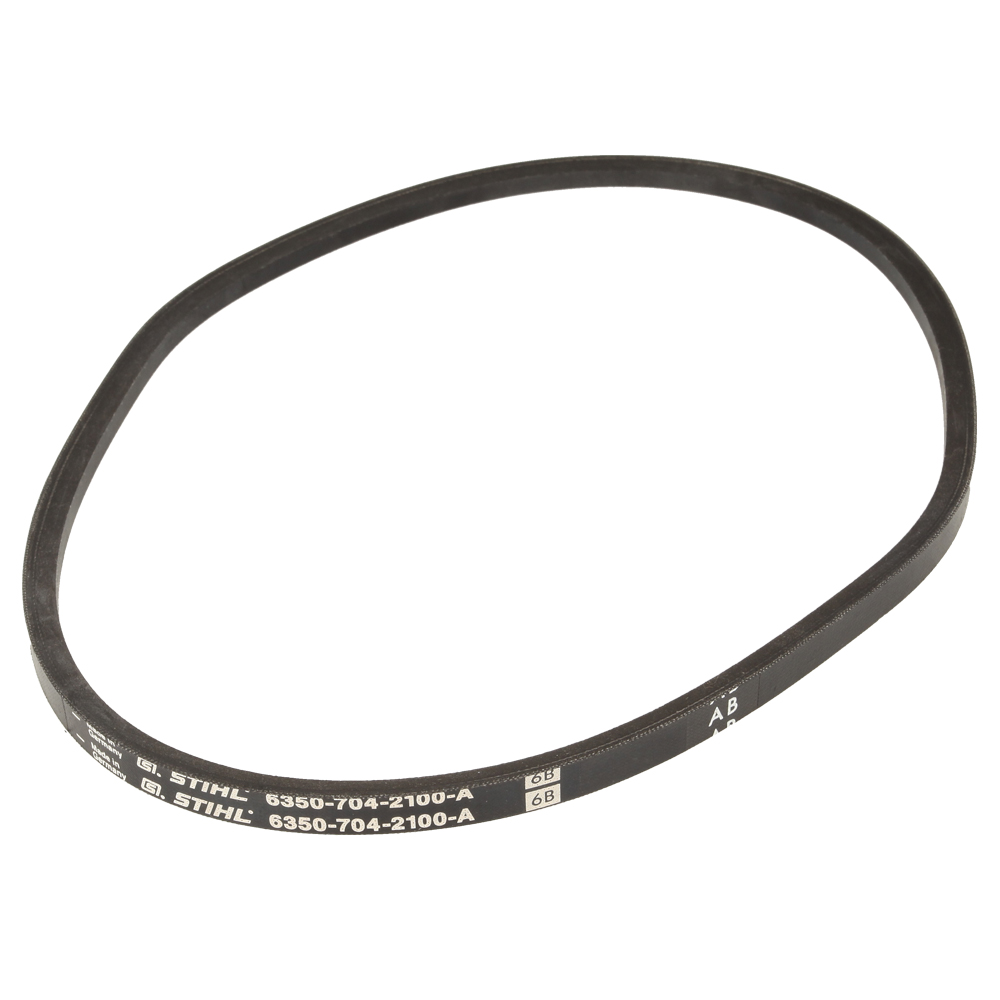

14	ST6350 704 2100 Available to backorder	V-belt	£20.80 £17.33
15	ST6350 704 2700 Available to backorder	Support	£7.48 £6.23
16	ST6350 706 6800 Available to backorder	Handle	£6.60 £5.50
17	ST6350 708 0316 In stock	Spring clip	£1.66 £1.38
18	ST6350 708 0320 In stock	Spring clip	£1.88 £1.57
19	ST6375 704 0301 In stock	Wheel cap	£6.60 £5.50
20	ST6375 704 3611 Available to backorder	Cover	£12.44 £10.37
21	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.76 £0.63
22	ST9216 261 1100 Available to backorder	Hexagon nut M8	£0.76 £0.63
23	ST9296 021 1608 Available to backorder	Washer 12x18x0.5	£0.66 £0.55
24	ST9380 620 2660 Available to backorder	Roll pin 5x26	£0.83 £0.69
25	ST9460 624 0600 In stock	E-clip 6	£0.34 £0.28
26	ST9460 624 1000 In stock	E-clip 10	£0.34 £0.28
27	ST9503 003 5297 In stock	Grooved ball bearing 6001-2TRS	£5.38 £4.48
29	ST9503 003 9011 Available to backorder	Grooved ball bearing 27M-36x12	£6.04 £5.03
30	ST0000 704 8300 In stock	Freewheel key	£1.66 £1.38
31	ST6350 704 1000 Available to backorder	V-belt pulley	£9.80 £8.17
