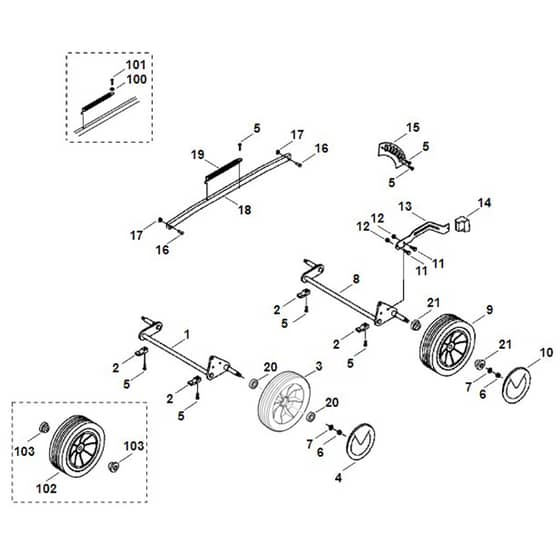

Viking MA400 - Chassis - Parts Diagram

Part No. ma400_chassis-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MA400 - Chassis - Parts Diagram

Viking MA400 - Chassis - Parts Diagram

Description

Viking MA400 - Chassis - Parts Diagram

Ref.		Img.	Part No.	Details
	2		ST6118 704 1200 Available to backorder	Axle bracket		£3.17 £2.64
	3		ST6360 700 0400 In stock	Wheel assy. 180 (Contains 20)		£19.46 £16.22
	5		ST9104 007 4270 In stock	Self-tapping screw P5x16		£0.95 £0.79
	6		ST9212 260 1100 In stock	Hexagon nut M8		£0.72 £0.60
	7		ST9291 021 0180 Available to backorder	Washer 8.4		£0.35 £0.29
	9		ST6100 700 0400 Available to backorder	Wheel (Contains 21)		£17.69 £14.74
	10		ST6100 704 0305 Available to backorder	Wheel cap		£4.20 £3.50
	10		ST6340 704 0301 Available to backorder	Wheel cap		£5.42 £4.52
	11		ST9008 318 1270 Available to backorder	Hexagon head screw M6x14		£0.91 £0.76
	12		ST9212 260 0900 In stock	Hexagon nut M6		£0.48 £0.40
	13		ST6103 703 6701 Available to backorder	Adjusting lever		£13.26 £11.05
	14		ST6103 703 6601 Available to backorder	Knob		£6.60 £5.50
	15		ST6103 703 9500 Available to backorder	Notched plate		£12.36 £10.30
	19		ST6118 703 5100 Available to backorder	Tension spring		£7.43 £6.19
	20		ST9503 003 5297 Available to backorder	Grooved ball bearing 6001-2TRS		£5.77 £4.81
	100		ST9307 021 0120 Available to backorder	Washer 5.3		£0.35 £0.29
	102		ST6100 700 0401 In stock	Wheel (Contains 103)		£20.16 £16.80
	103		ST9503 003 9011 Available to backorder	Grooved ball bearing 27M-36x12		£6.25 £5.21

Description

Viking MA400 - Chassis - Parts Diagram
