Viking MA339.0 - Engine - Blade - Parts Diagram

Description

	Part No.	Details
1	ST0000 951 1100 In stock	Screw	£1.54 £1.28
0	ST6320 600 0220 Available to backorder	Electric motor with gearbox (Contains 2-4+7+9+10+11+13+15+17)	£264.00 £220.00
3	ST6320 641 0310 Available to backorder	Gear housing	£44.12 £36.77
4	ST1250 600 0200 Available to backorder	Electric motor	£182.60 £152.17
5	ST6320 606 0100 Available to backorder	Fan shroud	£17.06 £14.22
7	ST6320 641 0300 Available to backorder	Gear housing	£53.14 £44.28
8	ST6320 702 0130 Available to backorder	Blade	£30.92 £25.77
9	ST6320 700 3500 Available to backorder	Shaft assy. (Contains 18+19)	£49.60 £41.33

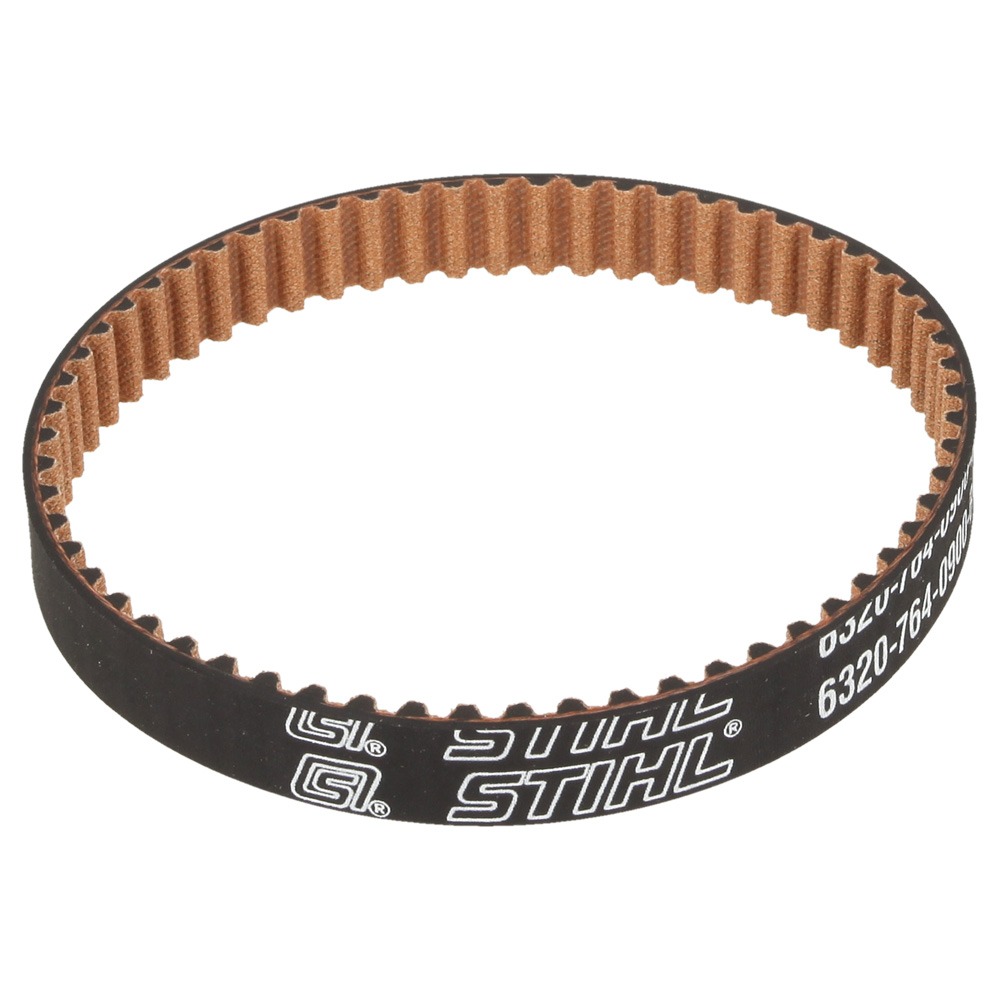

10	ST6320 764 0900 Available to backorder	Toothed belt	£24.10 £20.08
11	ST6320 760 7500 Available to backorder	Toothed-belt pulley	£16.06 £13.38
13	ST9074 477 4130 Available to backorder	Screw IS P5x16	£0.88 £0.73
14	ST9104 003 8734 Available to backorder	Self-tapping screw P4x16	£0.76 £0.63
15	ST9298 021 3935 Available to backorder	Spring washer 24	£0.76 £0.63
17	ST9460 624 0801 In stock	E-clip 8x13	£0.34 £0.28
18	ST9503 003 5330 Available to backorder	Grooved ball bearing 6003-2RS	£7.26 £6.05
19	ST9503 003 9860 Available to backorder	Deep-groove ball bearing 609-2RS	£11.98 £9.98
20	ST6310 702 5000 Available to backorder	Blade bushing	£10.24 £8.53
21	ST6310 760 2800 Available to backorder	Screw	£6.72 £5.60
21	ST6310 760 2801 Available to backorder	Screw	£6.04 £5.03
100	ST6320 702 0110 Available to backorder	Blade	£25.74 £21.45
