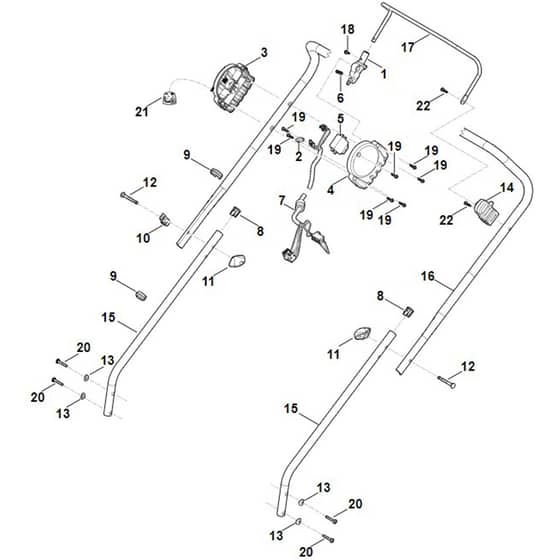

Viking MA235.0 - Handle - Parts Diagram

Description

	Part No.	Details
1	ST6311 403 1100 Available to backorder	Mounting device	£1.76 £1.47
2	ST6311 430 0800 Available to backorder	Strain relief	£1.10 £0.92
3	ST6311 430 9901 Available to backorder	Housing half assbly. (Dead man’s switch) (Contains 21)	£12.22 £10.18
5	ST6311 435 0301 Available to backorder	Switch	£23.32 £19.43
6	ST6311 435 8705 Available to backorder	Spring	£1.10 £0.92
7	ST6311 440 0300 Available to backorder	Cable	£72.04 £60.03
8	ST6311 703 2800 Available to backorder	Plug	£0.76 £0.63
9	ST6311 703 3110 Available to backorder	Cable Clips	£2.74 £2.28
10	ST6311 706 6600 Available to backorder	Guide	£1.00 £0.83
11	ST6311 708 4300 Available to backorder	Rotary handle	£4.96 £4.13
12	ST6311 708 8400 Available to backorder	Screw	£4.72 £3.93
13	ST6311 708 9390 Available to backorder	Washer	£1.10 £0.92
14	ST6311 760 5200 Available to backorder	Mounting (Contains 22)	£7.26 £6.05
15	ST6311 763 4800 Available to backorder	Lower handlebar (Contains 8)	£15.08 £12.57
16	ST6311 763 5000 Available to backorder	Upper handlebar	£30.80 £25.67
17	ST6311 764 0200 Available to backorder	Switch lever	£20.90 £17.42
18	ST6311 951 3503 Available to backorder	Screw 4x14	£0.76 £0.63
19	ST6311 951 3505 Available to backorder	Screw 4x16	£0.76 £0.63
20	ST6311 951 3520 Available to backorder	Screw 5x30	£1.00 £0.83
21	ST6311 967 4405 Available to backorder	Label	£2.08 £1.73
