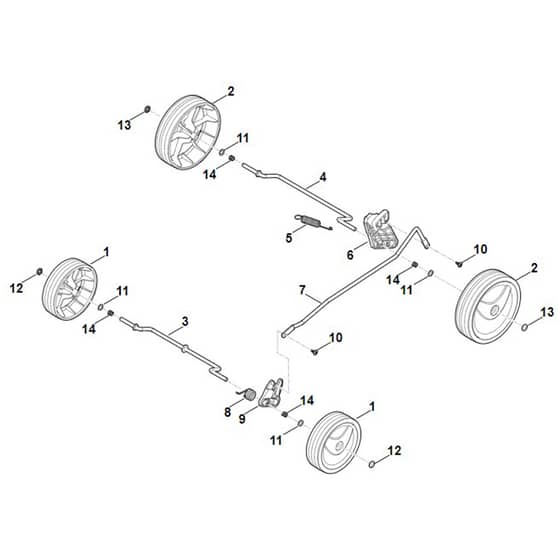

Viking MA235.0 - Chassis, Height Adjustment - Parts Diagram

Name: Viking MA235.0 - Chassis, Height Adjustment - Parts Diagram
SKU: ma235_0_chassis_height_adjustment-group
Price: 0.66 GBP
Availability: InStock

Part No. ma235_0_chassis_height_adjustment-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking MA235.0 - Chassis, Height Adjustment - Parts Diagram

Description

Viking MA235.0 - Chassis, Height Adjustment - Parts Diagram

	Part No.	Details
1	ST6311 700 0490 Available to backorder	Wheel (Contains 12)	£9.97 £8.31
1	ST6311 700 0492 Available to backorder	Wheel (Contains 12)	£10.34 £8.62
2	ST6311 700 0497 Available to backorder	Wheel (Contains 13)	£12.06 £10.05
2	ST6311 700 0495 Available to backorder	Wheel (Contains 13)	£12.71 £10.59
3	ST6311 700 2400 Available to backorder	Axle assy.	£26.17 £21.81
4	ST6311 700 2405 Available to backorder	Axle assy.	£26.74 £22.28
5	ST6311 703 5100 Available to backorder	Tension spring	£3.08 £2.57
6	ST6311 703 6700 Available to backorder	Lever	£12.64 £10.53
7	ST6311 703 8800 Available to backorder	Translation lever	£37.78 £31.48
8	ST6311 708 0800 Available to backorder	Spring	£3.08 £2.57
9	ST6311 763 2500 Available to backorder	Swivel plate	£4.09 £3.41
10	ST6311 951 3501 Available to backorder	Screw 4x12	£0.79 £0.66
11	ST6311 708 9300 Available to backorder	Washer	£1.14 £0.95
12	ST9991 003 0648 Available to backorder	Clamping ring 8	£1.72 £1.43
14	ST6311 764 2400 Available to backorder	Compression spring	£1.14 £0.95
