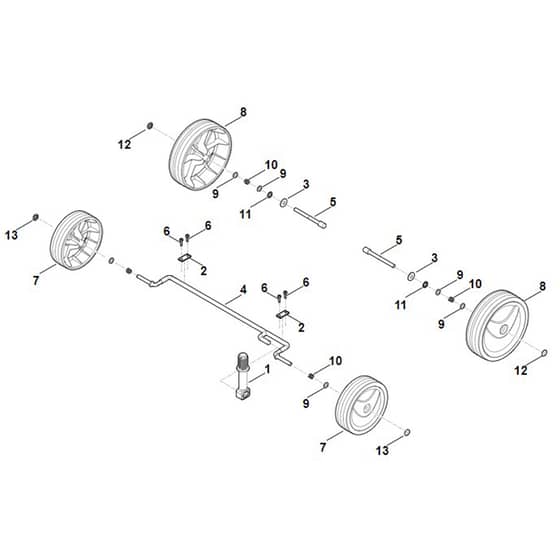

Viking LE240.0 - Chassis, Height Adjustment - Parts Diagram

Description

Viking LE240.0 - Chassis, Height Adjustment - Parts Diagram

	Part No.	Details
1	ST6291 703 1000 Available to backorder	Spindle (height adjustment)	£4.09 £3.41
2	ST6291 704 1200 Available to backorder	Axle guard	£3.52 £2.93
3	ST6291 716 0210 Available to backorder	Washer	£1.60 £1.33
4	ST6291 740 7400 Available to backorder	Front axle	£26.17 £21.81
5	ST6291 763 3100 Available to backorder	Whell bolt	£8.09 £6.74
7	ST6311 700 0492 Available to backorder	Wheel (Contains 13)	£10.34 £8.62
8	ST6311 700 0497 Available to backorder	Wheel (Contains 12)	£12.06 £10.05
9	ST6311 708 9300 Available to backorder	Washer	£1.14 £0.95
10	ST6311 764 2400 Available to backorder	Compression spring	£1.14 £0.95
11	ST9991 003 0548 Available to backorder	Clamping ring 8	£1.72 £1.43
12	ST9991 003 0648 Available to backorder	Clamping ring 8	£1.72 £1.43
