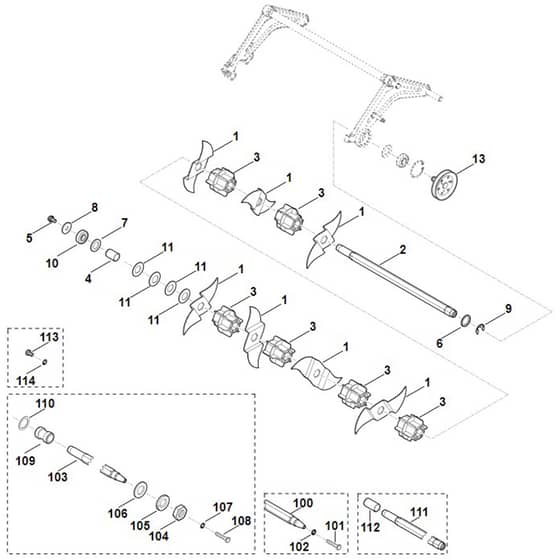

Viking LB540 - Scarifying Unit - Parts Diagram

Viking LB540 - Scarifying Unit - Parts Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking LB540 - Scarifying Unit - Parts Diagram

Viking LB540 - Scarifying Unit - Parts Diagram

Description

Viking LB540 - Scarifying Unit - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	-1		ST6290 700 3501 Available to backorder	Shaft assy. (Contains 1+3+5+8+10+12+103-110)		£134.90 £112.42
	0		ST6290 007 1000 Available to backorder	Set of Blade (Contains 1+3)		£41.26 £34.38
	1		ST6290 700 3503 Available to backorder	Shaft assy. (Contains 1-13)		£149.60 £124.67
	1		ST6290 702 0100 Available to backorder	Blade		£6.60 £5.50
	2		ST6290 702 0705 Available to backorder	Shaft		£97.36 £81.13
	3		ST6290 702 4400 Available to backorder	Distance piece		£19.36 £16.13
	4		ST6290 702 5905 Available to backorder	Distance sleeve		£9.14 £7.62
	5		ST9025 313 5000 Available to backorder	Screw M8x16		£1.00 £0.83
	6		ST6290 711 5800 Available to backorder	Washer		£1.54 £1.28
	7		ST9294 929 0330 Available to backorder	Washer 21		£0.76 £0.63
	8		ST9307 021 0180 Available to backorder	Washer 84		£0.48 £0.40
	9		ST9460 624 1500 Available to backorder	E-clip 15		£0.48 £0.40
	10		ST9503 003 5330 Available to backorder	Grooved ball bearing 6003-2RS		£7.26 £6.05
	11		ST9485 648 2222 Available to backorder	Cup spring 40x204x1		£1.32 £1.10
	13		ST6290 700 2501 Available to backorder	V-belt pulley		£43.00 £35.83
	106		ST9291 021 0330 Available to backorder	Washer 21		£0.88 £0.73
	107		ST9460 624 4030 Available to backorder	E-clip 8.4		£0.48 £0.40
	108		ST9007 318 1901 Available to backorder	Hexagon head screw M8LHx40		£1.42 £1.18
	110		ST9296 021 1712 Available to backorder	Washer 25x35x0.3		£0.83 £0.69
	111		ST6290 702 0702 Available to backorder	Shaft		£97.36 £81.13
	113		ST9008 318 1800 Available to backorder	Hexagon head screw M8x20		£1.00 £0.83
