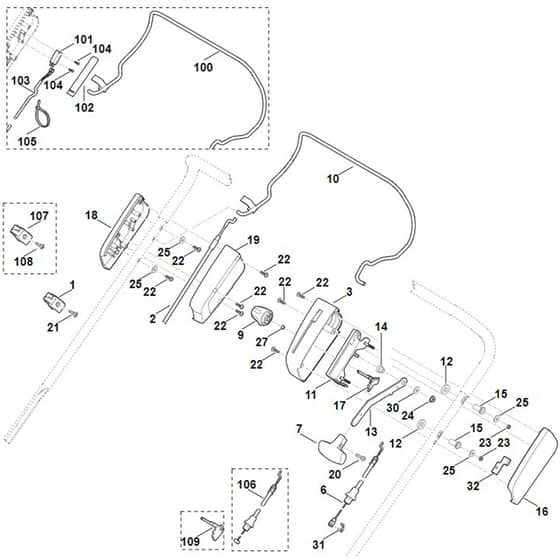

Viking LB540 - Handle Upper Part - Parts Diagram

Name: Viking LB540 - Handle Upper Part - Parts Diagram
SKU: lb540_handle_upper_part-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking LB540 - Handle Upper Part - Parts Diagram

Description

Viking LB540 - Handle Upper Part - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST0000 760 3811 Available to backorder	Cable guide (Contains 21)	£9.24 £7.70
2	ST6357 700 7510 Available to backorder	Cable	£17.06 £14.22
2	ST6290 700 7511 Available to backorder	Cable	£24.42 £20.35
3	ST6290 182 1305 Available to backorder	Housing half	£11.66 £9.72
6	ST6290 700 7590 Available to backorder	Cable (Contains 31)	£24.64 £20.53
7	ST6290 703 6600 Available to backorder	Knob	£10.90 £9.08
9	ST6290 708 4300 Available to backorder	Rotary handle	£14.20 £11.83
10	ST6290 760 1501 Available to backorder	Switch lever	£24.52 £20.43
11	ST6290 760 4200 Available to backorder	Bracket	£41.36 £34.47
12	ST6290 763 0900 Available to backorder	Washer	£1.32 £1.10
13	ST6290 763 2900 Available to backorder	Adjusting lever	£32.56 £27.13
14	ST6290 763 3010 Available to backorder	Bearing bushing	£5.38 £4.48
15	ST6290 763 3400 Available to backorder	Bushing	£10.90 £9.08
16	ST6290 764 0600 Available to backorder	Housing half	£7.04 £5.87
18	ST6356 182 1302 Available to backorder	Housing half	£6.50 £5.42
19	ST6290 182 1310 Available to backorder	Housing half	£9.14 £7.62
20	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.76 £0.63
20	ST9039 488 0958 In stock	Self-tapping screw M5x10	£0.76 £0.63
21	ST9039 488 0984 Available to backorder	Self-tapping screw M5x16	£0.88 £0.73
22	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.88 £0.73
23	ST9212 260 0705 In stock	Hexagon nut M5	£0.34 £0.28
24	ST9220 260 8490 Available to backorder	Hexagon nut M6	£0.48 £0.40
25	ST9307 020 0120 Available to backorder	Washer 53	£0.48 £0.40
27	ST9455 621 0570 In stock	Circlip 8x0.8	£0.72 £0.60
30	ST9298 021 3881 Available to backorder	Washer 64	£0.48 £0.40
31	ST9666 003 9050 Available to backorder	Bolt	£0.76 £0.63

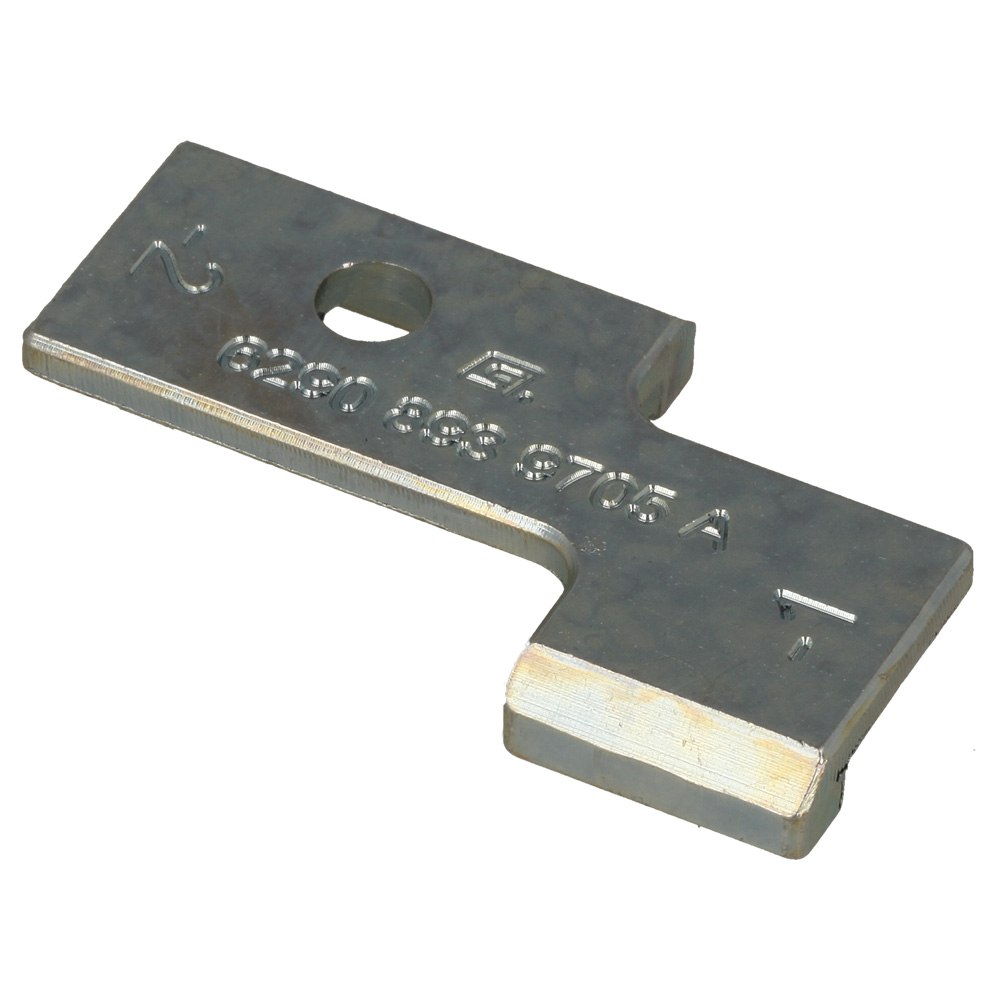

32	ST6290 893 9705 In stock	Plate (height stop)	Was £19.78 £16.48 Special Price £13.76 £11.47
101	ST6001 430 0210 Available to backorder	Stop switch	£5.72 £4.77
103	ST6290 440 1100 Available to backorder	Short circuit wire	£35.04 £29.20
105	ST0000 988 9206 Available to backorder	cable tie	£0.48 £0.40
106	ST6290 700 7500 Available to backorder	Cable	£27.50 £22.92
107	ST0000 760 3810 Available to backorder	Cable guide (Contains 108)	£6.46 £5.38
108	ST9075 478 4117 Available to backorder	Pan head screw IS D5x16	£0.88 £0.73
109	ST6290 708 6205 Available to backorder	Notched quadrant	£7.70 £6.42
