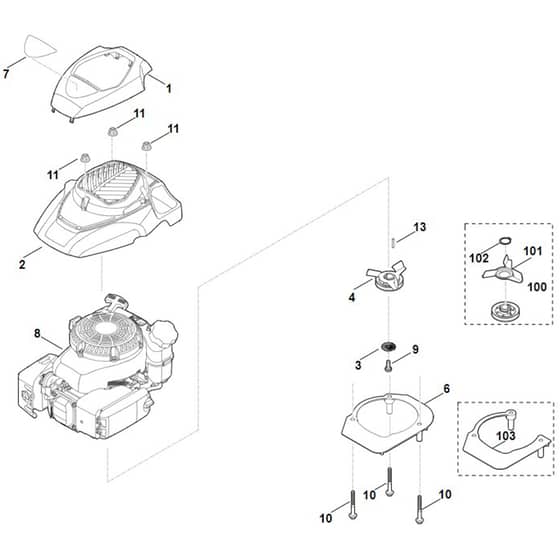

Viking LB540.1 - Engine - Parts Diagram

Part No. lb540_1_engine-group

Description

	Part No.	Details
1	ST0000 082 0419 Available to backorder	Cover upper section	£16.06 £13.38
2	ST0000 082 0424 Available to backorder	Cover lower section	£42.56 £35.47
3	ST0000 702 6600 In stock	Washer	£4.48 £3.73
6	ST6290 706 1502 Available to backorder	Insulating plate (heat insulation)	£36.08 £30.07
7	ST6290 967 3801 Available to backorder	Name plate LB 540	£4.68 £3.90
8	ST6290 011 1810 Available to backorder	xT-675 (xT675-3052)	£325.64 £271.37
8	ST6290 011 1812 Available to backorder	xT-675 (xT675-3052)	£369.60 £308.00
9	ST9008 319 9066 Available to backorder	Hexagon head screw 3/8"x1"	£1.37 £1.14
10	ST9039 488 9005 Available to backorder	Self-tapping screw 3/8"x85	£2.96 £2.47
11	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.68 £0.57
13	ST9471 435 0861 Available to backorder	Key 476x476x30	£1.82 £1.52
100	ST6290 700 2512 Available to backorder	V-belt pulley	£51.11 £42.59
101	ST6290 704 3400 Available to backorder	Fan wheel	£19.69 £16.41
102	ST9455 621 3321 Available to backorder	Circlip 30x1.5	£1.26 £1.05
