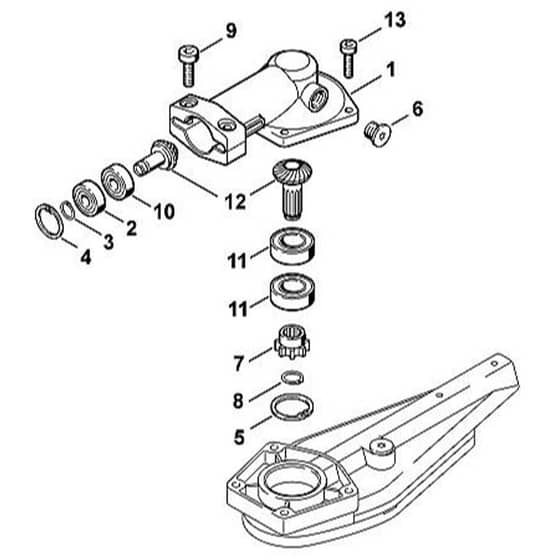

Viking HG100 - Gear Head - Parts Diagram

Viking HG100 - Gear Head - Parts Diagram

Description

Viking HG100 - Gear Head - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	-1		ST4230 640 0100 Available to backorder	Gear box 0° (Contains 45629)		£129.00 £107.50
	1		ST4230 640 0556 Available to backorder	Gear housing (Contains 9)		£74.62 £62.18
	3		ST9455 621 0750 In stock	Circlip 9x1		£0.72 £0.60
	4		ST9456 621 2660 In stock	Circlip 24x1.2		£1.00 £0.83
	5		ST9456 621 3100 Available to backorder	Circlip 28x1.2		£1.22 £1.02
	6		ST4226 641 6500 In stock	Plug screw		£2.54 £2.12
	7		ST4230 642 0405 In stock	Drive pinion		£13.10 £10.92
	8		ST9455 621 0850 In stock	Circlip 10x1		£0.72 £0.60
	9		ST9022 341 1300 In stock	Pan head screw IS M6x20		£0.88 £0.73
	10		ST9503 003 9850 Available to backorder	Grooved ball bearing 609		£10.00 £8.33
	10		ST9503 003 9853 Available to backorder	Grooved ball bearing 609-2Z		£11.98 £9.98
	11		ST9503 003 5190 Available to backorder	Grooved ball bearing 6001-2RS		£13.30 £11.08
	12		ST4230 640 7300 Available to backorder	Set of pinions		£48.34 £40.28
	13		ST9022 371 1020 In stock	Pan head screw IS M5x20		£0.88 £0.73
