Viking HEL700 - Gear Head Hg 945 - Parts Diagram

Description

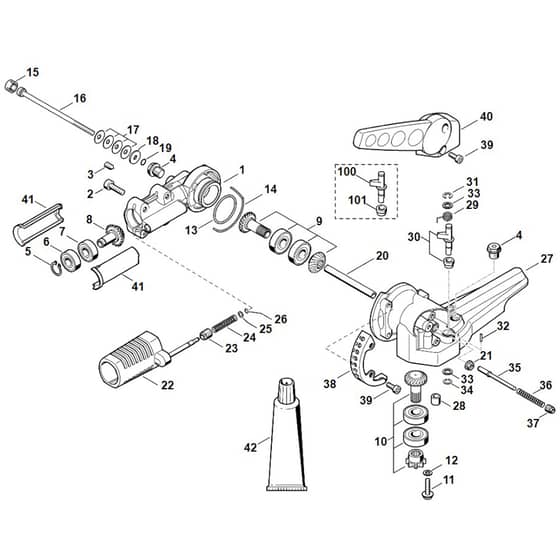

Viking HEL700 - Gear Head Hg 945 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	ST6911 640 7300 Available to backorder	Set of pinions (Contains 45570)	£94.60 £78.83
1	ST6911 640 0500 Available to backorder	Gear housing (Contains 2-4 + 41)	£69.86 £58.22
2	ST9022 341 1300 In stock	Pan head screw IS M6x20	£0.88 £0.73
3	ST0000 953 1001 In stock	Stud	£2.32 £1.93
4	ST4119 713 6500 In stock	Plug screw	£3.08 £2.57
5	ST9455 621 0750 In stock	Circlip 9x1	£0.72 £0.60
6	ST9503 003 9856 Available to backorder	Grooved ball bearing	£11.98 £9.98
7	ST9503 003 9850 Available to backorder	Grooved ball bearing 609	£10.00 £8.33
11	ST0000 951 1100 In stock	Screw	£1.54 £1.28
12	ST0000 958 0520 Available to backorder	Washer	£1.10 £0.92
13	ST9645 945 7908 In stock	Sealing ring	£0.76 £0.63
14	ST4230 642 8200 Available to backorder	Ring	£2.08 £1.73
15	ST4230 641 7400 Available to backorder	Cap	£2.54 £2.12
16	ST9022 341 1170 Available to backorder	Screw	£1.98 £1.65
17	ST9485 648 0362 Available to backorder	Cup spring	£0.66 £0.55
18	ST0000 958 0527 Available to backorder	Washer	£1.32 £1.10
19	ST9645 945 7455 Available to backorder	O-ring 4.9x1.9	£0.48 £0.40
20	ST4230 641 9400 Available to backorder	Bearing bushing	£22.22 £18.52
21	ST9216 261 0700 In stock	Hexagon nut M5	£0.44 £0.37
22	ST6911 640 4500 Available to backorder	Lock (Contains 23 - 26)	£15.74 £13.12
23	ST4230 642 9010 Available to backorder	Screw sleeve	£1.66 £1.38
24	ST4230 641 3110 Available to backorder	Spring	£1.32 £1.10
25	ST9291 021 3861 Available to backorder	Washer 5.1x8.3x0.8	£0.48 £0.40
26	ST9461 620 0512 Available to backorder	E-clip	£0.48 £0.40
27	ST4230 640 0503 Available to backorder	Gear housing (Contains 4+28)	£84.70 £70.58
28	ST9513 003 1570 In stock	Needle cage 6x10x9	£7.04 £5.87
29	ST4230 708 4500 Available to backorder	Torsion spring	£1.32 £1.10
30	ST4230 700 6700 Available to backorder	Bolt	£5.62 £4.68
31	ST9460 624 0600 In stock	E-clip 6	£0.34 £0.28
32	ST9380 620 1090 Available to backorder	Roll pin 2x10	£0.48 £0.40
33	ST9298 021 3873 Available to backorder	Washer	£0.48 £0.40
34	ST9452 621 0155 Available to backorder	Circlips 7x06	£0.48 £0.40
35	ST4230 711 9200 Available to backorder	Pressure pin	£2.32 £1.93
36	ST4230 708 3300 Available to backorder	Spring	£1.32 £1.10
37	ST4230 708 2100 Available to backorder	Plug	£1.54 £1.28
38	ST4230 642 4600 Available to backorder	Perforated strip	£6.28 £5.23
39	ST9022 341 0961 Available to backorder	Spline screw IS-M5x12	£0.76 £0.63
40	ST4230 643 3502 Available to backorder	Adjusting lever	£15.74 £13.12
41	ST6911 641 5000 Available to backorder	Sleeve	£5.28 £4.40
42	ST0781 120 1117 In stock	Gearbox grease (80g tube)	£8.42 £7.02
