Viking HEL600 K - Electric Motor - Parts Diagram

Viking HEL600 K - Electric Motor - Parts Diagram

Part No. hel600_k_electric_motor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

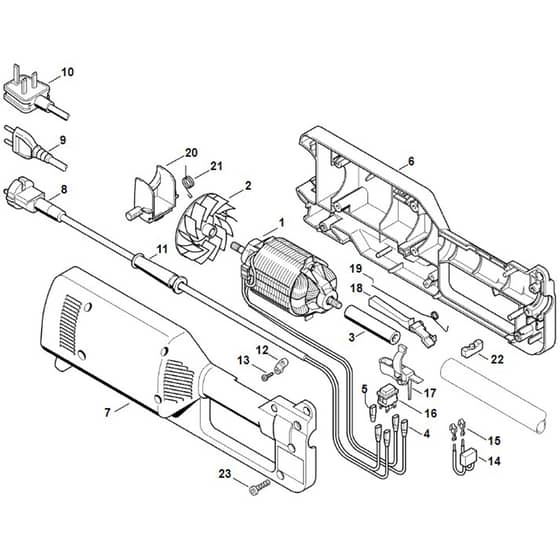

Viking HEL600 K - Electric Motor - Parts Diagram

Viking HEL600 K - Electric Motor - Parts Diagram

Description

Viking HEL600 K - Electric Motor - Parts Diagram

Ref.		Img.	Part No.	Details
	2		ST4803 086 0501 Available to backorder	Fan wheel		£4.16 £3.47
	4		ST0751 030 8958 Available to backorder	Terminal socket 4.8-1		£0.31 £0.26
	10		ST4808 440 2004 Available to backorder	Connecting lead GB (Contains 4+5+11)		£47.28 £39.40
	11		ST1204 431 2400 In stock	Cable protector		£3.07 £2.56
	12		ST1204 431 2500 Available to backorder	Cable clamp		£2.63 £2.19
	13		ST9074 478 3075 In stock	Pan head screw IS P4x19		£0.95 £0.79
	14		ST4803 605 1000 Available to backorder	Condenser (Contains 15)		£2.34 £1.95
	16		ST4803 430 0500 Available to backorder	Switch		£5.94 £4.95
	19		ST4808 791 8200 Available to backorder	Torsion spring		£1.37 £1.14
	21		ST4803 791 8200 Available to backorder	Torsion spring		£0.79 £0.66
	22		ST4803 792 2601 Available to backorder	Bolt		£2.23 £1.86
	23		ST9074 478 4435 In stock	Pan head screw IS P6x19		£0.92 £0.77

Description

Viking HEL600 K - Electric Motor - Parts Diagram
