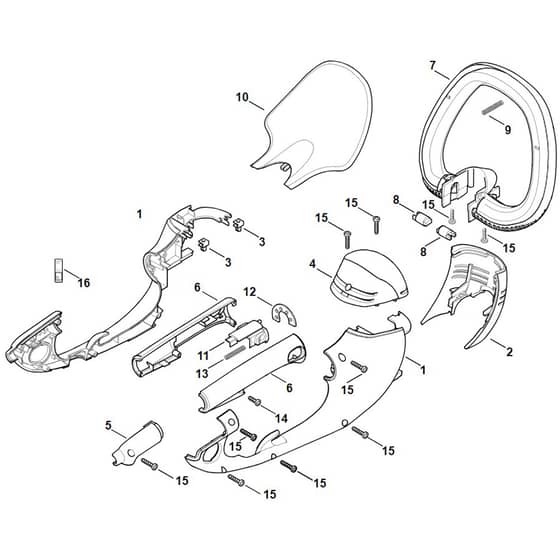

Viking HE715 - Housing, Operational Controls - Parts Diagram

Part No. he715_housing_operational_controls-group
Viking HE715 - Housing, Operational Controls - Parts Diagram
Viking HE715 - Housing, Operational Controls - Parts Diagram

Description

Viking HE715 - Housing, Operational Controls - Parts Diagram

Ref. Img. Part No. Details
  1 Engine housing assy.
Engine housing assy.
ST6460 600 0801
Available to backorder
Engine housing assy.
£10.97 £9.14

  2 Engine housing
Engine housing
ST6460 602 1210
Available to backorder
Engine housing
£23.11 £19.26

  3 Slip-on nut 40x25x5
Slip-on nut 40x25x5
ST9286 929 0030
Available to backorder
Slip-on nut 40x25x5
£1.14 £0.95

  5 Cap
Cap
ST6460 791 9200
Available to backorder
Cap
£0.79 £0.66

  7 Bow-type handle assy. (Contains 8+9)
Bow-type handle assy. (Contains 8+9)
ST6460 790 1200
Available to backorder
Bow-type handle assy. (Contains 8+9)
£25.86 £21.55

  8 Bolt
Bolt
ST6460 791 6000
Available to backorder
Bolt
£2.74 £2.28

  9 Compression spring
Compression spring
ST6460 716 2400
Available to backorder
Compression spring
£1.14 £0.95

  11 Slide
Slide
ST6460 792 7000
Available to backorder
Slide
£2.05 £1.71

  13 Compression spring
Compression spring
ST4812 716 2404
Available to backorder
Compression spring
£1.14 £0.95

  14 Self-tapping screw P4x12
Self-tapping screw P4x12
ST9104 003 8731
Available to backorder
Self-tapping screw P4x12
£0.79 £0.66

  15 Self-tapping screw P4x16
Self-tapping screw P4x16
ST9104 003 8736
Available to backorder
Self-tapping screw P4x16
£0.79 £0.66
