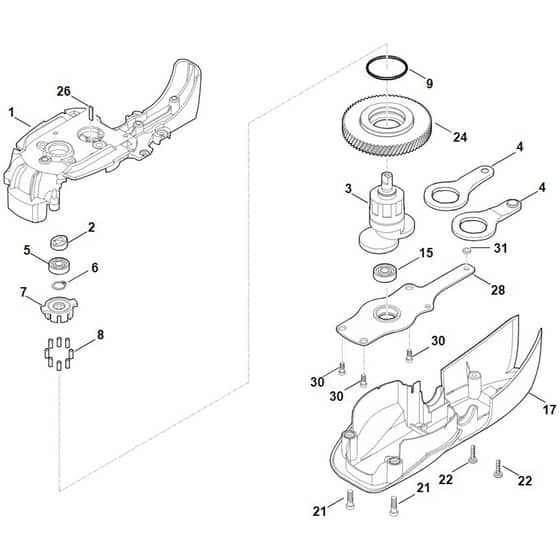

Viking HE515 - Reduction Gear Unit - Parts Diagram

Viking HE515 - Reduction Gear Unit - Parts Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking HE515 - Reduction Gear Unit - Parts Diagram

Viking HE515 - Reduction Gear Unit - Parts Diagram

Description

Viking HE515 - Reduction Gear Unit - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		ST6460 641 0306 Available to backorder	Gear housing (Contains 26)		£75.90 £63.25
	2		ST6460 711 7900 Available to backorder	Control disk		£2.54 £2.12
	3		ST6460 642 7900 Available to backorder	Cam		£38.62 £32.18
	4		ST6460 642 6510 Available to backorder	Connecting rod		£17.60 £14.67
	5		ST9503 003 9450 Available to backorder	Grooved ball bearing 627-2Z		£11.98 £9.98
	6		ST9455 621 1130 In stock	Circlip 12x1		£0.66 £0.55
	7		ST6460 162 3200 Available to backorder	Carrier		£7.16 £5.97
	8		ST9517 003 5055 Available to backorder	Cylindrical roller 4x10		£0.88 £0.73
	9		ST9645 945 7841 Available to backorder	O-ring 30x2		£0.76 £0.63
	15		ST9503 003 9371 Available to backorder	Grooved ball bearing 607-2Z		£10.24 £8.53
	17		ST6460 602 0411 Available to backorder	Cover		£12.54 £10.45
	21		ST9039 488 0984 Available to backorder	Self-tapping screw M5x16		£0.88 £0.73
	22		ST9104 003 8736 Available to backorder	Self-tapping screw P4x16		£0.76 £0.63
	24		ST6460 640 7606 Available to backorder	Spur gear assy. (Contains 9)		£34.40 £28.67
	26		ST6460 642 5100 Available to backorder	Support plate		£2.20 £1.83
	28		ST6460 642 4700 Available to backorder	Bearing plate		£22.00 £18.33
	30		ST9039 488 0672 Available to backorder	Self-tapping screw M4x14		£0.76 £0.63
	31		ST9309 021 0110 Available to backorder	Washer 53		£0.48 £0.40
