Viking HE515 - Electric Motor, Switching System - Parts Diagram

Description

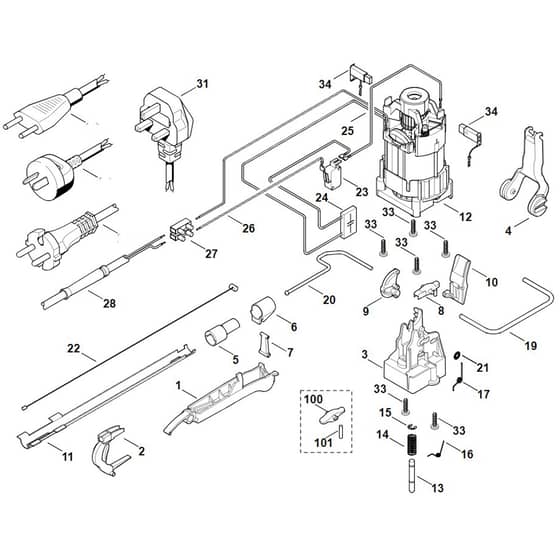

Viking HE515 - Electric Motor, Switching System - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	ST6460 792 8800 Available to backorder	Switch lever	£7.18 £5.98
2	ST6460 792 8805 Available to backorder	Switch lever	£4.18 £3.48
3	ST6460 432 1900 Available to backorder	Insert	£6.38 £5.32
4	ST6460 435 2401 Available to backorder	Switch lever	£12.76 £10.63
5	ST6460 798 0300 Available to backorder	Slider	£2.93 £2.44
6	ST6460 798 0305 Available to backorder	Slider	£2.54 £2.12
7	ST6460 435 7000 Available to backorder	Lever	£2.78 £2.32
8	ST6460 007 1031 Available to backorder	Set lever with pin	£3.74 £3.12
9	ST6460 435 7200 Available to backorder	Rocker arm	£2.74 £2.28
10	ST6460 435 7210 Available to backorder	Rocker arm	£3.20 £2.67
11	ST6460 792 1000 Available to backorder	Support	£8.14 £6.78
13	ST6460 642 3400 Available to backorder	Coupling pin	£0.88 £0.73
14	ST6010 647 2400 Available to backorder	Compression spring 7x22x08	£1.10 £0.92
15	ST9460 624 0320 In stock	E-clip 3.2	£0.47 £0.39
16	ST6460 716 5610 Available to backorder	Torsion spring	£1.10 £0.92
17	ST6460 716 5600 Available to backorder	Torsion spring	£1.32 £1.10
19	ST6460 711 8601 Available to backorder	Bow	£2.42 £2.02
20	ST6460 711 8610 Available to backorder	Bow	£3.00 £2.50
21	ST9991 003 0543 Available to backorder	Clamping ring 3	£1.76 £1.47
22	ST6460 790 2400 Available to backorder	Bowden cable	£15.80 £13.17
23	ST4812 435 0302 Available to backorder	Switch	£6.50 £5.42
24	ST6460 440 3000 Available to backorder	Wiring harness	£10.86 £9.05
25	ST6460 440 1905 Available to backorder	Lead 160mm	£3.08 £2.57
26	ST6460 440 1900 Available to backorder	Lead 295mm	£3.37 £2.81
27	ST6010 431 3000 Available to backorder	Terminal block	£2.54 £2.12
28	ST6010 431 2400 Available to backorder	Cable protector	£2.32 £1.93
31	ST6010 440 2012 Available to backorder	Connecting lead GB	£26.08 £21.73
33	ST9104 003 8736 Available to backorder	Self-tapping screw P4x16	£0.76 £0.63
34	ST6010 007 1049 In stock	Set Carbon brush	£15.26 £12.72
