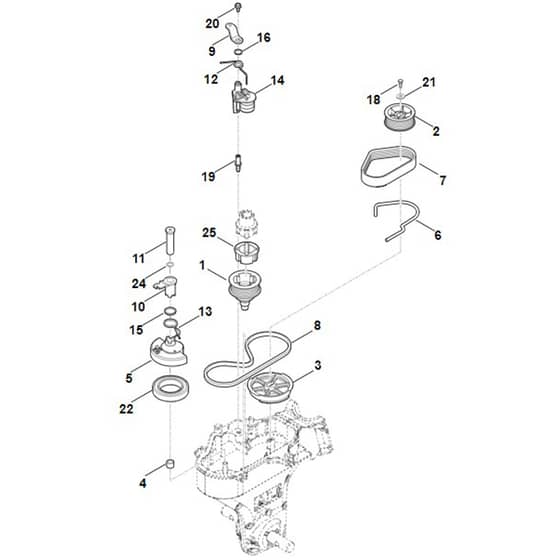

Viking HB685.1 - Drive - Parts Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking HB685.1 - Drive - Parts Diagram

Viking HB685.1 - Drive - Parts Diagram

Description

Viking HB685.1 - Drive - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	3		ST6241 711 1220 Available to backorder	V-belt pulley		£43.12 £35.93
	4		ST6241 711 2400 Available to backorder	Bushing		£6.04 £5.03
	5		ST6241 711 3901 Available to backorder	Belt guide		£10.34 £8.62
	6		ST6241 711 3910 Available to backorder	Belt guide		£12.44 £10.37
	8		ST6241 711 5010 Available to backorder	V-belt		£19.70 £16.42
	9		ST6241 711 7401 Available to backorder	Bolt lever		£3.74 £3.12
	10		ST6241 711 7411 Available to backorder	Bolt lever		£2.54 £2.12
	11		ST6241 711 8500 Available to backorder	Bolt		£10.90 £9.08
	12		ST6241 716 5600 Available to backorder	Torsion spring		£1.88 £1.57
	13		ST6241 716 5610 Available to backorder	Torsion spring		£1.88 £1.57
	14		ST6241 740 5385 Available to backorder	Bolt lever		£17.60 £14.67
	15		ST6241 992 5521 Available to backorder	Sealing ring		£0.66 £0.55
	16		ST6241 992 5531 Available to backorder	Sealing ring 175x27		£0.56 £0.47
	18		ST9008 318 1281 Available to backorder	Hexagon head screw M6x16		£0.88 £0.73
	19		ST6241 716 0405 Available to backorder	Screw		£2.98 £2.48
	20		ST9039 488 0996 Available to backorder	Self-tapping screw M6x12		£0.76 £0.63
	21		ST9307 021 0140 In stock	Washer 64		£0.34 £0.28
	22		ST9503 003 5906 Available to backorder	Grooved ball bearing 6010-2RS		£12.98 £10.82
	24		ST9645 945 7525 Available to backorder	O-ring 12x2		£0.56 £0.47

Description

Viking HB685.1 - Drive - Parts Diagram
