Viking HB585.1 - Motor-Engine Cover - Parts Diagram

Description

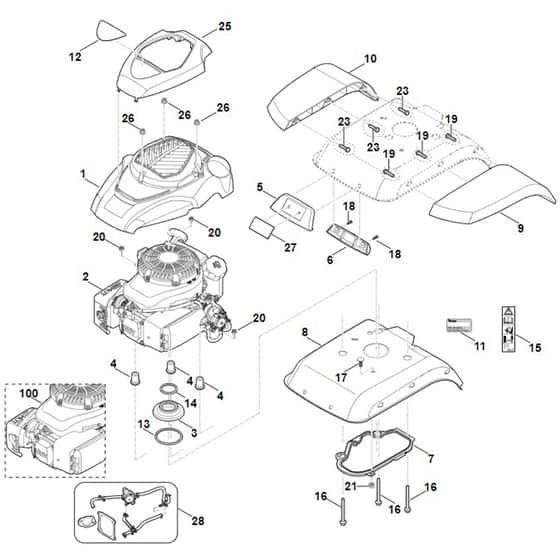

Viking HB585.1 - Motor-Engine Cover - Parts Diagram

	Part No.	Details
1	ST0000 082 0424 Available to backorder	Cover lower section	£42.56 £35.47
3	ST6241 716 1900 Available to backorder	Sealing ring	£7.61 £6.34
4	ST6241 716 2800 Available to backorder	Distance sleeve	£7.97 £6.64
5	ST6241 820 1100 Available to backorder	Handle (Contains 27)	£7.51 £6.26
6	ST6241 717 1205 Available to backorder	Handle	£13.55 £11.29
7	ST6241 719 0206 Available to backorder	Gasket	£7.40 £6.17
8	ST6241 717 3105 Available to backorder	Cover plate	£86.40 £72.00
9	ST6242 820 0200 Available to backorder	Left protector strip (Contains 19)	£61.45 £51.21
10	ST6242 820 0205 Available to backorder	Right protector strip (Contains 23)	£60.86 £50.72
11	ST6241 967 0121 Available to backorder	Model plate HB 585.1	£2.20 £1.83
11	ST0000 967 3453 Available to backorder	Warning sign with machine number	£2.15 £1.79
12	ST6241 967 3820 Available to backorder	Name plate HB 585	£4.68 £3.90
13	ST6241 992 5500 Available to backorder	Sealing ring 73x5	£1.37 £1.14
14	ST6241 992 5510 Available to backorder	Sealing ring 42x5	£1.03 £0.86
15	ST6241 967 4425 Available to backorder	Label	£2.15 £1.79
16	ST9018 318 2020 Available to backorder	Hexagon head screw M8x85	£2.63 £2.19
17	ST9027 319 1830 Available to backorder	Flat head screw M8x25	£1.26 £1.05
18	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.95 £0.79
19	ST9104 003 9984 Available to backorder	Hexagon head screw P8x30	£1.37 £1.14
20	ST9214 320 1105 In stock	Lock nut M8	£0.68 £0.57
21	ST9216 261 1100 In stock	Hexagon nut M8	£0.79 £0.66
25	ST0000 082 0419 Available to backorder	Cover upper section	£16.06 £13.38
26	ST9216 261 0901 Available to backorder	Hexagon nut M6	£0.68 £0.57
27	ST0000 967 1000 In stock	Plate	£4.85 £4.04
28	ST0002 007 1019 Available to backorder	Conversion kit (petrol pump)	£100.08 £83.40
