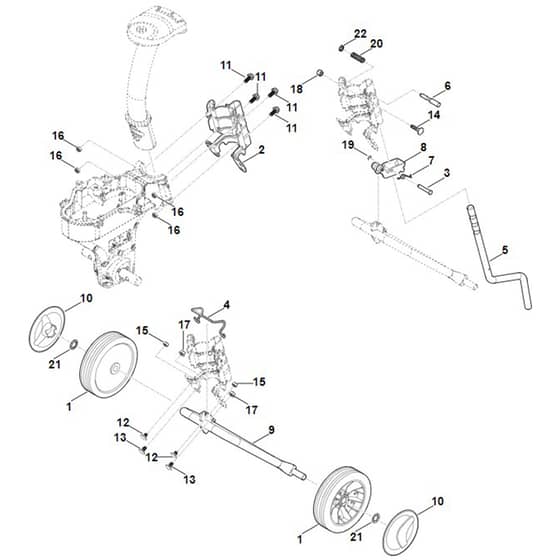

Viking HB585.1 - Chassis - Parts Diagram

Viking HB585.1 - Chassis - Parts Diagram

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking HB585.1 - Chassis - Parts Diagram

Viking HB585.1 - Chassis - Parts Diagram

Description

Viking HB585.1 - Chassis - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	1		ST6005 704 0801 Available to backorder	Wheel		£16.84 £14.03
	2		ST6241 710 4510 Available to backorder	Support		£59.96 £49.97
	3		ST6241 711 8515 Available to backorder	Bolt		£6.60 £5.50
	4		ST6241 711 9100 Available to backorder	Spring		£4.40 £3.67
	5		ST6241 716 1401 Available to backorder	Brake spur		£43.78 £36.48
	6		ST6241 716 2000 Available to backorder	Bolt		£5.50 £4.58
	7		ST6241 716 5606 Available to backorder	Torsion spring		£1.54 £1.28
	8		ST6241 740 1900 Available to backorder	Detent		£10.90 £9.08
	9		ST6241 740 7400 In stock	Axle		£37.40 £31.17
	10		ST6340 704 0301 Available to backorder	Wheel cap		£5.62 £4.68
	11		ST9018 318 1802 Available to backorder	Hexagon head screw M8x20		£1.00 £0.83
	12		ST9027 068 1750 Available to backorder	Flat head screw M8x12		£0.85 £0.71
	13		ST9027 068 1770 Available to backorder	Flat head screw M8x16		£1.00 £0.83
	14		ST9027 319 1880 Available to backorder	Flat head screw M8x35		£1.42 £1.18
	15		ST9214 261 1105 In stock	Lock nut M8		£0.48 £0.40
	17		ST9216 261 1100 Available to backorder	Hexagon nut M8		£0.76 £0.63
	18		ST9241 288 1980 Available to backorder	Cap nut M8		£0.76 £0.63
	19		ST9460 624 0600 In stock	E-clip 6		£0.34 £0.28
	20		ST9691 003 2607 Available to backorder	Compression spring 105x13x40		£1.54 £1.28
	21		ST9991 003 0556 In stock	Clamping ring 16		£1.66 £1.38
	22		ST9991 003 0647 Available to backorder	Clamping ring 7		£1.66 £1.38
