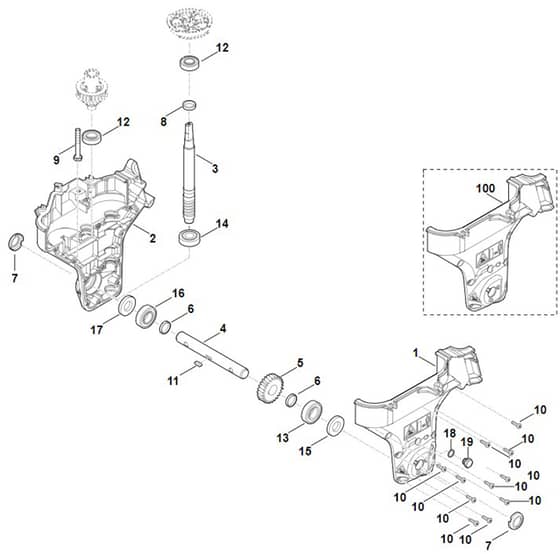

Viking HB445.2 R - Gear Head - Parts Diagram

Part No. hb445_2_r_gear_head-group

Description

	Part No.	Details
-1	ST6241 640 0591 Available to backorder	Gearbox housing assembly (Contains E 1-6 + 8-18)	£289.08 £240.90
0	ST6241 007 1006 Available to backorder	Set of seals (Contains C 3+7+13+14 + D 15+16+23+24 + E 8+15+17)	£47.21 £39.34
1	ST6241 640 0493 Available to backorder	Complete left gearbox housing (Contains 13+15+18+19)	£89.64 £74.70
2	ST6241 640 0497 Available to backorder	Complete right gearbox housing (Contains 16+17)	£91.80 £76.50
3	ST6241 642 0393 Available to backorder	Worm shaft with worm gear set (Contains 5)	£157.32 £131.10
4	ST6241 642 2600 Available to backorder	Shaft	£70.92 £59.10
6	ST6241 642 8000 Available to backorder	Spacer ring	£4.32 £3.60
7	ST6241 643 2701 In stock	Guard plate	£2.96 £2.47
8	ST9640 003 2815 Available to backorder	Oil seal WAS25x32x7	£11.03 £9.19
9	ST9007 318 2510 Available to backorder	Hexagon head screw M10x75	£2.74 £2.28
10	ST9039 488 1288 Available to backorder	Self-tapping screw M6x20	£0.91 £0.76
11	ST9470 435 2260 Available to backorder	Key 6x6x18	£1.82 £1.52
12	ST9503 003 5446 Available to backorder	Grooved ball bearing 6004-2RS	£8.54 £7.12
13	ST9503 003 6841 In stock	Grooved ball bearing 6205-2RS	£15.10 £12.58
14	ST9504 003 0710 Available to backorder	Angular ball bearing 7304B-2RS	£24.00 £20.00
15	ST9630 003 2929 Available to backorder	Oil seal AS25x47x7 WAG	£11.03 £9.19
18	ST6170 029 0500 Available to backorder	Gasket	£1.46 £1.22
19	ST6170 028 1100 Available to backorder	Plug	£5.00 £4.17
