Viking HB445.0 R - Gear Head - Parts Diagram

Description

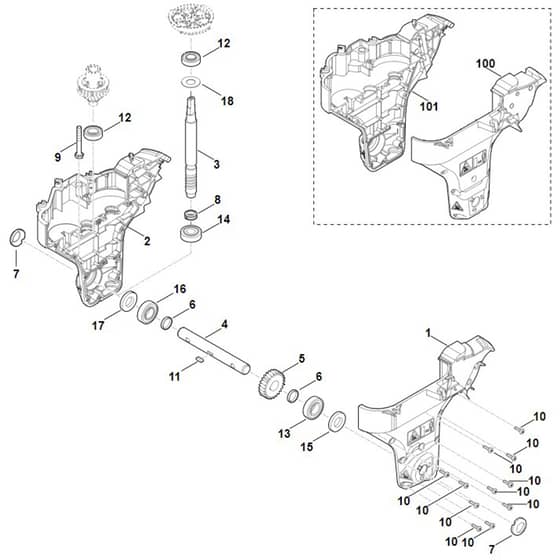

Viking HB445.0 R - Gear Head - Parts Diagram

	Part No.	Details
0	ST6241 007 1890 Available to backorder	Repair kit (Gear box) (Contains 3-6+8+11-18 + G 3)	£129.84 £108.20
0	ST6241 007 1001 Available to backorder	Set of seals (Contains C 3+7+13+14 + D 15+16+26 + E 8+15+17)	£45.41 £37.84
0	ST6241 640 0485 Available to backorder	Repair kit - Gear housing (Contains B 3+12+13 + E 1+2)	£214.20 £178.50
1	ST6241 640 0491 Available to backorder	Complete left gearbox housing (Contains 13+15)	£102.36 £85.30
2	ST6241 640 0496 Available to backorder	Complete right gearbox housing (Contains 16+17)	£102.36 £85.30
3	ST6241 642 0392 Available to backorder	Worm shaft with worm gear set (Contains 5)	£160.56 £133.80
3	ST6241 642 0390 Available to backorder	Worm shaft with worm gear set (Contains 5)	£157.32 £131.10
4	ST6241 642 2600 Available to backorder	Shaft	£70.92 £59.10
6	ST6241 642 8000 Available to backorder	Spacer ring	£4.32 £3.60
7	ST6241 643 2701 In stock	Guard plate	£2.96 £2.47
8	ST6241 992 5540 Available to backorder	Sealing ring 18x11	£1.37 £1.14
9	ST9007 318 2510 Available to backorder	Hexagon head screw M10x75	£2.74 £2.28
10	ST9039 488 1288 Available to backorder	Self-tapping screw M6x20	£0.91 £0.76
12	ST9503 003 5446 Available to backorder	Grooved ball bearing 6004-2RS	£8.54 £7.12
13	ST9503 003 6841 In stock	Grooved ball bearing 6205-2RS	£15.10 £12.58
14	ST9504 003 0709 Available to backorder	Angular ball bearing 7204B-2RS	£19.91 £16.59
15	ST9630 003 2929 Available to backorder	Oil seal AS25x47x7 WAG	£11.03 £9.19
18	ST9296 021 1687 In stock	Shim ring 20x28x03	£0.68 £0.57
