Viking GE 355.1 - Housing, Electric Motor - Parts Diagram

Name: Viking GE 355.1 - Housing, Electric Motor - Parts Diagram
SKU: ge_355_1_housing_electric_motor-group
Price: 0.29 GBP
Availability: InStock

Part No. ge_355_1_housing_electric_motor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking GE 355.1 - Housing, Electric Motor - Parts Diagram

Description

Viking GE 355.1 - Housing, Electric Motor - Parts Diagram

	Part No.	Details
-1	ST6011 007 1090 Available to backorder	Conversion kit (Electric motor) (Contains 6+12+15)	£210.96 £175.80
1	ST0000 967 7210 Available to backorder	Warning note	£2.15 £1.79
2	ST6011 708 7000 Available to backorder	Clamping ring	£3.31 £2.76
3	ST0000 992 5502 Available to backorder	Sealing ring	£1.03 £0.86
5	ST6005 435 0410 Available to backorder	Stop switch	£7.51 £6.26
6	ST0000 605 1015 Available to backorder	Condenser 25µF	£16.39 £13.66
6	ST0000 605 1010 Available to backorder	Condenser 20µF	£15.94 £13.28
7	ST6005 701 1620 Available to backorder	Insert	£2.40 £2.00
8	ST6008 608 3800 Available to backorder	Sleeve	£29.26 £24.38
9	ST6008 703 7300 Available to backorder	Pawl	£12.19 £10.16
10	ST6008 708 5700 Available to backorder	Bushing	£4.55 £3.79
11	ST6008 760 7402 Available to backorder	Insert	£70.92 £59.10

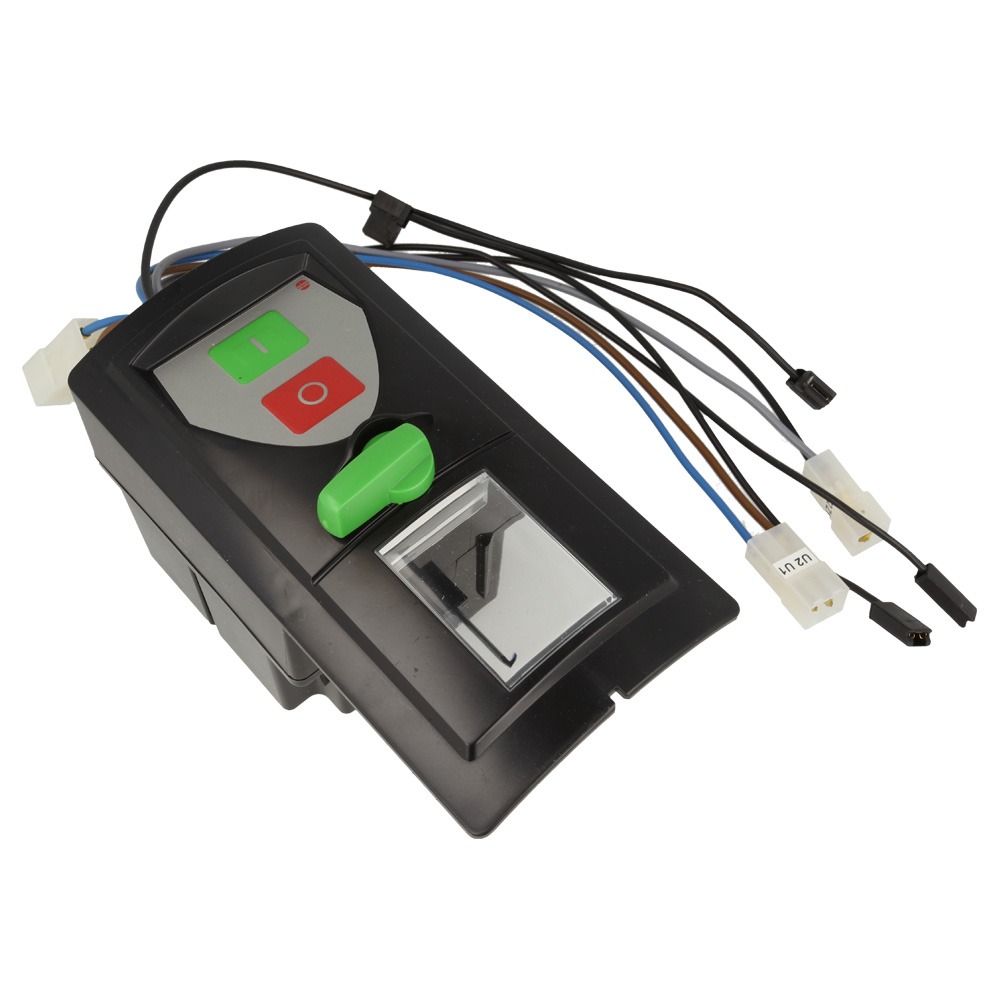

12	ST6011 430 0510 Available to backorder	Switch assy. (Contains 13)	£102.36 £85.30
12	ST6011 430 0520 Available to backorder	Switch assy. CH (Contains 13)	£102.36 £85.30
14	ST6011 440 2012 Available to backorder	Connecting lead GB (Contains 30)	£30.72 £25.60
15	ST6011 600 0211 Available to backorder	Electric motor 230V (25kW) (Contains 21)	£215.28 £179.40
15	ST6011 600 0220 Available to backorder	Electric motor 230V (20kW) (Contains 21)	£202.32 £168.60
16	ST6011 706 5601 Available to backorder	Engine hood	£62.03 £51.69
17	ST6011 780 4600 Available to backorder	Pointer (Contains 20)	£7.06 £5.88
19	ST0000 967 3453 Available to backorder	Warning sign with machine number	£2.15 £1.79
20	ST6011 967 4400 Available to backorder	Sticker (rotational direction)	£2.15 £1.79
21	ST6100 607 3010 Available to backorder	Fan wheel ATB	£21.06 £17.55
22	ST9008 318 1320 Available to backorder	Hexagon head screw M6x20	£0.91 £0.76
23	ST9025 313 5000 Available to backorder	Screw M8x16	£1.03 £0.86
24	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.79 £0.66
25	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.95 £0.79
26	ST9211 259 1100 Available to backorder	Hexagon nut M8	£0.58 £0.48
27	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
28	ST9322 630 0200 Available to backorder	Spring washer 10	£0.46 £0.38
29	ST9330 630 0180 Available to backorder	Shakeproof washer 8.4	£0.35 £0.29
30	ST0751 031 5004 Available to backorder	Fuse 13A	£4.68 £3.90
31	ST6011 967 4410 Available to backorder	Label	£2.15 £1.79
32	ST0751 010 7054 Available to backorder	Cable tie	£2.51 £2.09
