Viking GE 250 - Housing, Electric Motor - Parts Diagram

Name: Viking GE 250 - Housing, Electric Motor - Parts Diagram
SKU: ge_250_housing_electric_motor-group
Price: 0.29 GBP
Availability: InStock

Part No. ge_250_housing_electric_motor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking GE 250 - Housing, Electric Motor - Parts Diagram

Description

Viking GE 250 - Housing, Electric Motor - Parts Diagram

	Part No.	Details
1	ST6008 706 5601 Available to backorder	Engine hood	£62.03 £51.69

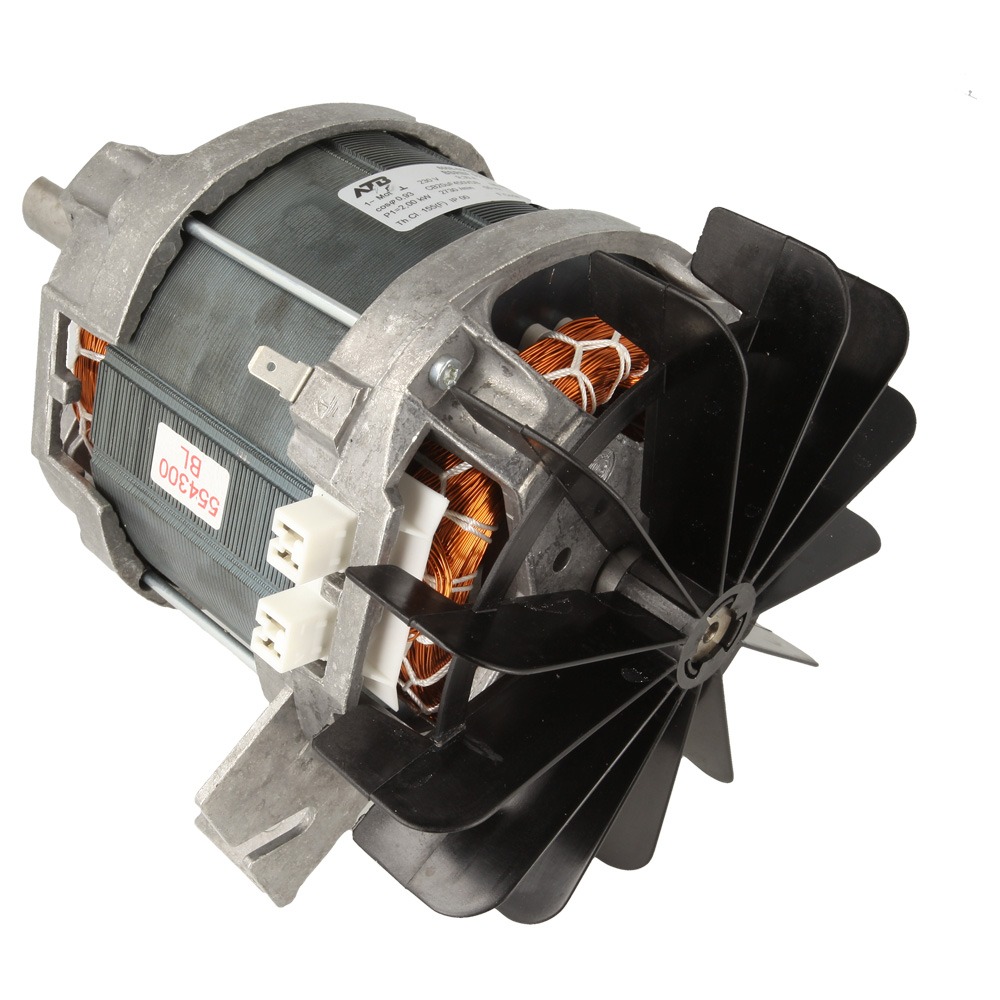

0	ST6008 007 1095 Available to backorder	Conversion kit (Electric motor) (Contains 2+5+6)	£192.48 £160.40

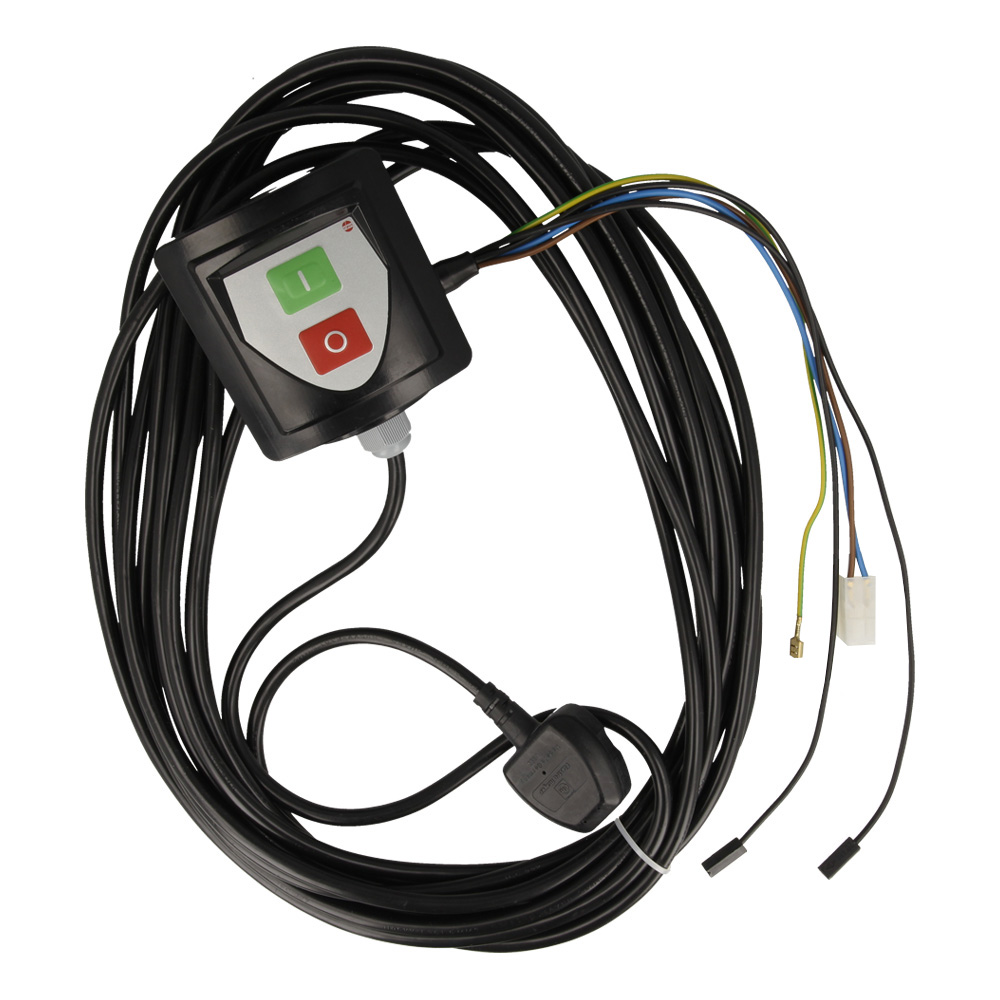

2	ST6008 430 0504 Available to backorder	Switch GB (Contains 27)	£122.16 £101.80

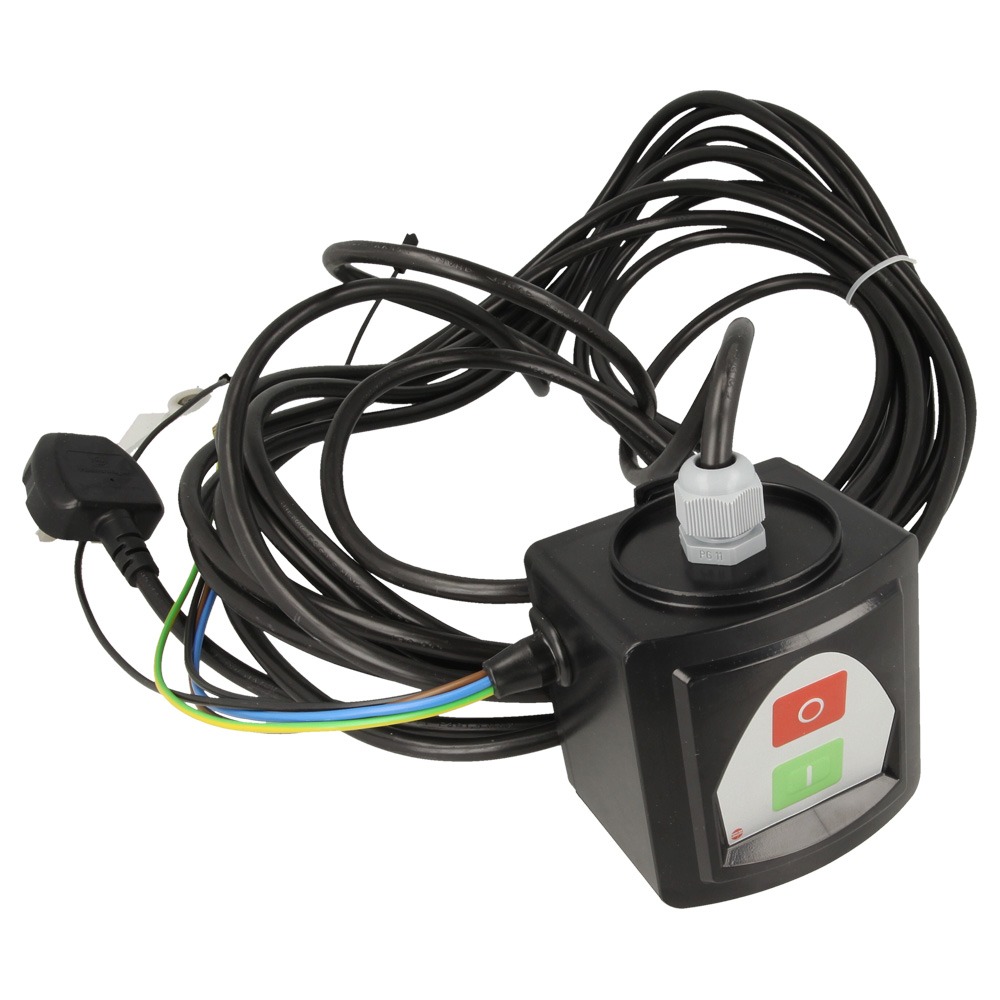

2	ST6008 430 0508 Available to backorder	Switch GB (Contains 27)	£135.36 £112.80
3	ST0751 010 7054 Available to backorder	Cable tie	£2.51 £2.09
4	ST6100 607 3010 Available to backorder	Fan wheel ATB	£21.06 £17.55
5	ST6008 600 0225 Available to backorder	Electric motor 230V (20kW) (Contains 4)	£202.32 £168.60
6	ST0000 605 1020 Available to backorder	Condenser 30µF	£17.52 £14.60
6	ST0000 605 1010 Available to backorder	Condenser 20µF	£15.94 £13.28
6	ST0000 605 1015 Available to backorder	Condenser 25µF	£16.39 £13.66
7	ST9330 630 0180 Available to backorder	Shakeproof washer 8.4	£0.35 £0.29
9	ST6008 760 7402 Available to backorder	Insert	£70.92 £59.10
10	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.95 £0.79
11	ST9025 313 5000 Available to backorder	Screw M8x16	£1.03 £0.86
12	ST0000 992 5502 Available to backorder	Sealing ring	£1.03 £0.86
13	ST6008 608 3800 Available to backorder	Sleeve	£29.26 £24.38
14	ST0751 040 4196 Available to backorder	Pipe clamp	£2.05 £1.71
15	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.79 £0.66
15	ST9075 478 4105 Available to backorder	Pan head screw IS D5x12	£0.48 £0.40
16	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
17	ST6005 435 0410 Available to backorder	Stop switch	£7.51 £6.26
18	ST6005 701 1620 Available to backorder	Insert	£2.40 £2.00
19	ST6008 703 7300 Available to backorder	Pawl	£12.19 £10.16
20	ST9322 630 0200 Available to backorder	Spring washer 10	£0.46 £0.38
21	ST6008 708 5700 Available to backorder	Bushing	£4.55 £3.79
22	ST9008 318 1320 Available to backorder	Hexagon head screw M6x20	£0.91 £0.76
23	ST0000 967 3606 Available to backorder	Warning note	£2.15 £1.79
26	ST0000 967 3453 Available to backorder	Warning sign with machine number	£2.15 £1.79
27	ST0751 031 5004 Available to backorder	Fuse 13A	£4.68 £3.90
28	ST0000 440 0710 Available to backorder	Adapter cable	£11.60 £9.67
102	ST9296 021 1712 Available to backorder	Washer 25x35x0.3	£0.95 £0.79
103	ST6000 709 2000 Available to backorder	Sealing ring	£0.83 £0.69
104	ST6008 600 0201 Available to backorder	Electric motor 230V (25kW) (Contains 4 + 105-107)	£228.00 £190.00
104	ST6008 600 0202 Available to backorder	Electric motor 230V (25kW) (Contains 4 + 105-107)	£313.92 £261.60
105	ST6007 605 1020 Available to backorder	Condenser 25µF	£24.29 £20.24
105	ST6008 605 1020 Available to backorder	Condenser 30µF	£25.37 £21.14
107	ST9211 259 1100 Available to backorder	Hexagon nut M8	£0.58 £0.48
