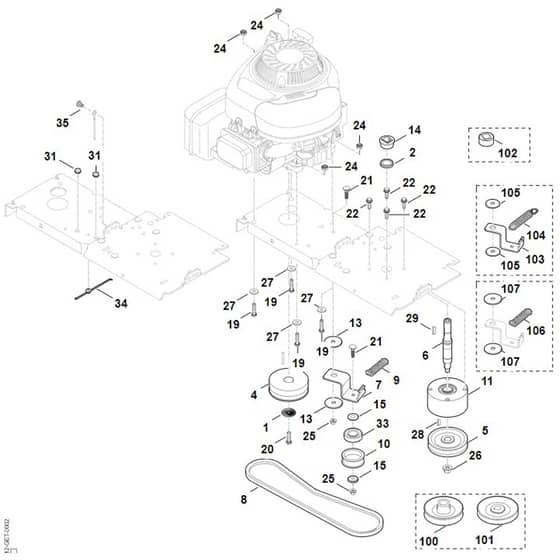

Viking GB 460 C - Drive - Parts Diagram

Viking GB 460 C - Drive - Parts Diagram
Viking GB 460 C - Drive - Parts Diagram

Description

Viking GB 460 C - Drive - Parts Diagram

Ref. Img. Part No. Details
  104 Belt tensioner set (Contains 7106107)
Belt tensioner set (Contains 7106107)
ST6012 007 1092
Available to backorder
Belt tensioner set (Contains 7106107)
£24.90 £20.75

  0 Belt tensioner set (Contains 7+9+13)
Belt tensioner set (Contains 7+9+13)
ST6012 007 1094
Available to backorder
Belt tensioner set (Contains 7+9+13)
£22.78 £18.98

  1 Washer
Washer
ST6395 702 6600
Available to backorder
Washer
£4.18 £3.48

  2 Sealing ring
Sealing ring
ST6000 709 2000
Available to backorder
Sealing ring
£0.76 £0.63

  4 V-belt pulley
V-belt pulley
ST6012 704 1010
Available to backorder
V-belt pulley
£126.50 £105.42

  6 Shaft
Shaft
ST6012 702 0700
Available to backorder
Shaft
£58.84 £49.03

  8 V-belt
V-belt
ST6012 704 2100
Available to backorder
V-belt
£28.48 £23.73

  9 Spring
Spring
ST6012 704 3902
Available to backorder
Spring
£5.18 £4.32

  10 Idler pulley (Contains 33)
Idler pulley (Contains 33)
ST6012 760 1200
Available to backorder
Idler pulley (Contains 33)
£23.20 £19.33

  14 Distance piece
Distance piece
ST6012 708 9811
Available to backorder
Distance piece
£9.80 £8.17

  15 Lockwasher
Lockwasher
ST6012 764 0500
Available to backorder
Lockwasher
£3.74 £3.12

  19 Hexagon head screw M8x40
Hexagon head screw M8x40
ST9008 318 1900
Available to backorder
Hexagon head screw M8x40
£1.42 £1.18

  19 Hexagon head screw M8x35
Hexagon head screw M8x35
ST9007 318 1880
Available to backorder
Hexagon head screw M8x35
£1.42 £1.18

  21 Flat head screw M8x35
Flat head screw M8x35
ST9027 319 1880
Available to backorder
Flat head screw M8x35
£1.42 £1.18

  22 Hexagon head screw M8x20
Hexagon head screw M8x20
ST9018 318 1801
Available to backorder
Hexagon head screw M8x20
£1.00 £0.83

  24 Lock nut M8
Lock nut M8
ST9214 320 1105
Available to backorder
Lock nut M8
£0.66 £0.55

  25 Hexagon nut M8
Hexagon nut M8
ST9216 261 1100
Available to backorder
Hexagon nut M8
£0.76 £0.63

  26 Hexagon nut M12
Hexagon nut M12
ST9216 261 1400
Available to backorder
Hexagon nut M12
£1.32 £1.10

  27 Washer 84
Washer 84
ST9291 020 0180
Available to backorder
Washer 84
£0.48 £0.40

  29 Key 6x6x40
Key 6x6x40
ST9470 435 2351
Available to backorder
Key 6x6x40
£2.54 £2.12

  31 Grommet
Grommet
ST0000 989 0615
Available to backorder
Grommet
£1.54 £1.28

  33 Grooved ball bearing 6205-2RS
Grooved ball bearing 6205-2RS
ST9503 003 6841
Available to backorder
Grooved ball bearing 6205-2RS
£14.08 £11.73

  34 Lead retainer
Lead retainer
ST6242 448 1200
Available to backorder
Lead retainer
£2.54 £2.12

  35 Self-tapping screw M8x20
Self-tapping screw M8x20
ST9039 488 1801
Available to backorder
Self-tapping screw M8x20
£1.00 £0.83

  101 V-belt pulley
V-belt pulley
ST6012 704 1000
Available to backorder
V-belt pulley
£112.20 £93.50

  103 Sheet metal holder
Sheet metal holder
ST6012 704 1300
Available to backorder
Sheet metal holder
£44.60 £37.17

  105 Distance piece
Distance piece
ST6012 708 9800
Available to backorder
Distance piece
£6.56 £5.47

  107 Distance piece
Distance piece
ST6012 708 9801
Available to backorder
Distance piece
£10.92 £9.10
