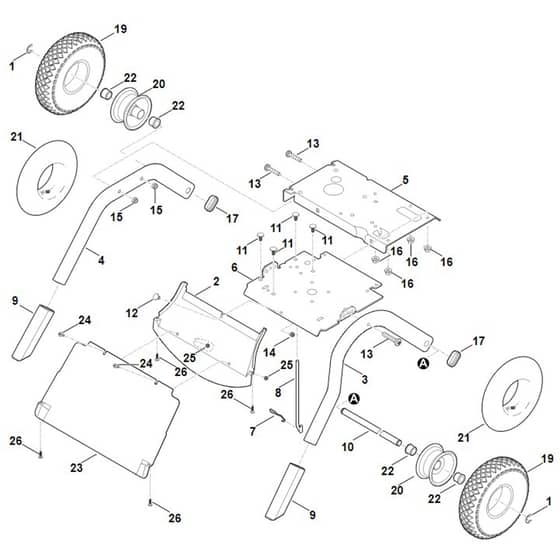

Viking GB 460.1 - Chassis - Parts Diagram

Description

Viking GB 460.1 - Chassis - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
-1	ST6012 700 0400 Available to backorder	Wheel assy. (Contains 19-22)	£49.60 £41.33
1	ST9460 624 1500 Available to backorder	E-clip 15	£0.48 £0.40
2	ST6012 701 4501 Available to backorder	Guiding plate	£37.62 £31.35
3	ST6012 703 2300 Available to backorder	Tubular stand left	£62.14 £51.78
4	ST6012 703 2310 Available to backorder	Tabular stand	£58.84 £49.03
5	ST6012 703 6201 Available to backorder	Bracket	£134.20 £111.83
6	ST6012 703 8900 Available to backorder	Plate	£133.10 £110.92
7	ST6012 706 0610 Available to backorder	Spring	£1.54 £1.28
8	ST6012 706 2800 Available to backorder	Bow	£11.12 £9.27
9	ST6012 007 1000 Available to backorder	Cap set	£23.66 £19.72
10	ST6012 763 2710 Available to backorder	Wheel axle	£38.94 £32.45
11	ST9027 068 1820 Available to backorder	Flat head screw M8x20	£1.00 £0.83
12	ST9027 318 1280 Available to backorder	Flat head screw M6x16	£0.88 £0.73
13	ST9039 488 1850 Available to backorder	Self-tapping screw M8x40	£1.42 £1.18
14	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
15	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
16	ST9216 261 1100 Available to backorder	Hexagon nut M8	£0.76 £0.63
17	ST9302 929 0900 Available to backorder	Plug 50x25	£1.42 £1.18
19	ST6012 704 9500 Available to backorder	Tyre 10x3-4	£35.54 £29.62
21	ST0000 704 6705 Available to backorder	Hose 10x3 - 4	£19.80 £16.50
22	ST6012 764 2700 Available to backorder	Flange sleeve	£8.48 £7.07
23	ST6012 701 4505 Available to backorder	Guiding plate	£39.82 £33.18
24	ST9075 478 4610 Available to backorder	Pan head screw IS D6x16	£0.88 £0.73
26	ST9104 007 4289 In stock	Self-tapping screw P5x20	£0.88 £0.73
