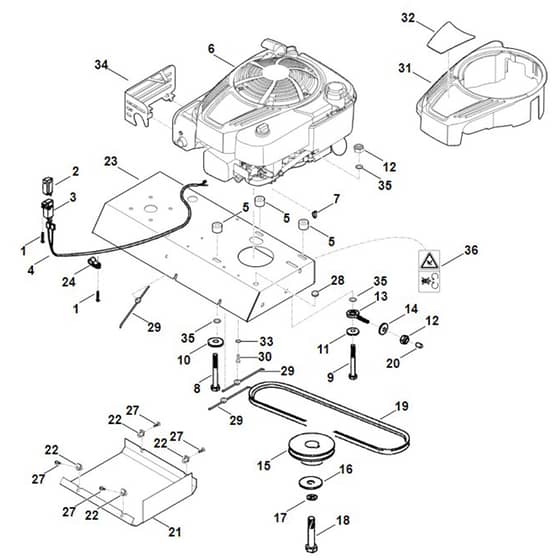

Viking GB 370.2 S - Engine, Drive - Parts Diagram

Description

Viking GB 370.2 S - Engine, Drive - Parts Diagram

	Part No.	Details
1	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.95 £0.79
2	ST6001 430 0210 In stock	Stop switch	£6.13 £5.11
3	ST6005 701 1620 Available to backorder	Insert	£2.40 £2.00
5	ST6000 708 3740 Available to backorder	Spacer tube	£19.01 £15.84
7	ST9482 435 0820 Available to backorder	Woodruff key 4x6.5	£1.03 £0.86
8	ST9007 318 1950 Available to backorder	Hexagon head screw M8x50	£1.82 £1.52
10	ST9307 021 0180 Available to backorder	Washer 84	£0.35 £0.29
11	ST9289 021 0190 Available to backorder	Washer 9	£0.35 £0.29
12	ST9212 260 1100 In stock	Hexagon nut M8	£0.72 £0.60
13	ST9991 003 1060 Available to backorder	Eye bolt M8x30	£1.37 £1.14
14	ST9309 021 0180 Available to backorder	Washer 8.4	£0.35 £0.29
15	ST6001 704 1010 Available to backorder	V-belt pulley	£87.48 £72.90
16	ST9309 021 0200 Available to backorder	Washer 10.5	£0.46 £0.38
18	ST9008 319 9077 Available to backorder	Hexagon head screw 3/8"x1"	£1.37 £1.14
18	ST9008 319 9066 Available to backorder	Hexagon head screw 3/8"x1"	£1.37 £1.14
19	ST6001 704 2100 Available to backorder	V-belt	£24.58 £20.48
21	ST6001 760 9600 Available to backorder	Guard plate (Contains 22+27)	£52.34 £43.62
22	ST9286 929 0050 Available to backorder	Slip-on nut 50x2x8	£1.14 £0.95
24	ST0751 040 4196 Available to backorder	Pipe clamp	£2.05 £1.71
28	ST0000 989 0615 Available to backorder	Grommet	£1.60 £1.33
29	ST6242 448 1200 Available to backorder	Lead retainer	£2.63 £2.19
30	ST9039 488 0974 In stock	Self-tapping screw M5x12	£0.79 £0.66
32	ST6001 967 3805 Available to backorder	Name plate GB 370 S	£4.68 £3.90
33	ST9330 630 0120 Available to backorder	Shakeproof washer 53	£0.35 £0.29
35	ST9330 630 0180 Available to backorder	Shakeproof washer 8.4	£0.35 £0.29
36	ST0000 967 7220 Available to backorder	Warning note	£2.15 £1.79
