Viking GB 350 - Basic Unit - Parts Diagram

Name: Viking GB 350 - Basic Unit - Parts Diagram
SKU: gb_350_basic_unit-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking GB 350 - Basic Unit - Parts Diagram

Description

Viking GB 350 - Basic Unit - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details

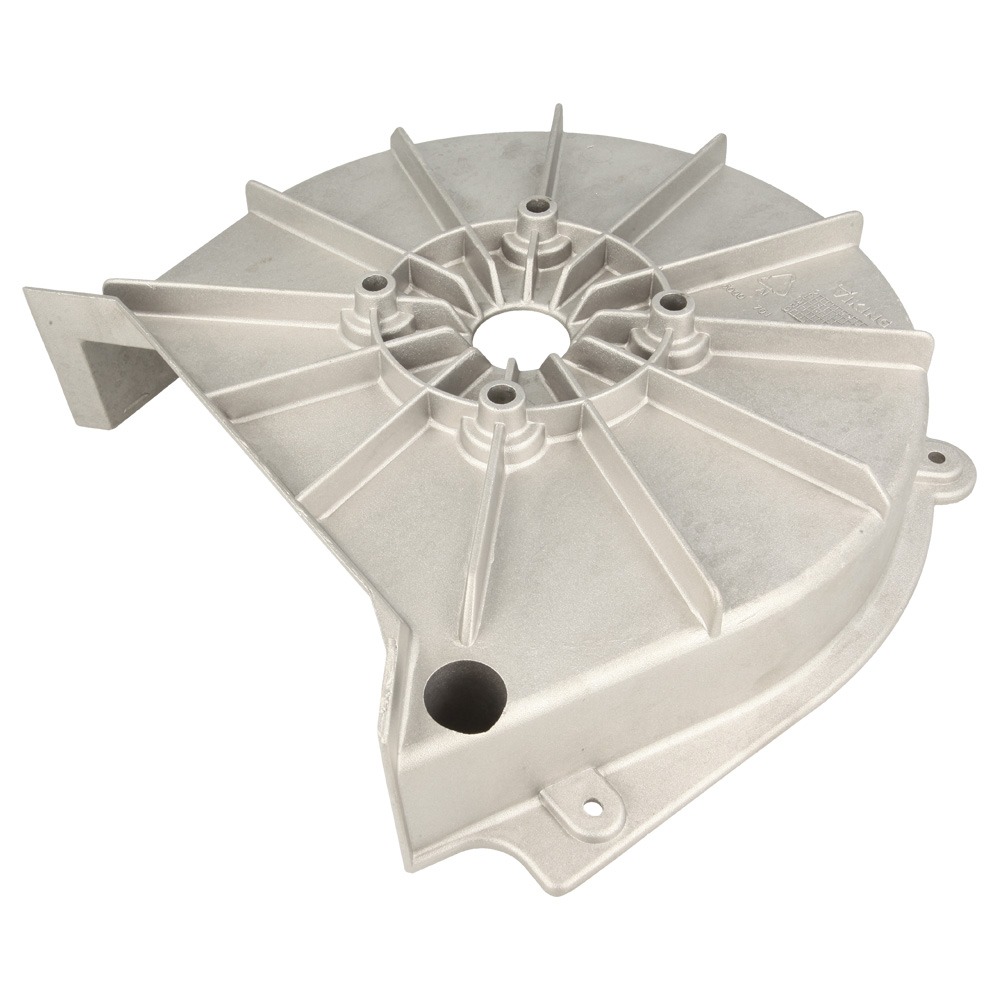

2	ST6000 701 1601 Available to backorder	Shroud insert	£41.36 £34.47
3	ST6000 706 3200 Available to backorder	Muffler	£23.98 £19.98
4	ST6000 706 3910 Available to backorder	Terminal block	£6.82 £5.68
5	ST9104 007 4270 In stock	Self-tapping screw P5x16	£0.88 £0.73
6	ST6001 430 0210 Available to backorder	Stop switch	£5.72 £4.77

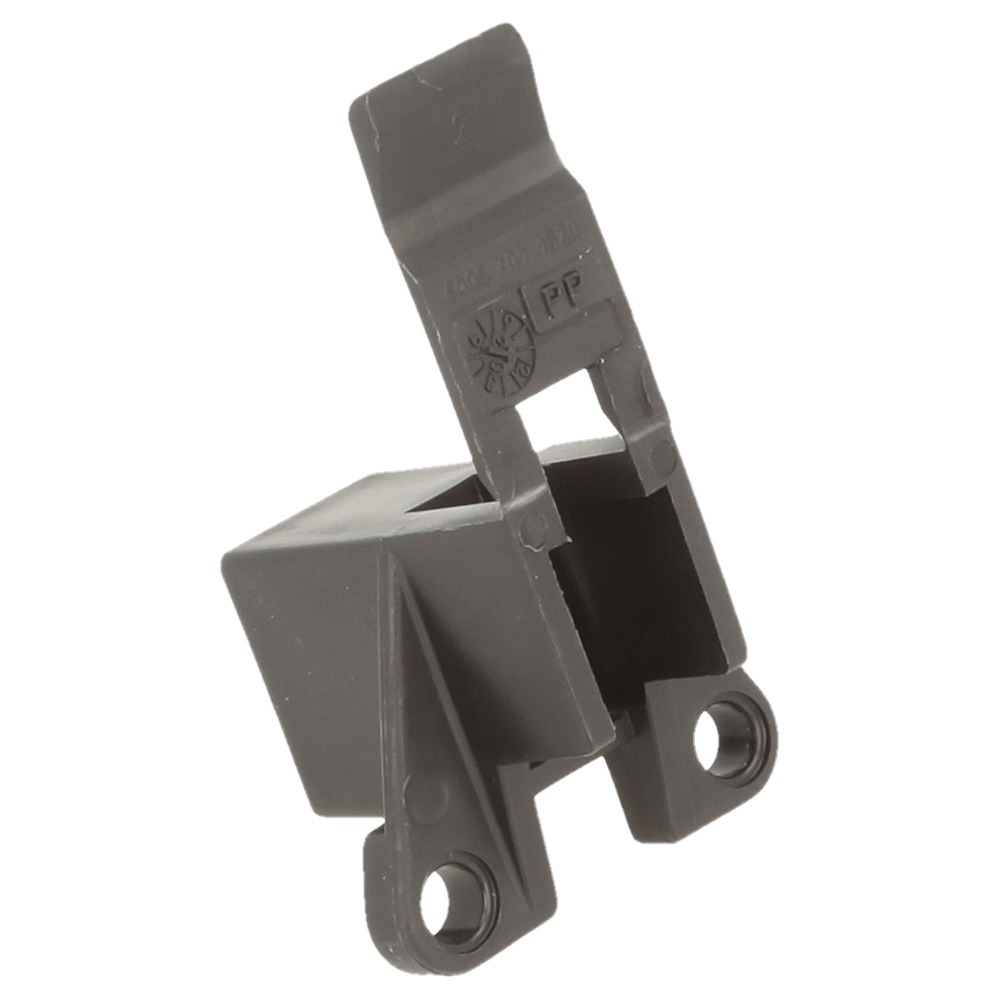

7	ST6005 701 1620 Available to backorder	Insert	£2.32 £1.93
9	ST6000 708 3740 Available to backorder	Spacer tube	£18.38 £15.32
11	ST9482 435 0820 Available to backorder	Woodruff key 4x6.5	£1.00 £0.83
12	ST9007 318 1950 Available to backorder	Hexagon head screw M8x50	£1.76 £1.47
14	ST9307 021 0180 Available to backorder	Washer 84	£0.48 £0.40
15	ST9289 021 0190 Available to backorder	Washer 9	£0.48 £0.40
16	ST9212 260 1100 In stock	Hexagon nut M8	£0.66 £0.55
17	ST9991 003 1060 Available to backorder	Eye bolt M8x30	£1.32 £1.10
18	ST6000 700 0400 Available to backorder	Wheel	£46.10 £38.42
19	ST9309 021 0180 Available to backorder	Washer 8.4	£0.48 £0.40
21	ST9309 021 0200 Available to backorder	Washer 10.5	£0.48 £0.40
23	ST9008 319 9066 Available to backorder	Hexagon head screw 3/8"x1"	£1.32 £1.10
23	ST9008 319 9077 Available to backorder	Hexagon head screw 3/8"x1"	£1.32 £1.10
24	ST6001 704 2100 Available to backorder	V-belt	£23.76 £19.80
26	ST6001 760 9600 Available to backorder	Guard plate (Contains 27+58)	£50.60 £42.17
27	ST9286 929 0050 Available to backorder	Slip-on nut 50x2x8	£1.10 £0.92
28	ST6001 701 3400 Available to backorder	Engine hood	£48.74 £40.62
31	ST9075 478 4105 Available to backorder	Pan head screw IS D5x12	£0.48 £0.40
32	ST4201 703 2800 Available to backorder	Plug	£1.76 £1.47
33	ST6375 704 0310 Available to backorder	Wheel cap	£1.48 £1.23
33	ST6375 704 0311 Available to backorder	Wheel cap	£9.58 £7.98
34	ST6000 708 8100 Available to backorder	Stop	£1.98 £1.65

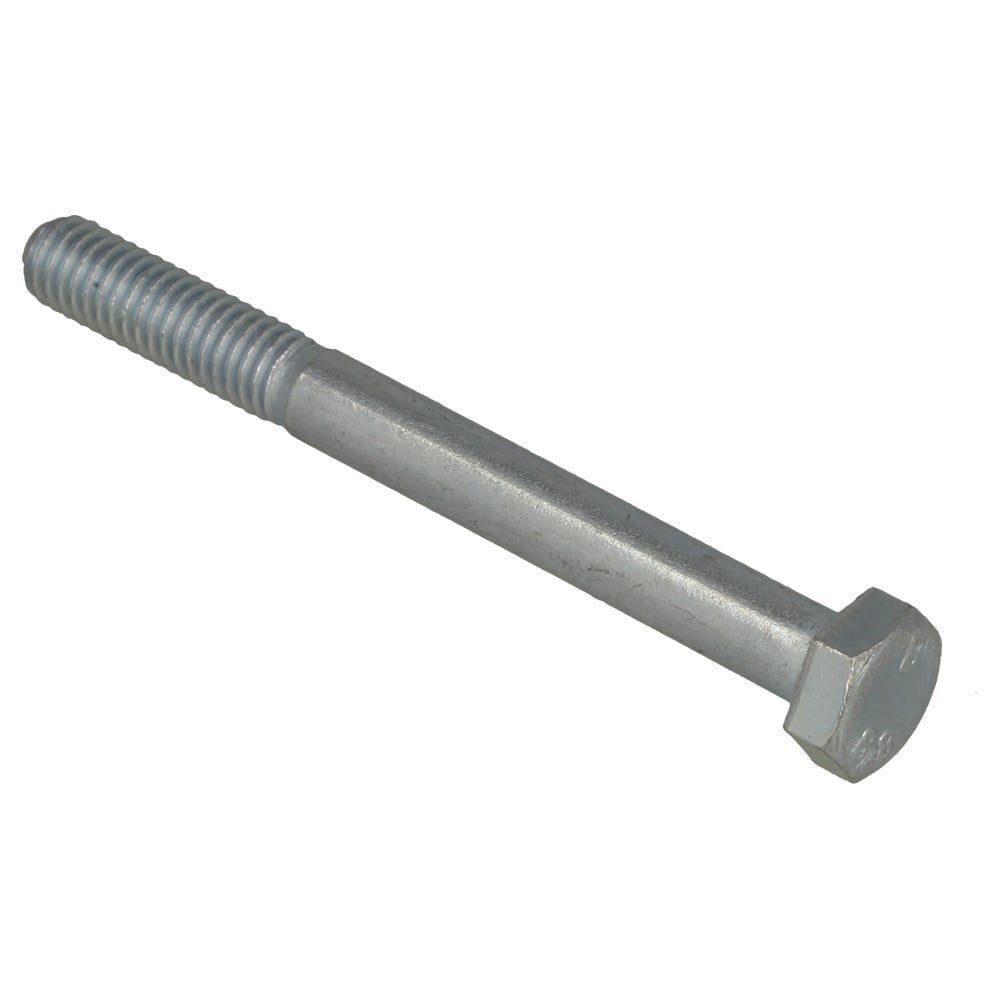

35	ST9007 319 1450 In stock	Hexagon head screw M6x60	£1.54 £1.28
36	ST9212 260 0900 In stock	Hexagon nut M6	£0.48 £0.40
37	ST9380 620 2700 Available to backorder	Roll pin 5x30	£0.76 £0.63
38	ST9027 068 1930 Available to backorder	Flat head screw M8x45	£1.54 £1.28
40	ST9104 007 4298 Available to backorder	Pan head screw IS P5x50	£1.32 £1.10
42	ST6001 704 0900 Available to backorder	Wheel axle	£20.24 £16.87
44	ST0000 989 8100 Available to backorder	Handle	£7.16 £5.97
49	ST9307 020 0120 Available to backorder	Washer 53	£0.48 £0.40
51	ST9104 003 0820 Available to backorder	Screw IS P4x30	£0.88 £0.73
57	ST9107 021 5002 Available to backorder	Self-tapping screw 4.8x13	£0.48 £0.40
59	ST0000 989 0615 Available to backorder	Grommet	£1.54 £1.28
60	ST6242 448 1200 Available to backorder	Lead retainer	£2.54 £2.12
61	ST0000 967 3453 Available to backorder	Warning sign with machine number	£2.08 £1.73
100	ST9307 021 0100 Available to backorder	Washer 43	£0.48 £0.40
102	ST9212 260 0600 Available to backorder	Hexagon nut M4	£0.48 £0.40
