Viking AZ 4000 S - Drive - Parts Diagram

Viking AZ 4000 S - Drive - Parts Diagram

Part No. az_4000_s_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Viking AZ 4000 S - Drive - Parts Diagram

Viking AZ 4000 S - Drive - Parts Diagram

Description

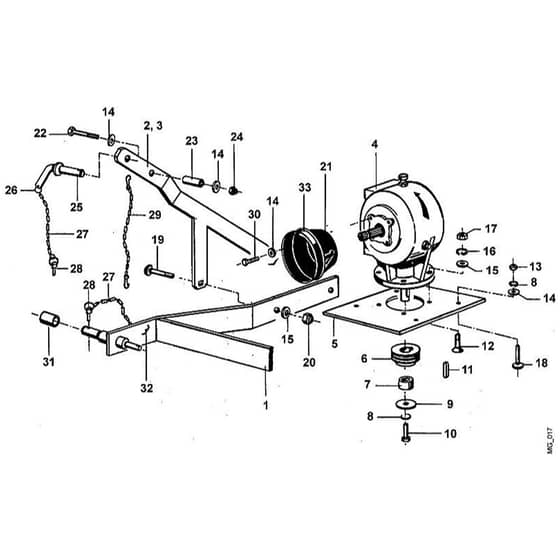

Viking AZ 4000 S - Drive - Parts Diagram

Ref.		Img.	Part No.	Details
	9		ST9289 021 0190 Available to backorder	Washer 9		£0.35 £0.29
	10		ST9008 319 1800 Available to backorder	Hexagon head screw M8x20		£1.03 £0.86
	13		ST9210 260 1100 In stock	Hexagon nut M8		£0.68 £0.57
	14		ST9291 021 0180 Available to backorder	Washer 8.4		£0.35 £0.29
	15		ST9291 021 0200 In stock	Washer 10.5		£0.48 £0.40
	16		ST9321 630 0200 Available to backorder	Spring washer 10		£0.68 £0.57
	17		ST9210 260 1300 Available to backorder	Hexagon nut M10		£0.91 £0.76
	18		ST9027 068 1830 Available to backorder	Flat head screw M8x25		£1.26 £1.05
	20		ST9212 260 1300 Available to backorder	Hexagon nut M10		£0.91 £0.76
	22		ST9007 319 2010 Available to backorder	Hexagon head screw M8x80		£2.51 £2.09
	24		ST9240 216 1100 Available to backorder	Cap nut M8		£0.68 £0.57
	30		ST9008 319 1780 Available to backorder	Hexagon head screw M8x16		£1.03 £0.86
