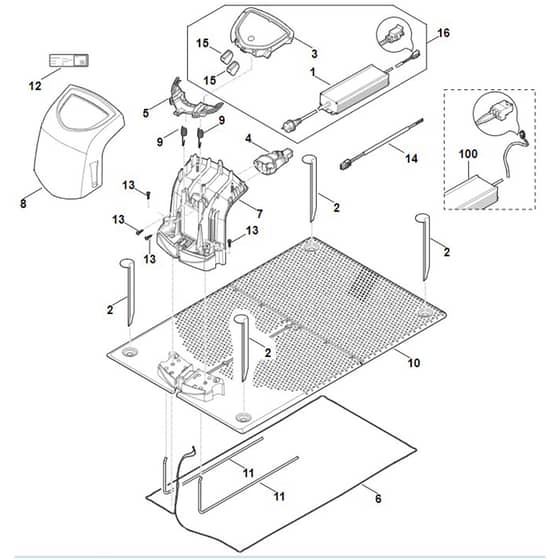

Viking ADO 601 - Docking Station - Parts Diagram

Description

	Part No.	Details
1	ST6309 400 8509 Available to backorder	Power supply unit 230V GB	£180.40 £150.33
2	ST6309 405 8710 Available to backorder	Stake	£5.06 £4.22
3	ST6309 430 1466 Available to backorder	Electronics module	£178.20 £148.50
4	ST6309 430 6815 Available to backorder	Support assy.	£27.40 £22.83
5	ST6309 432 3801 Available to backorder	Cover	£8.68 £7.23
6	ST6309 440 0345 Available to backorder	Cable	£22.66 £18.88
7	ST6309 701 1041 Available to backorder	Housing	£33.56 £27.97
7	ST6309 701 1040 Available to backorder	Housing	£34.40 £28.67
8	ST6309 701 3610 Available to backorder	Cover	£28.60 £23.83
9	ST6309 703 5100 Available to backorder	Tension spring	£2.08 £1.73
10	ST6309 703 8911 Available to backorder	Plate	£128.70 £107.25
10	ST6309 703 8910 Available to backorder	Plate	£135.38 £112.82
11	ST6309 763 0400 Available to backorder	Bow	£16.94 £14.12
12	ST6309 967 0145 Available to backorder	Model plate ADO 401/ 601	£2.08 £1.73
13	ST9104 007 4289 In stock	Self-tapping screw P5x20	£0.88 £0.73
14	ST6309 007 1098 Available to backorder	Connection set (secondary cable)	£21.22 £17.68
15	ST6309 432 9300 Available to backorder	Grommet	£2.74 £2.28
16	ST6309 007 1037 Available to backorder	Docking station conversion kit (EUR) (Contains 1+3+15)	£197.04 £164.20
100	ST6309 400 8560 Available to backorder	Power supply unit 230V GB	£325.92 £271.60
