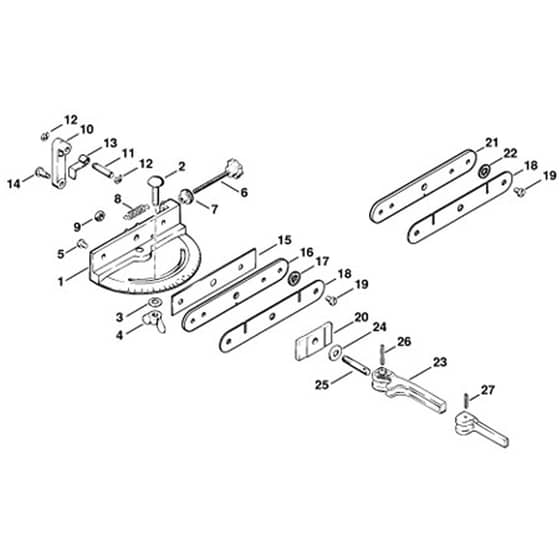

Stihl USG - Swivelling Support For Scratcher Chain - Parts Diagram

Name: Stihl USG - Swivelling Support For Scratcher Chain - Parts Diagram
SKU: usg_swivelling_support_for_scratcher_chain-group
Price: 0.29 GBP
Availability: InStock

Part No. usg_swivelling_support_for_scratcher_chain-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Stihl USG - Swivelling Support For Scratcher Chain - Parts Diagram

Description

Stihl USG - Swivelling Support For Scratcher Chain - Parts Diagram

	Part No.	Details
0	ST5203 750 1405 Available to backorder	Swivelling support for scratcher chain (Contains 1 - 12 + 14 - 26)	£162.84 £135.70
0	ST5203 750 8200 Available to backorder	Lever (Contains 10 - 14)	£50.32 £41.93
1	ST5202 750 1400 Available to backorder	Swivelling support	£10.46 £8.72
2	ST9027 068 1880 Available to backorder	Screw M8x35	£1.46 £1.22
3	ST9291 021 0180 Available to backorder	Washer 8.4	£0.35 £0.29
4	ST9245 691 1100 Available to backorder	Wing nut M8	£0.91 £0.76
5	ST9041 216 1230 Available to backorder	Pan head screw M6x8	£0.79 £0.66
6	ST5202 750 9001 Available to backorder	Adjusting screw	£4.09 £3.41
7	ST9227 216 0700 Available to backorder	Knurled nut M5	£1.03 £0.86
8	ST0000 997 6020 Available to backorder	Tension spring	£1.37 £1.14
9	ST9210 260 1100 In stock	Hexagon nut M8	£0.68 £0.57
10	ST5202 753 4001 Available to backorder	Lever	£12.97 £10.81
12	ST9460 624 0500 In stock	E-clip 5	£0.53 £0.44
14	ST9086 216 0950 Available to backorder	Flat head screw M5x10	£0.79 £0.66
15	ST5203 752 1100 Available to backorder	Shim	£4.37 £3.64
18	ST5202 752 1201 Available to backorder	Clamping bar	£6.72 £5.60
20	ST5203 752 2505 Available to backorder	Clamping plate	£3.41 £2.84
22	ST5203 753 8105 Available to backorder	Spacer ring	£3.43 £2.86
23	ST5203 750 6100 Available to backorder	Clamping lever (Contains 24 - 26)	£2.15 £1.79
24	ST5604 752 0600 Available to backorder	Thrust washer	£0.48 £0.40
25	ST0000 951 6500 Available to backorder	Shoulder stud	£5.36 £4.47
26	ST9385 620 2190 Available to backorder	Roll pin 4x30	£0.68 £0.57
27	ST9380 620 2130 In stock	Roll pin 4x20	£0.72 £0.60
