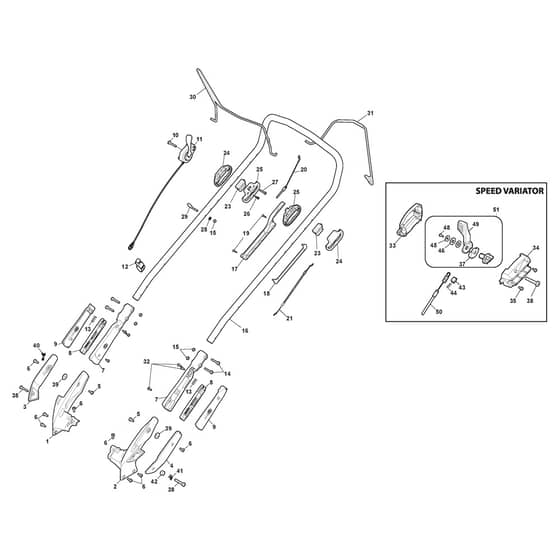

TWINCLIP 955 B - 2022 - 294568038/ST2 - Stiga Rotary Mower Handle Upper Part Diagram

Name: TWINCLIP 955 B - 2022 - 294568038/ST2 - Stiga Rotary Mower Handle Upper Part Diagram
SKU: twinclip_955_b_294568038_st2_handle_upper_part-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TWINCLIP 955 B - 2022 - 294568038/ST2 - Stiga Rotary Mower Handle Upper Part Diagram

Description

Stiga TWINCLIP 955 B Parts Diagram

Product Name - TWINCLIP 955 B

Model Year - 2022

Model Type - MP2 554 S

Art.N - 294568038/ST2

Engine Model - GXV 160 OHV

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381005219/1 In stock	Right Bracket	£33.86 £28.22
2	MO381005221/1 Available to backorder	Left Bracket	£38.00 £31.67
3	MO381005239/0 Available to backorder	Cover. Right	£16.34 £13.62
4	MO381005241/0 Available to backorder	Cover. Left	£16.34 £13.62
5	MO122517885/0 Available to backorder	Pin	£3.24 £2.70
6	MO112735664/0 Available to backorder	Screw	£1.40 £1.17
7	MO381005243/0 In stock	External Guide	£23.65 £19.71
8	MO322246106/0 Available to backorder	Cursor	£12.95 £10.79
9	MO381005245/0 Available to backorder	Internal Guide	£16.19 £13.49
10	MO112727786/0 Available to backorder	Screw	£1.97 £1.64

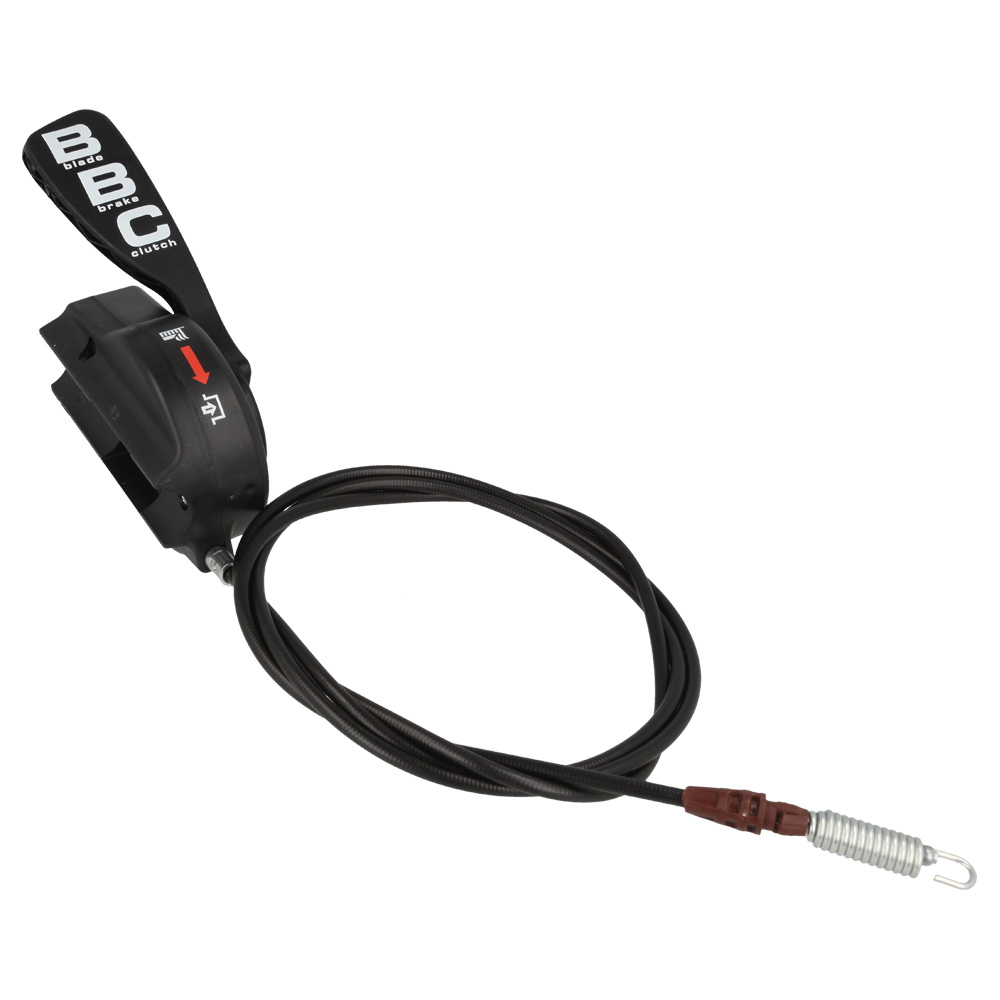

11	MO381030134/0A Available to backorder	Blade Friction Clutch Cable	£147.80 £123.17
12	MO118390020/0 Available to backorder	Conduit Clip	£1.82 £1.52
13	MO125430202/1 Available to backorder	Spring	£1.69 £1.41
14	MO112727799/0 Available to backorder	Screw	£1.82 £1.52
15	MO112154510/0 In stock	Nut	£1.55 £1.29
16	MO381007643/0 Available to backorder	Handle. Upper Part Grey With Sponge Handgrip	£80.23 £66.86
17	MO322806650/0 Available to backorder	Support. Internal	£5.21 £4.34
18	MO322806651/0 Available to backorder	Support. External	£5.06 £4.22
19	MO112728713/0 Available to backorder	Screw	£1.40 £1.17
20	MO381030123/0 Available to backorder	Cable Com. Cursor. Assy	£10.14 £8.45
21	MO381030118/0 In stock	Clutch Cable	£20.14 £16.78
23	MO322394540/0 Available to backorder	Lever.Yellow	£3.10 £2.58
24	MO322722821/0 Available to backorder	External Protection	£3.38 £2.82
25	MO322722820/0 Available to backorder	Internal Protection	£3.38 £2.82
27	MO112728705/0 Available to backorder	Screw	£2.68 £2.23
28	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
29	MO122430313/0 In stock	Guide Spring	£3.94 £3.28
30	MO181103524/0 Available to backorder	Lever. Engine Brake	£40.96 £34.13
31	MO181003438/1 Available to backorder	Drive Control Lever. Black	£33.79 £28.16
32	MO112735651/0 Available to backorder	Screw	£1.55 £1.29
33	MO322722845/0 Available to backorder	Starting Block Outer Half-Bearing Stiga Grey	£3.94 £3.28
34	MO322722844/0A Available to backorder	Starting Block Inner Half-Bearing Stiga Grey	£7.46 £6.22
35	MO112728696/0 Available to backorder	Screw	£1.55 £1.29
37	MO322109592/0 Available to backorder	Cam	£1.82 £1.52
38	MO112735660/0 Available to backorder	Screw	£1.55 £1.29
39	MO9694-0001-00 Available to backorder	Washer	£1.55 £1.29
40	MO122430323/0 Available to backorder	Spring	£2.68 £2.23
43	MO322109593/0 Available to backorder	Slide	£1.82 £1.52
44	MO122450487/0 Available to backorder	Spring	£1.55 £1.29
45	MO112523040/0 In stock	Washer	£1.49 £1.24
46	MO322672157/0 Available to backorder	Washer	£1.55 £1.29
48	MO112735662/1 In stock	Screw	£2.40 £2.00
49	MO381007228/1 Available to backorder	Variator Lever Assy Yellow	£33.79 £28.16

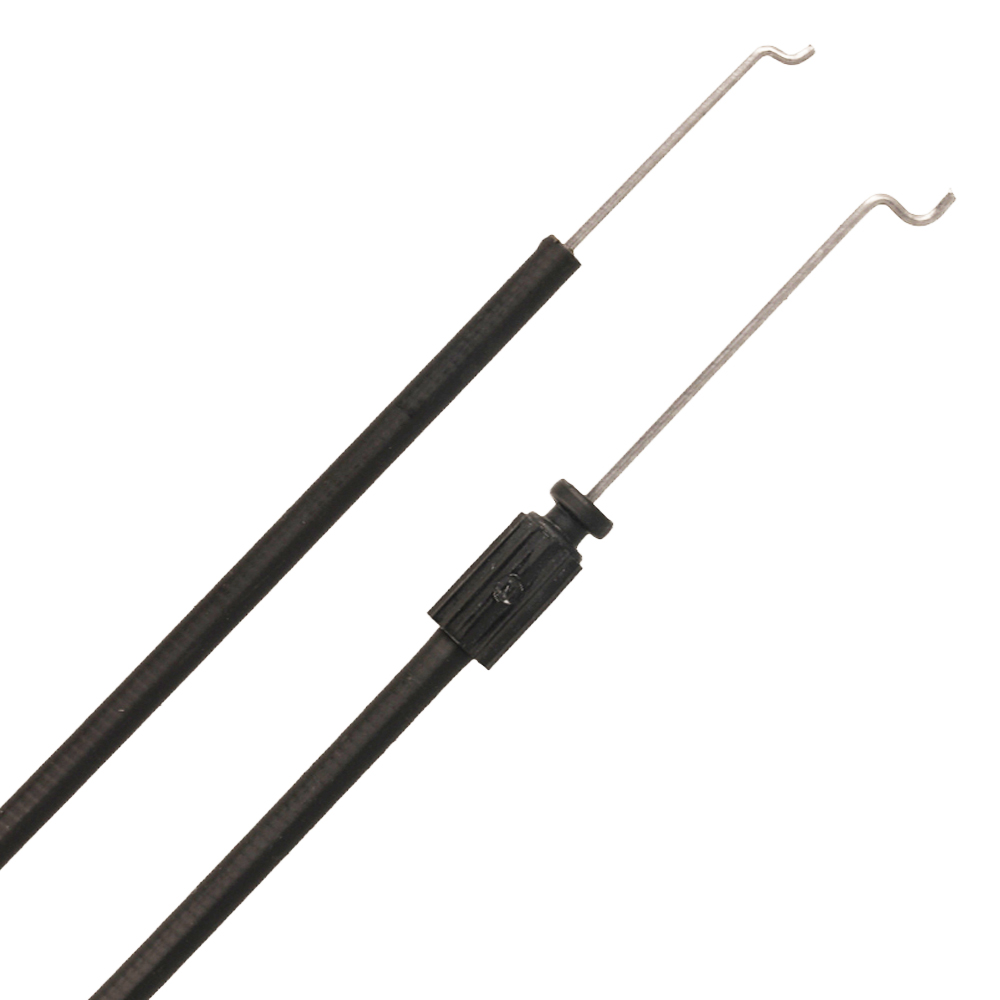

50	MO181005542/0 Available to backorder	Throttle Cable	£13.68 £11.40
