Twinclip 950E VR KIT - 2023-2025 - 294519198/ST1 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

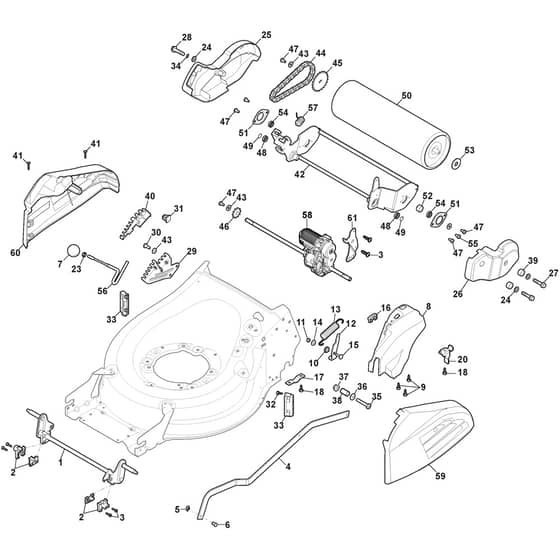

Stiga Twinclip 950E VR KIT Parts Diagram

Product Name - Twinclip 950E VR KIT

Model Year - 2023-2025

Model Type - MP2 500 AS-R LI D48

Art.N - 294519198/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302885/1 Available to backorder	Front Wheel Axle	£30.97 £25.81
2	MO322785305/1 In stock	Support	£2.68 £2.23
3	MO112728697/0 In stock	Screw	£1.55 £1.29
4	MO322869719/1 Available to backorder	Adjustment Rod	£38.00 £31.67
5	MO112000930/0 In stock	Circlip Ø6	£1.55 £1.29
6	MO122519823/0 In stock	Pin	£2.26 £1.88
7	MO322399812/0 Available to backorder	Knob	£3.78 £3.15
8	MO322055329/0 Available to backorder	Cover	£12.95 £10.79
9	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
10	MO122517873/0 Available to backorder	Pin	£2.95 £2.46
11	MO112154510/0 In stock	Nut	£1.55 £1.29
12	MO322778475/0 Available to backorder	Bracket	£2.81 £2.34
13	MO122450480/0 Available to backorder	Spring	£2.40 £2.00
15	MO112815270/0 Available to backorder	Screw	£1.55 £1.29
16	MO322038407/0 Available to backorder	Brass	£1.49 £1.24
17	MO322545147/0 Available to backorder	Plate	£1.97 £1.64
20	MO322778489/0 Available to backorder	Plate	£2.40 £2.00
23	MO112293200/0 In stock	Nut	£1.55 £1.29
25	MO322060272/2 Available to backorder	Right Carter	£9.22 £7.68
26	MO322060273/1 In stock	Left Carter	£9.22 £7.68
27	MO112735592/0 Available to backorder	Screw	£1.97 £1.64
28	MO112735594/0 Available to backorder	Screw	£1.55 £1.29
29	MO322735605/0 Available to backorder	Sector. Height Adjustment	£8.59 £7.16
30	MO9943-0516-16 In stock	Screw	£1.22 £1.02
31	MO118737864/0 Available to backorder	Brass	£1.40 £1.17
32	MO112728706/0 In stock	Screw	£1.55 £1.29
33	MO322546053/0 Available to backorder	Plate	£2.68 £2.23
34	MO119035002/0 Available to backorder	Or Ring	£2.12 £1.77
35	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
36	MO122671651/0 Available to backorder	Washer	£1.97 £1.64
37	MO112155015/0 Available to backorder	Nut	£1.69 £1.41
38	MO122167840/0 Available to backorder	Spacer	£1.55 £1.29
40	MO322570216/0 Available to backorder	Plate	£5.48 £4.57
41	MO112728696/0 Available to backorder	Screw	£1.55 £1.29
42	MO381302907/0 Available to backorder	Rear Wheel Axle	£92.90 £77.42
43	MO112523040/0 In stock	Washer	£1.49 £1.24
44	MO1111-3562-01 In stock	Chain	£20.06 £16.72
45	MO1111-3424-01 Available to backorder	Sprocket	£18.31 £15.26
46	MO1111-3423-01 Available to backorder	Sprocket	£14.80 £12.33
47	MO112735662/1 In stock	Screw	£2.40 £2.00
48	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
49	MO112608600/0 In stock	Seeger	£1.55 £1.29
50	MO1111-3429-01 Available to backorder	Roller	£260.44 £217.03
51	MO322207325/0 Available to backorder	Bearing Flange	£1.97 £1.64
52	MO122170820/0 Available to backorder	Spacer	£17.74 £14.78
53	MO112523100/0 Available to backorder	Washer	£1.97 £1.64
54	MO119216036/0 In stock	Bearing	£9.58 £7.98
55	MO112735664/0 Available to backorder	Screw	£1.40 £1.17
56	MO322321557/0 Available to backorder	Lever. Height Adjustment	£16.75 £13.96
57	MO122446194/0 Available to backorder	Spring	£3.52 £2.93

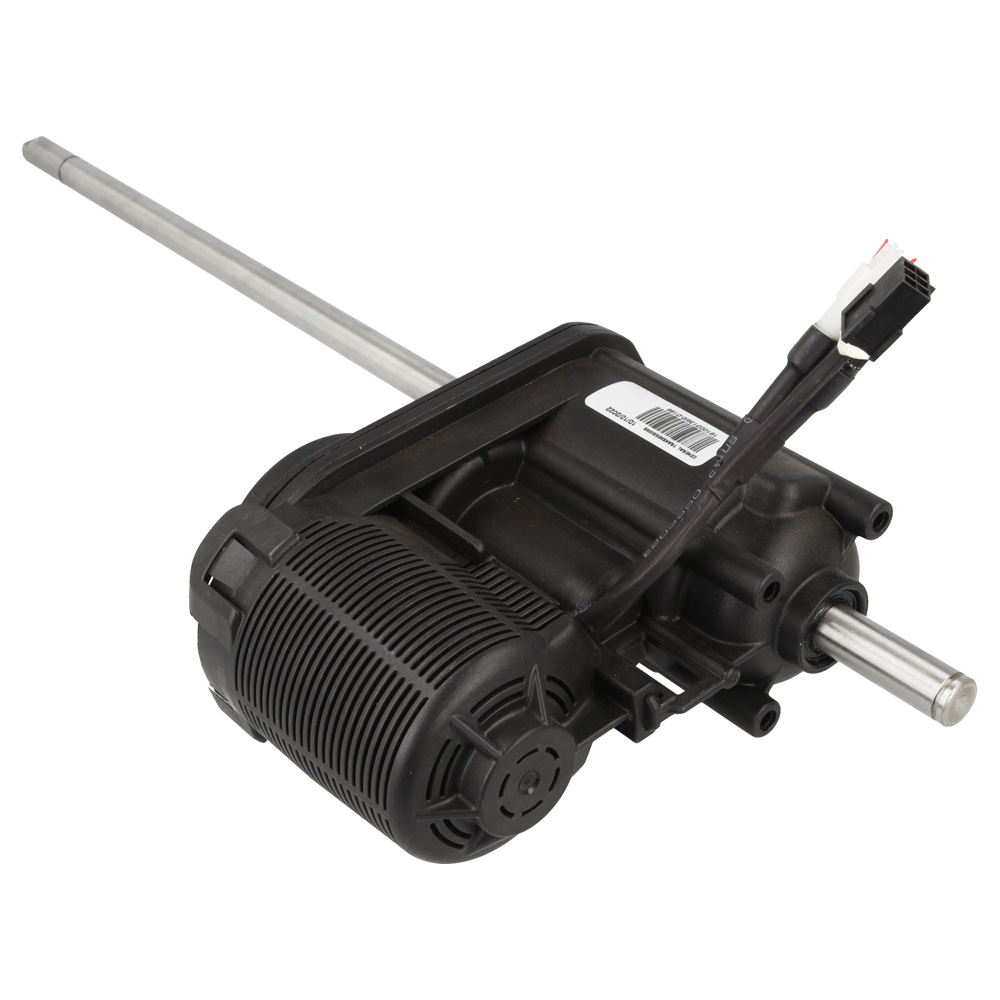

58	MO181003139/0 Available to backorder	Electric Transmission	£139.33 £116.11
59	MO322060308/0 Available to backorder	Left Carter Grey NCS S8000-N	£11.47 £9.56
60	MO322060309/0 Available to backorder	Right Carter Grey NCS S8000-N	£11.47 £9.56
61	MO322778537/0 Available to backorder	Bracket	£4.22 £3.52
