Twinclip 950e V Kit - 2023-2025 - 294513998/UKS - Stiga Rotary Mower Handle Diagram

Name: Twinclip 950e V Kit - 2023-2025 - 294513998/UKS - Stiga Rotary Mower Handle Diagram
SKU: twinclip_950e_v_kit_294513998_uks_handle-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Twinclip 950e V Kit - 2023-2025 - 294513998/UKS - Stiga Rotary Mower Handle Diagram

Description

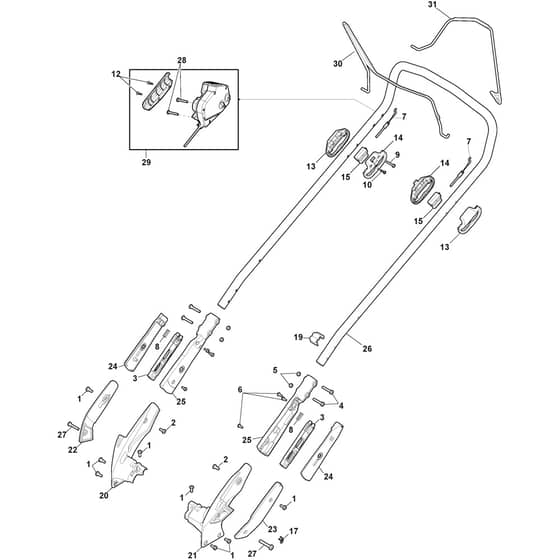

Stiga Twinclip 950e V Kit Parts Diagram

Product Name - Twinclip 950e V Kit

Model Year - 2023-2025

Model Type - MP2 500 ASQK LI D48

Art.N - 294513998/UKS

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112735664/0 Available to backorder	Screw	£1.40 £1.17
2	MO122517885/0 Available to backorder	Pin	£3.24 £2.70
3	MO322246106/0 Available to backorder	Cursor	£12.95 £10.79
5	MO112154510/0 In stock	Nut	£1.55 £1.29
6	MO112735651/0 Available to backorder	Screw	£1.55 £1.29
7	MO381030123/0 Available to backorder	Cable Com. Cursor. Assy	£10.14 £8.45
8	MO125430202/1 Available to backorder	Spring	£1.69 £1.41
9	MO112728705/0 Available to backorder	Screw	£2.68 £2.23
10	MO112728696/0 Available to backorder	Screw	£1.55 £1.29
12	MO112728706/0 In stock	Screw	£1.55 £1.29
13	MO322722821/0 Available to backorder	External Protection	£3.38 £2.82
14	MO322722820/0 Available to backorder	Internal Protection	£3.38 £2.82
15	MO322394540/0 Available to backorder	Lever.Yellow	£3.10 £2.58
19	MO118390020/0 Available to backorder	Conduit Clip	£1.82 £1.52
20	MO381005219/1 In stock	Right Bracket	£33.86 £28.22
21	MO381005221/1 Available to backorder	Left Bracket	£38.00 £31.67
22	MO381005239/0 Available to backorder	Cover. Right	£16.34 £13.62
23	MO381005241/0 Available to backorder	Cover. Left	£16.34 £13.62
24	MO381005245/0 Available to backorder	Internal Guide	£16.19 £13.49
25	MO381005243/0 In stock	External Guide	£23.65 £19.71
26	MO381007682/0 Available to backorder	Handle	£60.54 £50.45
27	MO112735660/0 Available to backorder	Screw	£1.55 £1.29
28	MO112727799/0 Available to backorder	Screw	£1.82 £1.52
29	MO381600602/0 Available to backorder	Dead Hand Switch - Battery	£68.42 £57.02
30	MO181103522/1 Available to backorder	Opc Lever	£21.40 £17.83
31	MO181103523/0 Available to backorder	Traction Lever. Black	£18.66 £15.55
