TWINCLIP 55 SV H - 2016-2018 - 294563038/S16 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

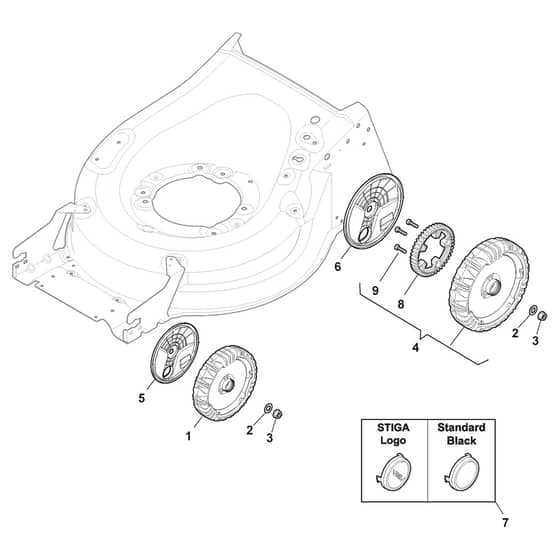

Stiga TWINCLIP 55 SV H Parts Diagram

Product Name - TWINCLIP 55 SV H

Model Year - 2016-2018

Model Type - MP2 504 SV

Art.N - 294563038/S16

Engine Model - Honda GCV 190 OHC Autochoke

	Part No.	Details
1	MO381007494/0 Available to backorder	Wheel Ø 210	£82.37 £68.64
2	MO112521350/0 In stock	Washer	£1.55 £1.29
3	MO112155000/0 In stock	Nut	£1.55 £1.29
4	MO381007800/0 Available to backorder	Wheel Ø240 Aluminium Wheel	£92.90 £77.42
5	MO322600334/0 Available to backorder	Protection. Wheel	£3.79 £3.16
6	MO322600333/0 Available to backorder	Protection. Wheel	£4.64 £3.87
7	MO322110798/0 Available to backorder	Hub Cap Grey with STIGA Logo	£2.24 £1.87
8	MO322120117/0 In stock	Wheels Crown	£4.93 £4.11
9	MO112735645/0 Available to backorder	Screw Tcb Torx M4 X 20	£1.84 £1.53
