TWINCLIP 55 SV H - 2016-2018 - 294563038/S16 - Stiga Rotary Mower Blade Diagram

Name: TWINCLIP 55 SV H - 2016-2018 - 294563038/S16 - Stiga Rotary Mower Blade Diagram
SKU: twinclip_55_sv_h_294563038_s16_blade-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TWINCLIP 55 SV H - 2016-2018 - 294563038/S16 - Stiga Rotary Mower Blade Diagram

Description

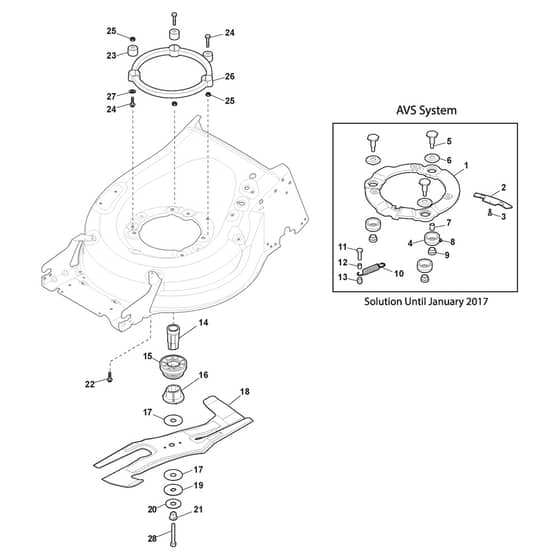

Stiga TWINCLIP 55 SV H Parts Diagram

Product Name - TWINCLIP 55 SV H

Model Year - 2016-2018

Model Type - MP2 504 SV

Art.N - 294563038/S16

Engine Model - Honda GCV 190 OHC Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381207230/0 Available to backorder	Flange	£32.26 £26.88
2	MO322551536/0 Available to backorder	Plate	£3.67 £3.06
3	MO112728210/0 Available to backorder	Screw	£1.40 £1.17
4	MO322250014/0 Available to backorder	Rubber	£6.34 £5.28
5	MO122519816/0 Available to backorder	Pin	£12.19 £10.16
6	MO322672201/0 Available to backorder	Washer	£6.04 £5.03
7	MO122170850/0 In stock	Distance Flangia Avs X Rsb Diamond	£4.13 £3.44
8	MO112543002/0 Available to backorder	Washer	£1.22 £1.02
9	MO112155000/0 In stock	Nut	£1.55 £1.29
10	MO122450439/0 Available to backorder	Spring	£3.38 £2.82
11	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
12	MO122170846/0 Available to backorder	Spacer	£3.10 £2.58
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO122785494/0 In stock	Support Ø 25	£14.80 £12.33
15	MO122601933/0 In stock	Pulley	£59.12 £49.27
16	MO122465656/0 In stock	Blade Hub	£10.58 £8.82
17	MO322672110/1 In stock	Washer	£1.82 £1.52
18	MO1111-9257-02 Available to backorder	Blade Stiga Packed into 181004417.0	£72.72 £60.60
19	MO322672105/0 Available to backorder	Washer	£3.56 £2.97
20	MO112508120/0 Available to backorder	Cup Spring	£3.52 £2.93
21	MO122041943/0 Available to backorder	Bush	£9.72 £8.10
22	MO112735108/1 Available to backorder	Screw To fix the Engine	£2.12 £1.77
23	MO122170835/0 Available to backorder	Spacer	£6.62 £5.52
24	MO112691700/0 In stock	Screw	£1.82 £1.52
25	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
26	MO322170964/0 Available to backorder	Protection	£4.22 £3.52
27	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
28	MO112736820/0 In stock	Hex-Head Screw 3.8" X 3"	£2.95 £2.46
