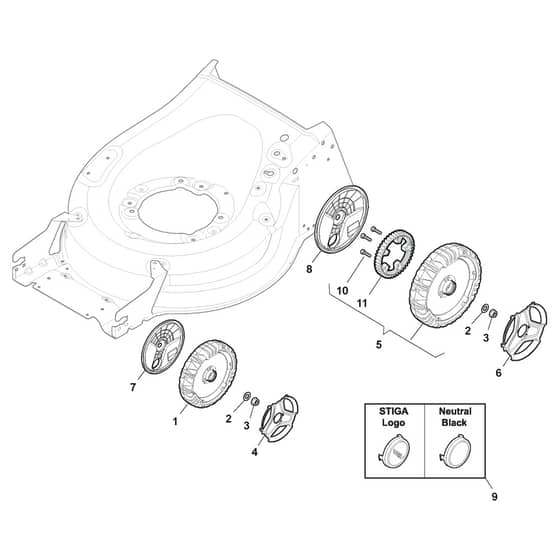

TWINCLIP 55 S B - 2018-2019 - 294562028/ST1 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Name: TWINCLIP 55 S B - 2018-2019 - 294562028/ST1 - Stiga Rotary Mower Wheels and Hub Caps Diagram
SKU: twinclip_55_s_b_294562028_st1_wheels_and_hub_caps-group
Price: 1.29 GBP
Availability: InStock

Part No. twinclip_55_s_b_294562028_st1_wheels_and_hub_caps-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TWINCLIP 55 S B - 2018-2019 - 294562028/ST1 - Stiga Rotary Mower Wheels and Hub Caps Diagram

Description

Stiga TWINCLIP 55 S B Parts Diagram

Product Name - TWINCLIP 55 S B

Model Year - 2018-2019

Model Type - MP2 554 S

Art.N - 294562028/ST1

Engine Model - B&S 675 EXi series Ready Start

	Part No.	Details
1	MO381007498/0 In stock	Wheel Ø 210	£32.18 £26.82
2	MO112521350/0 In stock	Washer	£1.55 £1.29
3	MO112155000/0 In stock	Nut	£1.55 £1.29
4	MO322110796/0 Available to backorder	Hub Cap Grey Grey	£3.10 £2.58
5	MO381007801/0 Available to backorder	Wheel Ø240 Plastic Wheel	£36.59 £30.49
6	MO322110797/0 Available to backorder	Hub Cap Grey Grey	£3.52 £2.93
7	MO322600334/0 Available to backorder	Protection. Wheel	£3.79 £3.16
8	MO322600333/0 Available to backorder	Protection. Wheel	£4.64 £3.87
9	MO322110798/0 Available to backorder	Hub Cap Grey with STIGA Logo	£2.24 £1.87
10	MO112728706/0 In stock	Screw	£1.60 £1.33
11	MO322120117/0 In stock	Plastic Drive Gear D.240	£4.93 £4.11
