TWINCLIP 50 SV H - 2016-2019 - 294513038/S16 - Stiga Rotary Mower Protection Belt Diagram

Name: TWINCLIP 50 SV H - 2016-2019 - 294513038/S16 - Stiga Rotary Mower Protection Belt Diagram
SKU: twinclip_50_sv_h_294513038_s16_protection_belt-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TWINCLIP 50 SV H - 2016-2019 - 294513038/S16 - Stiga Rotary Mower Protection Belt Diagram

Description

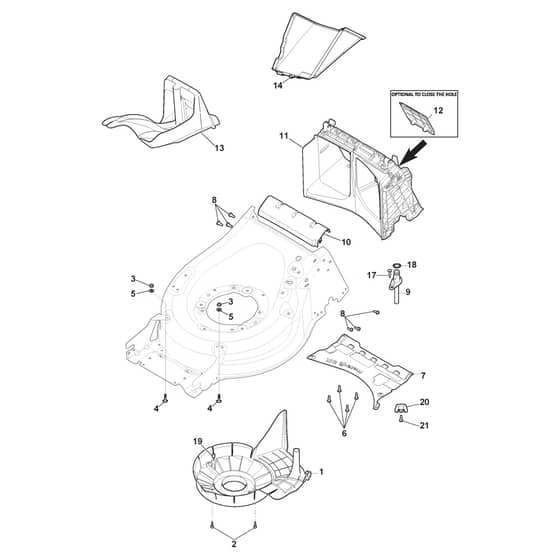

Stiga TWINCLIP 50 SV H Parts Diagram

Product Name - TWINCLIP 50 SV H

Model Year - 2016-2019

Model Type - MP2 504 SV

Art.N - 294513038/S16

Engine Model - GCV 160 OHC Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322060270/3 Available to backorder	Carter Mulching From S.N 19JA2WBH023209	£11.12 £9.27
2	MO112735645/0 Available to backorder	Screw	£1.82 £1.52
3	MO112154510/0 In stock	Nut	£1.55 £1.29
4	MO112815206/0 Available to backorder	Screw	£1.55 £1.29
5	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
6	MO9943-0516-16 In stock	Screw	£1.22 £1.02
7	MO322778493/0 Available to backorder	Lower Case	£17.45 £14.54
8	MO112735664/0 Available to backorder	Screw	£1.40 £1.17
9	MO322034002/0 Available to backorder	Washing Connection Black Plastic	£1.69 £1.41
9	MO322034006/0 Available to backorder	Washing Connection White Galvanized	£10.99 £9.16
10	MO322109578/0 Available to backorder	Support. Grey Grey NCS S8000-N	£5.48 £4.57
11	MO381004825/0 Available to backorder	Conveyor	£132.73 £110.61
12	MO322600310/0 Available to backorder	Rear Door	£5.06 £4.22
13	MO322140247/0 Available to backorder	Deflector	£23.65 £19.71
14	MO322108319/0 Available to backorder	Rear Door	£21.95 £18.29
17	MO112728697/0 In stock	Screw	£1.55 £1.29
18	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
19	MO122042073/0 Available to backorder	Bush	£1.69 £1.41
20	MO322943101/0 Available to backorder	Screw	£1.82 £1.52
21	MO112728706/0 In stock	Self-Tapping Screw Wn1451 K40 X 16	£1.55 £1.29
