Stiga TWINCLIP 50 SV H Parts Diagram

Product Name - TWINCLIP 50 SV H

Model Year - 2016-2019

Model Type - MP2 504 SV

Art.N - 294513038/S16

Engine Model - GCV 160 OHC Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381005219/1 In stock	Right Bracket From 03-10-2016	£33.86 £28.22
2	MO381005221/1 Available to backorder	Left Bracket From 03-10-2016	£38.00 £31.67
3	MOREPLA0000042 Available to backorder	Cover. Right To 03-10-2016	£50.21 £41.84
3	MO381005239/0 Available to backorder	Cover. Right From 03-10-2016	£16.34 £13.62
4	MOREPLA0000043 Available to backorder	Cover. Left To 03-10-2016	£54.35 £45.29
4	MO381005241/0 Available to backorder	Cover. Left From 03-10-2016	£16.34 £13.62
5	MO381005247/0 Available to backorder	External Guide From 17-10-2016	£24.49 £20.41
6	MOREPLA0000040 Available to backorder	Cursor Guide To 17-10-2016	£39.84 £33.20
6	MO381005245/0 Available to backorder	Internal Guide From 17-10-2016	£16.19 £13.49
7	MO122517885/0 Available to backorder	Pin	£3.24 £2.70
9	MO322246106/0 Available to backorder	Cursor	£12.95 £10.79
10	MO112727783/0 Available to backorder	Screw	£1.69 £1.41
11	MO125430202/1 Available to backorder	Spring	£1.69 £1.41
14	MO381007579/0 Available to backorder	Handle. Upper Part Right	£32.38 £26.98
16	MO122430318/0 Available to backorder	Guide Spring	£11.69 £9.74
20	MO122430314/0 Available to backorder	Starting Rope Guide Spring	£5.92 £4.93
21	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
24	MO381004849/0 Available to backorder	Starting Block Outer Half-Bearing	£17.06 £14.22
25	MO322722823/0 Available to backorder	Right Lever	£12.11 £10.09
26	MO322722822/0 Available to backorder	Left Lever	£12.11 £10.09
27	MO112154510/0 In stock	Nut	£1.55 £1.29
28	MO112604897/0 Available to backorder	Elastic Washer	£1.55 £1.29
29	MO122450490/0 Available to backorder	Spring	£1.69 £1.41
30	MO381007580/0 Available to backorder	Right Joint	£39.42 £32.85
31	MO381007581/0 Available to backorder	Left Joint	£35.20 £29.33
32	MO322041967/1 Available to backorder	Bushing	£1.55 £1.29
33	MO112728721/0 Available to backorder	Screw	£1.82 £1.52
35	MO112735664/0 Available to backorder	Screw	£1.40 £1.17
37	MO322557108/0 Available to backorder	Plate	£1.55 £1.29
38	MO381030120/0 Available to backorder	Cable Com. Cursor. Assy	£11.27 £9.39
39	MO381030122/0 Available to backorder	Variator Cable. Upper	£43.49 £36.24
41	MO322672157/0 Available to backorder	Washer	£1.55 £1.29
42	MO381007228/1 Available to backorder	Variator Lever Assy Yellow From 01-9-2018	£33.79 £28.16
42	MO381007228/0 Available to backorder	Variator Lever Assy Yellow To 31-8-2018	£29.56 £24.63
43	MO322672155/0 Available to backorder	Washer	£2.81 £2.34
44	MO112523040/0 In stock	Washer	£1.49 £1.24
45	MO112735651/0 Available to backorder	Screw	£1.55 £1.29
46	MO381003472/1 Available to backorder	Lever. Engine Brake	£49.26 £41.05
47	MO381003349/0 Available to backorder	Lever. Driving	£47.87 £39.89
48	MO381007590/0 Available to backorder	Handle. Upper Part With Sponge Handgrip	£36.59 £30.49
49	MO322246112/0 Available to backorder	Upper Cable Joint	£21.48 £17.90
50	MO381030126/0 Available to backorder	Variator Cable. Lower	£21.44 £17.87
51	MO381030130/0 Available to backorder	Clutch Cable. Lower From 01-11-2016	£15.07 £12.56

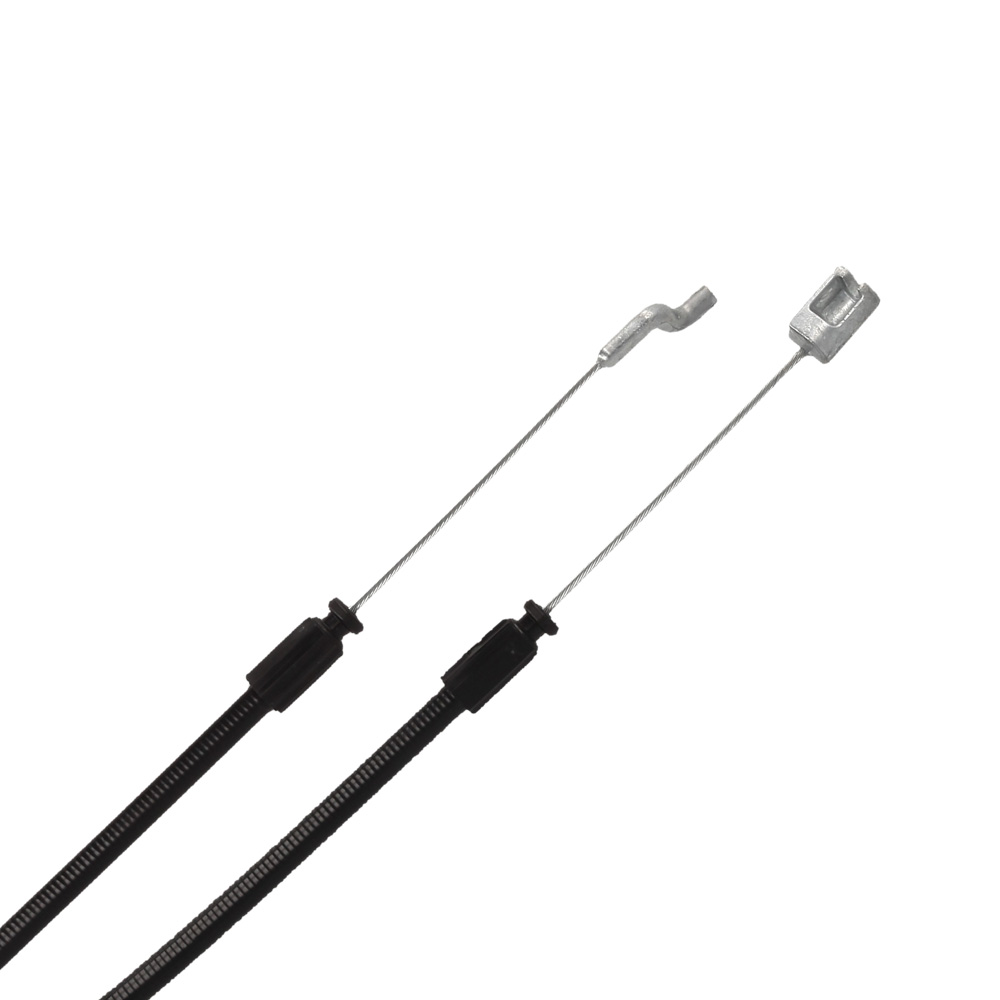

53	MO381030127/0 In stock	Clutch Cable. Upper	£17.74 £14.78
54	MO9694-0001-00 Available to backorder	Washer From 01-9-2017	£1.55 £1.29
55	MO112735660/0 Available to backorder	Screw	£1.55 £1.29
57	MO112543001/0 Available to backorder	Washer	£4.93 £4.11
58	MO181030128/0 Available to backorder	Engine Brake Cable Mp2E 50	£15.62 £13.02
