TWINCLIP 50 SQ H - 2019-2022 - 294512838/ST1 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Name: TWINCLIP 50 SQ H - 2019-2022 - 294512838/ST1 - Stiga Rotary Mower Deck and Height Adjusting Diagram
SKU: twinclip_50_sq_h_294512838_st1_deck_and_height_adjusting-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TWINCLIP 50 SQ H - 2019-2022 - 294512838/ST1 - Stiga Rotary Mower Deck and Height Adjusting Diagram

Description

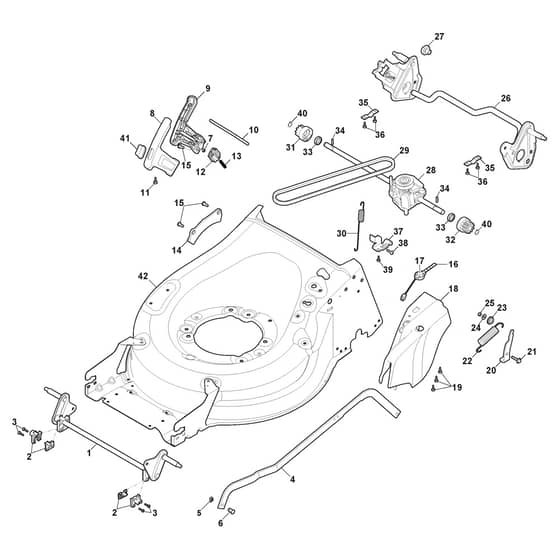

Stiga TWINCLIP 50 SQ H Parts Diagram

Product Name - TWINCLIP 50 SQ H

Model Year - 2019-2022

Model Type - MP2 504 SQ

Art.N - 294512838/ST1

Engine Model - GCVx145 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302901/1 Available to backorder	Front Wheel Axle From S.N 20CA2WBH016180	£28.15 £23.46
2	MO322785305/1 In stock	Support	£2.68 £2.23
4	MO322869697/1 Available to backorder	Adjustment Rod From S.N 20CA2WBH010963	£46.46 £38.72
5	MO112436050/0 In stock	Plate	£1.82 £1.52
6	MO122519823/0 In stock	Pin	£2.26 £1.88
7	MO112154330/0 In stock	Nut	£1.55 £1.29
8	MO322394534/0 In stock	Upper Handle Black	£4.22 £3.52
9	MO322394554/0 In stock	Lower Handgrip Black and Yellow	£5.48 £4.57
10	MO322869723/0 In stock	Rod	£1.69 £1.41
11	MO112728697/0 In stock	Screw	£1.55 £1.29
12	MO322109580/0 In stock	Slide	£6.34 £5.28
13	MO122450484/0 Available to backorder	Spring	£1.55 £1.29
14	MO322735592/0 Available to backorder	Sector. Height Adjustment	£11.69 £9.74
16	MO322602031/0 Available to backorder	Position Plate	£2.12 £1.77
17	MO322602027/0 Available to backorder	Lens	£1.82 £1.52
18	MO322055334/0 Available to backorder	Deck. Adjustment	£14.92 £12.43
19	MO112728904/0 Available to backorder	Screw	£1.49 £1.24
20	MO322778475/0 Available to backorder	Bracket	£2.81 £2.34
21	MO112815270/0 Available to backorder	Screw	£1.55 £1.29
22	MO122450480/0 Available to backorder	Spring	£2.40 £2.00
23	MO122517873/0 Available to backorder	Pin	£2.95 £2.46
24	MO112523040/0 In stock	Washer	£1.49 £1.24
25	MO112154510/0 In stock	Nut	£1.55 £1.29
26	MO381302905/0 Available to backorder	Rear Wheel Axle To S.N 20BA2WBH093245	£55.86 £46.55
26	MO381302905/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH093246	£59.12 £49.27
27	MO322038407/0 Available to backorder	Brass	£1.49 £1.24
28	MO181003118/0 Available to backorder	Gear Box	£190.98 £159.15
29	MO135063802/0 Available to backorder	Belt	£9.17 £7.64
30	MO122450478/0 Available to backorder	Spring	£8.87 £7.39
31	MO122570110/1 In stock	Right Pinion Plastic	£7.39 £6.16
32	MO122570120/1 In stock	Left Pinion Plastic	£7.39 £6.16
33	MO119216035/0 Available to backorder	Bearing	£3.52 £2.93
34	MO122753000/0 In stock	Pin	£1.55 £1.29
35	MO322545147/0 Available to backorder	Plate	£1.97 £1.64
37	MO322778489/0 Available to backorder	Plate	£2.40 £2.00
38	MO112735664/0 Available to backorder	Screw	£1.40 £1.17
39	MO9943-0516-16 In stock	Screw	£1.22 £1.02
40	MO112608600/0 In stock	Seeger	£1.55 £1.29
41	MO322602029/0 Available to backorder	Button	£1.69 £1.41
42	MO381004836/0 Available to backorder	Grey Deck Side Discharge To 31-8-2018	£188.64 £157.20
42	MO381004854/0 Available to backorder	Chassis Mp2 504 Ul [Grey]	£218.21 £181.84
