TWINCLIP 50 SQ B - 2019-2020 - 294512828/ST1 - Stiga Rotary Mower Blade Diagram

Description

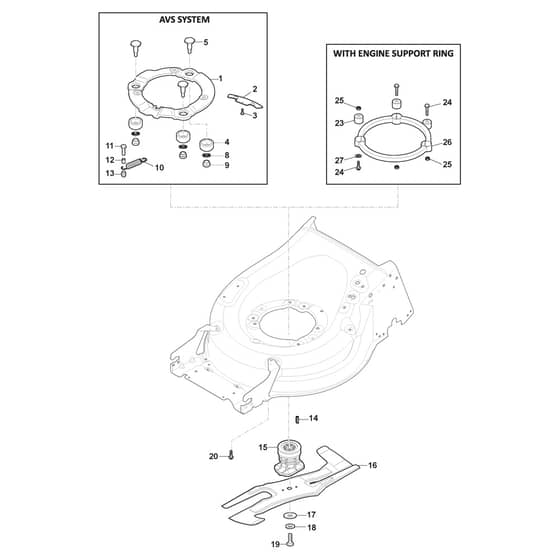

Stiga TWINCLIP 50 SQ B Parts Diagram

Product Name - TWINCLIP 50 SQ B

Model Year - 2019-2020

Model Type - MP2 504 SQK

Art.N - 294512828/ST1

Engine Model - B&S 625 EXi series R.S. Mow&Stow

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381207230/0 Available to backorder	Flange	£32.26 £26.88
2	MO322551536/0 Available to backorder	Plate	£3.67 £3.06
3	MO112728210/0 Available to backorder	Screw	£1.40 £1.17
4	MO322250015/1 In stock	Grommet From 10-12-2020	£7.10 £5.92
5	MO122519816/0 Available to backorder	Pin	£12.19 £10.16
8	MO112543002/0 Available to backorder	Washer	£1.22 £1.02
9	MO112155000/0 In stock	Nut	£1.55 £1.29
10	MO122450439/0 Available to backorder	Spring	£3.38 £2.82
11	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
12	MO122170846/0 Available to backorder	Spacer	£3.10 £2.58
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO112139100/0 In stock	Key	£1.55 £1.29
15	MO122465638/2 In stock	Hub With Pulley. Crankshaft Ø 22.2 From 01-1-2019	£34.43 £28.69
16	MO181004415/0 In stock	Blade	£55.21 £46.01
16	MO1111-9256-02 Available to backorder	Blade Stiga Packed into 181004415.0 From 01-9-2018	£65.99 £54.99
17	MO112508128/0 Available to backorder	Elastic Disc Used only on the MP2 55 AVS ø25 From 01-1-2019	£1.33 £1.11
17	MO122160400/0 In stock	Elastic Disc	£1.82 £1.52
18	MO112523080/0 In stock	Washer	£1.55 £1.29
19	MO112736815/0 Available to backorder	Screw	£4.78 £3.98
20	MO112735108/1 Available to backorder	Screw	£2.12 £1.77
23	MO122170835/0 Available to backorder	Spacer	£6.62 £5.52
24	MO112691700/0 In stock	Screw	£1.82 £1.52
25	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
26	MO322170964/0 Available to backorder	Protection	£4.22 £3.52
27	MO112521350/0 Available to backorder	Washer M8 8.4 X 16 X 1.6	£1.55 £1.29
