TWINCLIP 50 S H - 2018 - 294512038/ST1 - Stiga Rotary Mower Blade Diagram

Description

Stiga TWINCLIP 50 S H Parts Diagram

Product Name - TWINCLIP 50 S H

Model Year - 2018

Model Type - MP2 504 S

Art.N - 294512038/ST1

Engine Model - GCV 160 OHC Autochoke

	Part No.	Details

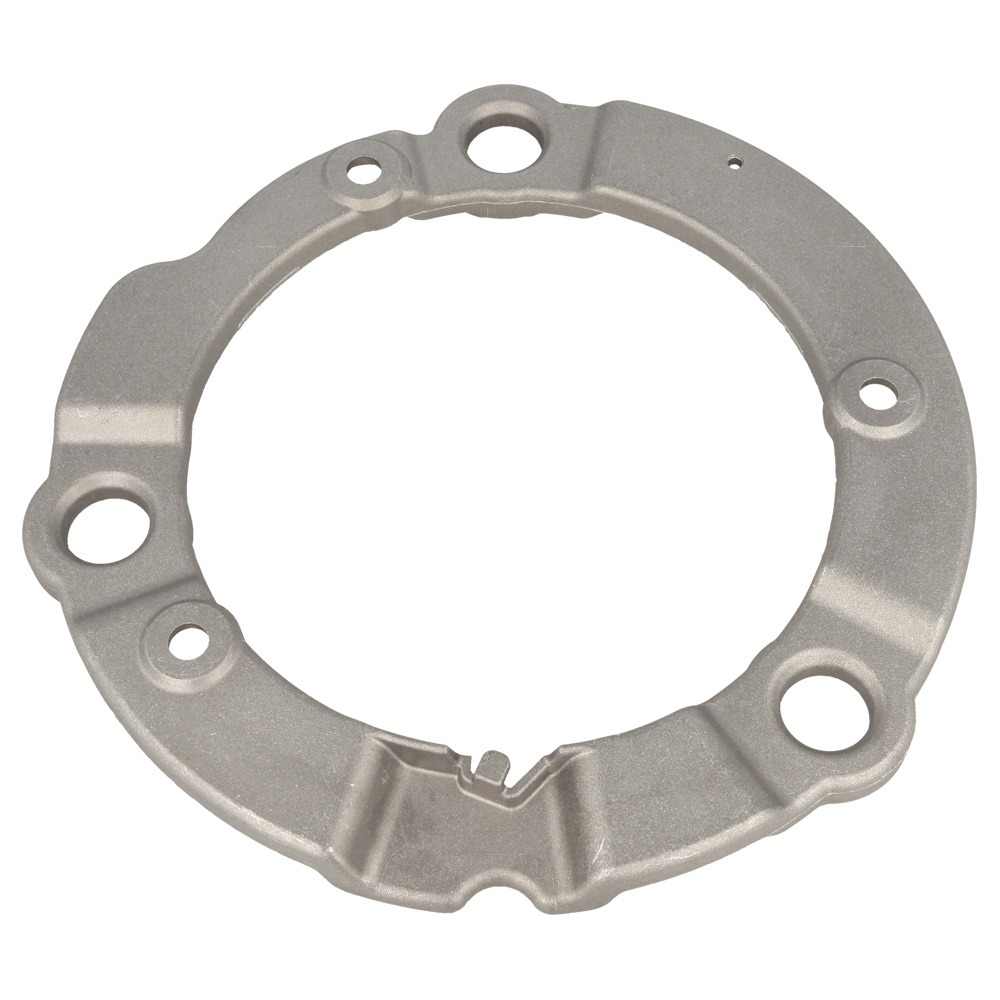

1	MO381207230/0 In stock	Flange	£35.20 £29.33
2	MO322551536/0 Available to backorder	Plate	£3.66 £3.05
3	MO112728210/0 In stock	Screw	£1.39 £1.16
4	MO322250015/1 In stock	Grommet From 10-12-2020	£7.12 £5.93
5	MO122519816/0 In stock	Pin	£12.67 £10.56
8	MO112543002/0 In stock	Washer	£1.26 £1.05
9	MO112155000/0 In stock	Nut	£1.55 £1.29
10	MO122450439/0 In stock	Spring	£3.38 £2.82
11	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
12	MO122170846/0 Available to backorder	Spacer	£3.10 £2.58
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO112139150/0 In stock	Feather. Crankshaft Ø 25	£2.11 £1.76

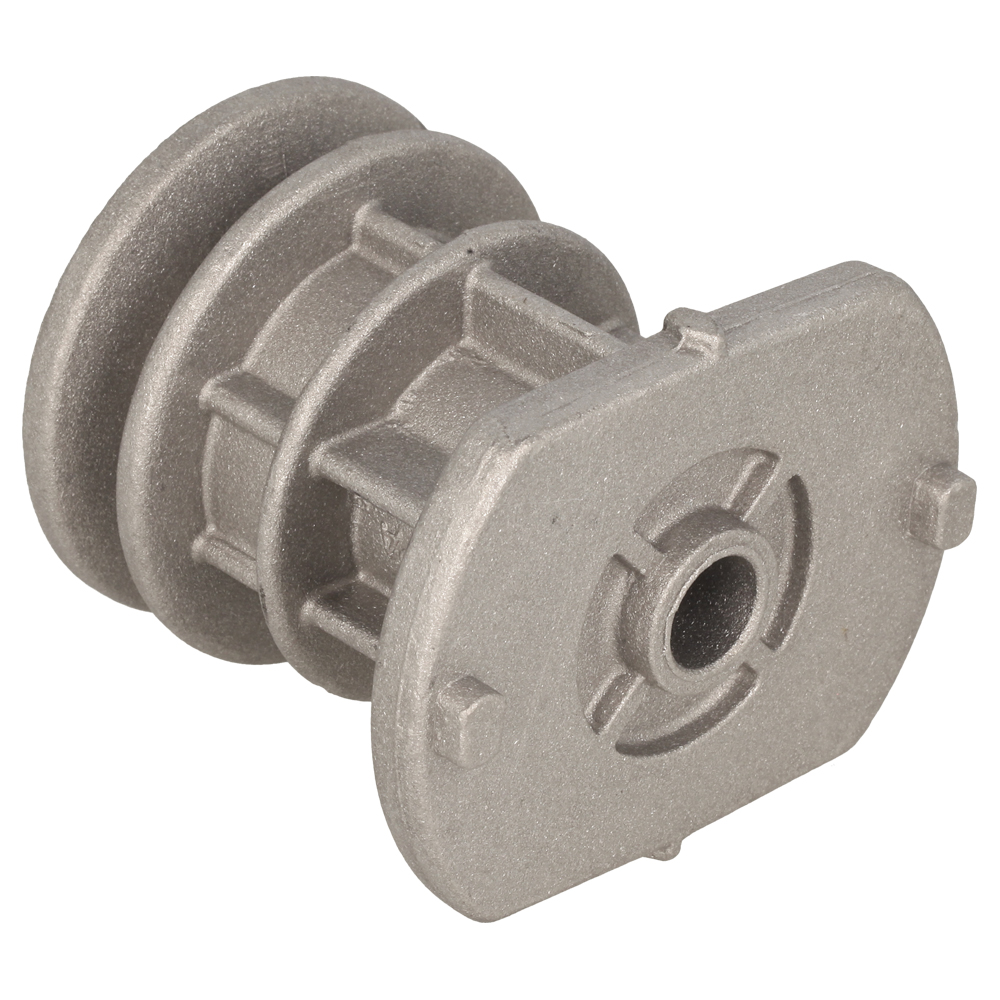

15	MO122465639/2 Available to backorder	Hub. Crankshaft Ø 25 From 01-1-2019	£13.01 £10.84
16	MO181004415/0 In stock	Blade	£49.70 £41.42
16	MO1111-9256-02 Available to backorder	Blade Stiga Packed into 181004415.0 From 01-9-2018	£65.98 £54.98
17	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
17	MO112508128/0 In stock	Elastic Disc Used only on the MP2 55 AVS ø25 From 01-1-2019	£1.33 £1.11
18	MO112523080/0 In stock	Washer	£1.55 £1.29
19	MO112736815/0 Available to backorder	Screw	£4.78 £3.98
20	MO112735108/1 In stock	Screw	£2.11 £1.76
23	MO122170835/0 Available to backorder	Spacer	£6.64 £5.53
24	MO112691700/0 Available to backorder	Screw	£1.84 £1.53
25	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
26	MO322170964/0 Available to backorder	Protection	£4.24 £3.53
27	MO112521350/0 In stock	Washer M8 8.4 X 16 X 1.6	£1.55 £1.29
