Toro TurfMaster HDX 76cm - 22236 (418900000 - 999999999) Housing

Name: Toro TurfMaster HDX 76cm - 22236 (418900000 - 999999999) Housing
SKU: turfmaster_hdx_76cm_22236_4189999999999_housing-group
Price: 0.2 GBP
Availability: InStock

Part No. turfmaster_hdx_76cm_22236_4189999999999_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro TurfMaster HDX 76cm - 22236 (418900000 - 999999999) Housing

Description

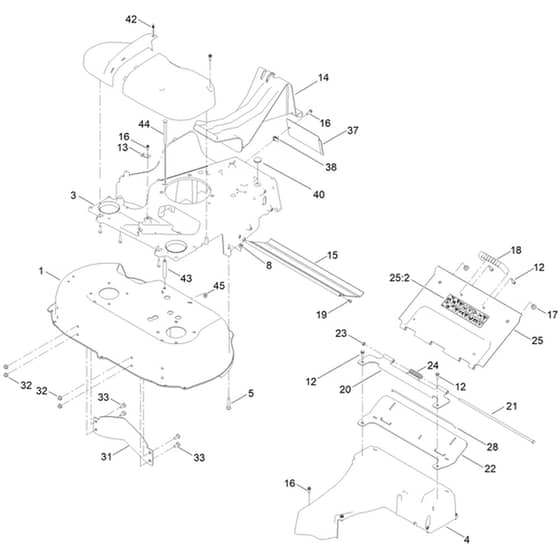

Toro TurfMaster HDX 76cm - 22236 (418900000 - 999999999) Housing Parts Diagram

	Part No.	Details
1	HA163-7227 Available to backorder	Deck-30In [Service]	£358.32 £298.60
3	HA145-3920-01 Available to backorder	Frame-30" [Red]	£321.24 £267.70
4	HA133-8177 In stock	Chute	Was £61.44 £51.20 Special Price £43.92 £36.60
5	HA3230-5 Available to backorder	Carriage Bolt	£0.94 £0.78
8	HA3296-29 Available to backorder	Lock Nut	£2.59 £2.16
12	HA46-8091 Available to backorder	Hex Washer Head (Hwh) Screw	£4.44 £3.70
13	HA138-3224 In stock	Traction Cable Bracket	£2.56 £2.13
14	HA120-5225 Available to backorder	Mulch Plug	£35.88 £29.90
15	HA121-5841 Available to backorder	Trailing Shield	£27.20 £22.67
16	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.56 £2.13
17	HA1-513658 Available to backorder	Bumper	£7.54 £6.28
18	HA65-5100 Available to backorder	Handle-Door	£11.20 £9.33
19	HA139-1692 In stock	Screw-Pth[#12 X 1.2.Ab Thd.Bz]	Was £0.55 £0.46 Special Price £0.24 £0.20
20	HA116-6351-03 Available to backorder	Bracket-Hinge	£45.79 £38.16
21	HA116-6933 Available to backorder	Pin-Hinge	£9.77 £8.14
22	HA116-6229 Available to backorder	Seal-Door	£28.45 £23.71
23	HA32151-72 Available to backorder	Retaining Ring	£2.65 £2.21
24	HA116-7573 Available to backorder	Cover Torsion Spring	£5.94 £4.95
25	HA116-8355 Available to backorder	Rear Door Assembly	£104.52 £87.10
25	HA116-7583 Available to backorder	[25.2] Warning Decal	£30.02 £25.02
28	HA116-6966 Available to backorder	Clip-Seal	£7.40 £6.17
31	HA130-2352-01 In stock	Control Baffle	Was £31.18 £25.98 Special Price £17.99 £14.99
32	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
33	HA3230-23 Available to backorder	Carriage Screw	£1.09 £0.91
37	HA138-5332-01 Available to backorder	Rear Frame Cover - Red	£9.89 £8.24
38	HA107069 Available to backorder	Clip	£2.21 £1.84
40	HA126-7151 Available to backorder	Plug-Button	£6.04 £5.03
42	HA140-1341 Available to backorder	Xmas Tree Clip	£1.60 £1.33
43	HA145-3921 Available to backorder	Spacer	£23.29 £19.41
44	HA109-6795 Available to backorder	Carriage Bolt	£4.82 £4.02
45	HA137-3087 Available to backorder	Hex Nut	£0.62 £0.52
