Toro TurfMaster 76cm - 22207 (407300000 - 410099999) Transmission and HOC

Name: Toro TurfMaster 76cm - 22207 (407300000 - 410099999) Transmission and HOC
SKU: turfmaster_76cm_22207_4734199999_transmissionhoc-group
Price: 0.34 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro TurfMaster 76cm - 22207 (407300000 - 410099999) Transmission and HOC

Description

Toro TurfMaster 76cm - 22207 (407300000 - 410099999) Transmission and HOC Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details

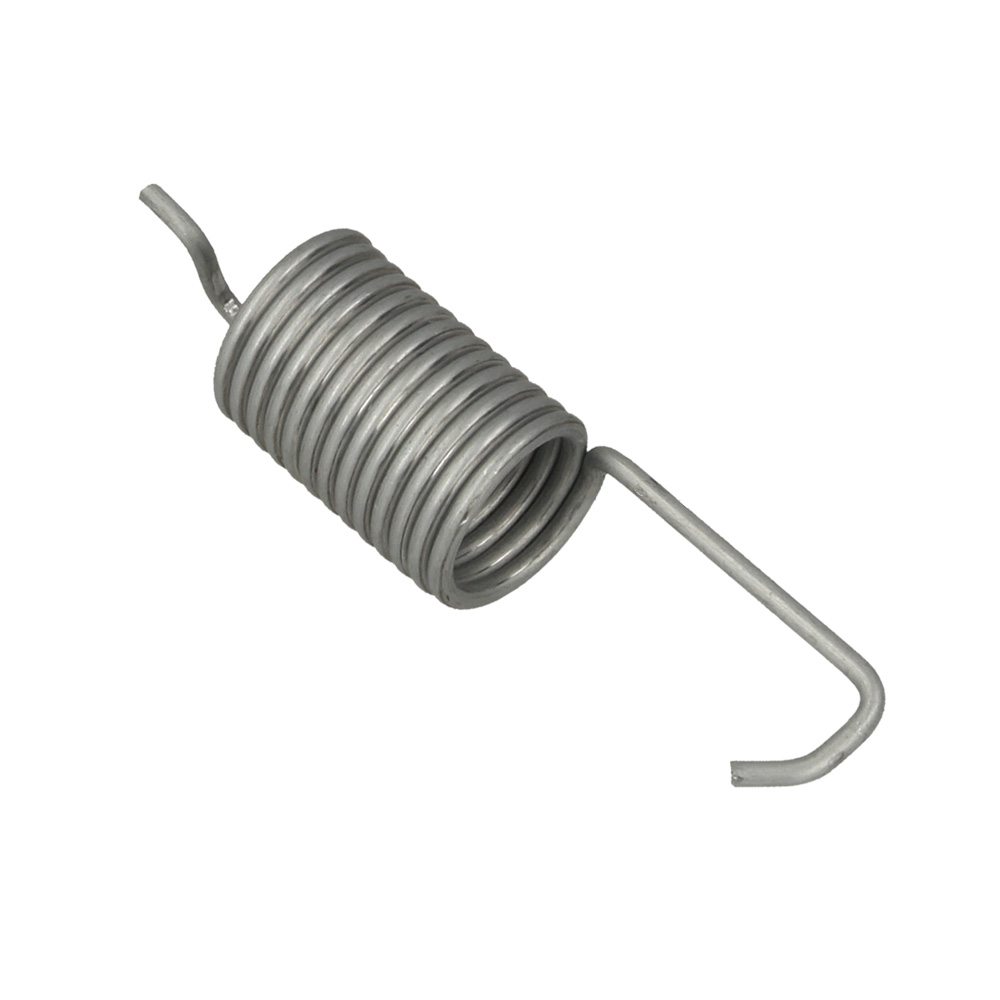

0	HA139-1845 Available to backorder	Belt Tension Spring	£5.84 £4.87
1	HA137-9172-03 Available to backorder	Left Hand Height Of Cut (Hoc) Plate Assembly	£40.66 £33.88
2	HA137-9173-03 Available to backorder	Right Hand Height Of Cut (Hoc) Assembly	£40.66 £33.88

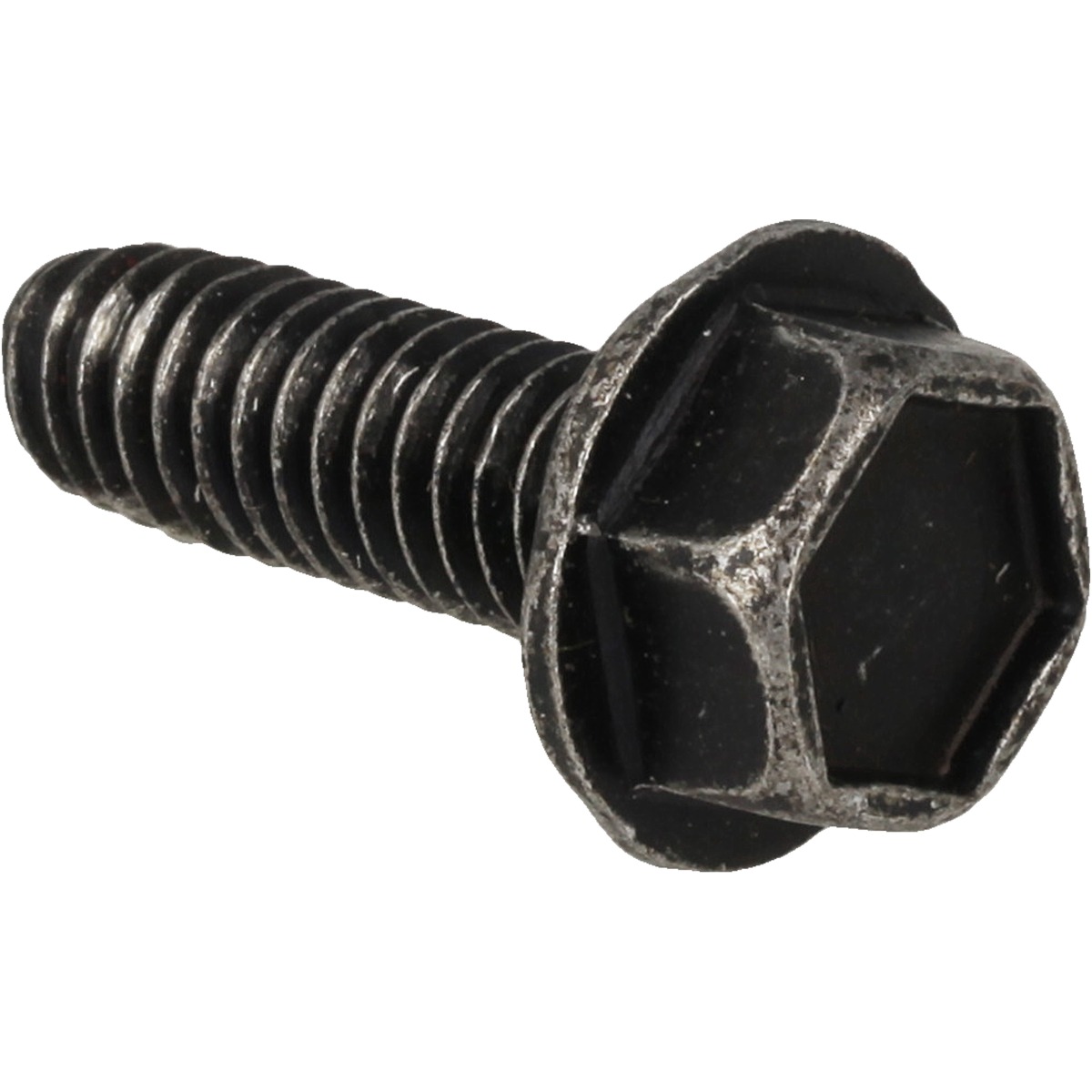

3	HA701243 In stock	Hex Washer Head (Hwh) Screw	Was £3.24 £2.70 Special Price £1.19 £0.99
4	HA137-9183 Available to backorder	Bearing Retainer Assembly	£79.94 £66.62
5	HA137-4779 Available to backorder	Custom Ball Bearing	£17.94 £14.95
6	HA136-9111 Available to backorder	Pinion Gear	£5.74 £4.78
7	HA32151-61 Available to backorder	Retaining Ring	£2.86 £2.38
8	HA3230-23 Available to backorder	Carriage Screw	£1.27 £1.06
9	HA136-7095 Available to backorder	Wheel Cover	£14.34 £11.95
10	HA133-8104-03 Available to backorder	Front Transmission Bracket - Black	£19.12 £15.93
11	HA3230-4 Available to backorder	Carriage Bolt	£0.86 £0.72
12	HA121-2368 Available to backorder	Torsion Spring	£32.30 £26.92
13	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.74 £1.45
14	HA125-2540 Available to backorder	Plain Washer	£3.22 £2.68
15	HA137-9174 Available to backorder	10.5 Inch Geared Rear Drive Wheel	£115.84 £96.53
17	HA121-2397 Available to backorder	Bracket	£16.74 £13.95
18	HA139-6647 Available to backorder	Rear Axle Assembly	£201.96 £168.30
19	HA127-6865 Available to backorder	Decal-Hoc. Rear	£11.74 £9.78
20	HA52-2860 Available to backorder	Washer	£1.58 £1.32
21	HA119-2267 Available to backorder	Screw Assembly With X 1.0	£4.18 £3.48
22	HA120-9471 Available to backorder	Shoulder Bolt	£3.94 £3.28
23	HA120-7090 Available to backorder	Adjustable Height Lock	£40.66 £33.88
24	HA138-5393 Available to backorder	Extension Spring	£5.84 £4.87
25	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.62 £0.52
26	HA3230-2 Available to backorder	Carriage Bolt	£0.86 £0.72
27	HA137-9185 Available to backorder	Bearing Cover	£1.70 £1.42
28	HA133-2670 Available to backorder	Transmission	£572.40 £477.00
28	HA139-1837 Available to backorder	[28.1] Pulley & Fan Repair Kit	£67.56 £56.30
28	HA139-1842 Available to backorder	[28.2] Idler Pulley Repair Kit	£157.66 £131.38
28	HA139-8974 Available to backorder	[28.3] Clutch Lever Repair Kit	£40.20 £33.50
29	HA120-7950 Available to backorder	Screw	£2.14 £1.78
30	HA36-4780 In stock	Plain Washer	£10.34 £8.62
31	HA3296-47 Available to backorder	Lock Nut	£4.30 £3.58
32	HA138-5394-03 Available to backorder	Bracket Assembly - Brake [Black	£19.12 £15.93
33	HA138-5398 Available to backorder	Disc Brake Caliper	£107.78 £89.82
34	HA32144-4 In stock	Hex Washer Head (Hwh) Screw	Was £1.68 £1.40 Special Price £0.60 £0.50
35	HA139-8990 Available to backorder	Obs Rotor Hub	£7.16 £5.97
36	HA933156 Available to backorder	Roll Pin	£1.15 £0.96
37	HA138-5396 Available to backorder	Rotor - Disc	£17.94 £14.95
38	HA139-8960 Available to backorder	Torx Screw	£0.41 £0.34
39	HA609471 Available to backorder	Screw	£5.12 £4.27
