Toro TurfMaster 76cm - 22207 (400000000 - 405999999) Pulleys and Idler No. 126-7890

Name: Toro TurfMaster 76cm - 22207 (400000000 - 405999999) Pulleys and Idler No. 126-7890
SKU: turfmaster_76cm_22207_445999999_pulleysidler_no_126_7890-group
Price: 0.69 GBP
Availability: InStock

Part No. turfmaster_76cm_22207_445999999_pulleysidler_no_126_7890-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro TurfMaster 76cm - 22207 (400000000 - 405999999) Pulleys and Idler No. 126-7890

Description

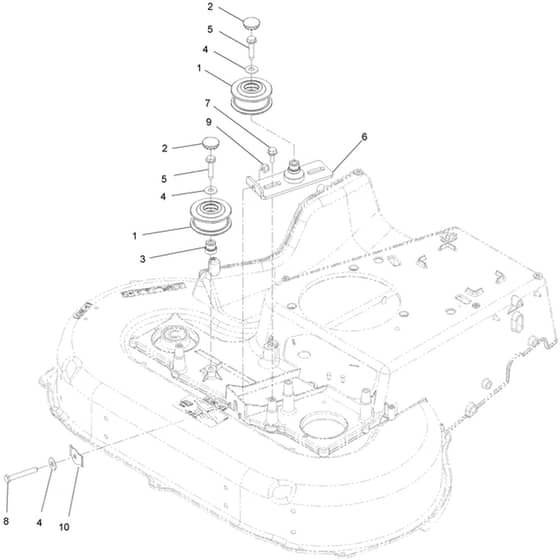

Toro TurfMaster 76cm - 22207 (400000000 - 405999999) Pulleys and Idler No. 126-7890 Parts Diagram

	Part No.	Details
1	HA126-5880 Available to backorder	Flat Idler Pulley	£64.56 £53.80
2	HA126-7151 Available to backorder	Plug-Button	£6.04 £5.03
3	HA131-4504 Available to backorder	Loose Fit Bore Adapter	£6.04 £5.03
4	HA3256-3 Available to backorder	Flat Washer	£0.83 £0.69
5	HA32144-57 Available to backorder	Screw	£1.78 £1.48
6	HA126-6453 Available to backorder	Idler Bracket	£68.16 £56.80
7	HA120-7024 Available to backorder	Hex Head Flange (Hhf) Shoulder Screw	£2.21 £1.84
8	HA139-1728 Available to backorder	Hex Head (Hh) Tap Bolt	£1.60 £1.33
9	HA3296-29 Available to backorder	Lock Nut	£2.59 £2.16
10	HA121-2336 Available to backorder	Flat Spring	£9.26 £7.72
