Toro TurfMaster 76cm - 22207 (415400000 - 999999999) Transmission and HOC

Name: Toro TurfMaster 76cm - 22207 (415400000 - 999999999) Transmission and HOC
SKU: turfmaster_76cm_22207_4154999999999_transmissionhoc-group
Price: 0.29 GBP
Availability: InStock

Part No. turfmaster_76cm_22207_4154999999999_transmissionhoc-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro TurfMaster 76cm - 22207 (415400000 - 999999999) Transmission and HOC

Description

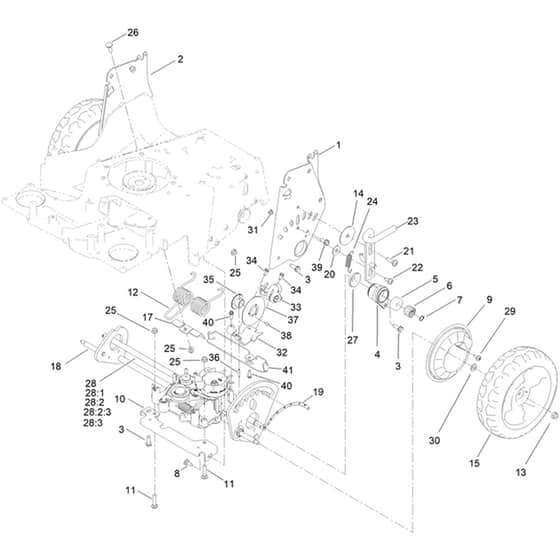

Toro TurfMaster 76cm - 22207 (415400000 - 999999999) Transmission and HOC Parts Diagram

	Part No.	Details
0	HA139-1845 Available to backorder	Belt Tension Spring	£6.04 £5.03
1	HA137-9172-03 Available to backorder	Left Hand Height Of Cut (Hoc) Plate Assembly	£42.06 £35.05
2	HA137-9173-03 Available to backorder	Right Hand Height Of Cut (Hoc) Assembly	£42.06 £35.05
3	HA701243 In stock	Hex Washer Head (Hwh) Screw	Was £3.24 £2.70 Special Price £1.19 £0.99
4	HA137-9183 Available to backorder	Bearing Retainer Assembly	£83.64 £69.70
5	HA137-4779 Available to backorder	Custom Ball Bearing	£18.56 £15.47
6	HA136-9111 Available to backorder	Pinion Gear	£5.94 £4.95
7	HA32151-61 Available to backorder	Retaining Ring	£3.07 £2.56
8	HA3230-23 Available to backorder	Carriage Screw	£1.09 £0.91
9	HA136-7095 Available to backorder	Wheel Cover	£14.83 £12.36
10	HA133-8104-03 Available to backorder	Front Transmission Bracket - Black	£19.78 £16.48
11	HA3230-4 Available to backorder	Carriage Bolt	£0.80 £0.67
12	HA121-2368 Available to backorder	Torsion Spring	£33.41 £27.84
13	HA104-8301 Available to backorder	Hex Flange (Hf) Nut	£1.80 £1.50
14	HA125-2540 Available to backorder	Plain Washer	£3.34 £2.78
15	HA137-9174 Available to backorder	10.5 Inch Geared Rear Drive Wheel	£119.04 £99.20
17	HA121-2397 Available to backorder	Bracket	£17.32 £14.43
18	HA139-8967 Available to backorder	Rear Axle Assembly	£178.56 £148.80
19	HA127-6865 Available to backorder	Decal-Hoc. Rear	£12.14 £10.12
20	HA52-2860 Available to backorder	Washer	£1.43 £1.19
21	HA119-2267 Available to backorder	Screw Assembly With X 1.0	£4.32 £3.60
22	HA120-9471 Available to backorder	Shoulder Bolt	£4.08 £3.40
23	HA139-1737 Available to backorder	Adjustable Height Lock	£30.94 £25.78
24	HA138-5393 Available to backorder	Extension Spring	£6.04 £5.03
25	HA104-8300 Available to backorder	Hex Flange (Hf) Nut	£0.66 £0.55
26	HA3230-2 Available to backorder	Carriage Bolt	£0.80 £0.67
27	HA137-9185 Available to backorder	Bearing Cover	£1.46 £1.22
28	HA133-2670 Available to backorder	Transmission	£530.57 £442.14
28	HA139-1837 Available to backorder	[28.1] Pulley & Fan Repair Kit	£69.24 £57.70
28	HA139-1842 Available to backorder	[28.2] Idler Pulley Repair Kit	£162.48 £135.40
28	HA139-8974 Available to backorder	[28.3] Clutch Lever Repair Kit	£43.26 £36.05
29	HA120-7950 Available to backorder	Screw	£2.21 £1.84
30	HA36-4780 In stock	Plain Washer	£11.70 £9.75
31	HA3296-47 Available to backorder	Lock Nut	£4.45 £3.71
32	HA138-5394-03 Available to backorder	Bracket Assembly - Brake [Black	£19.78 £16.48
33	HA138-5398 Available to backorder	Disc Brake Caliper	£111.00 £92.50
34	HA32144-4 Available to backorder	Hex Washer Head (Hwh) Screw	Was £1.60 £1.33 Special Price £0.60 £0.50
35	HA139-8990 Available to backorder	Rotor Hub	£7.40 £6.17
36	HA933156 Available to backorder	Roll Pin	£1.00 £0.83
37	HA138-5396 Available to backorder	Rotor - Disc	£18.56 £15.47
38	HA139-8960 Available to backorder	Torx Screw	£0.35 £0.29
39	HA609471 Available to backorder	Screw	£5.29 £4.41
40	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.56 £2.13
41	HA140-1262-01 Available to backorder	Bracket Assembly - Cable [Red	£19.97 £16.64
