Toro TurfMaster 76cm - 22207 (415400000 - 999999999) Blade and Spindle

Name: Toro TurfMaster 76cm - 22207 (415400000 - 999999999) Blade and Spindle
SKU: turfmaster_76cm_22207_4154999999999_bladespindle-group
Price: 0.7 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro TurfMaster 76cm - 22207 (415400000 - 999999999) Blade and Spindle

Description

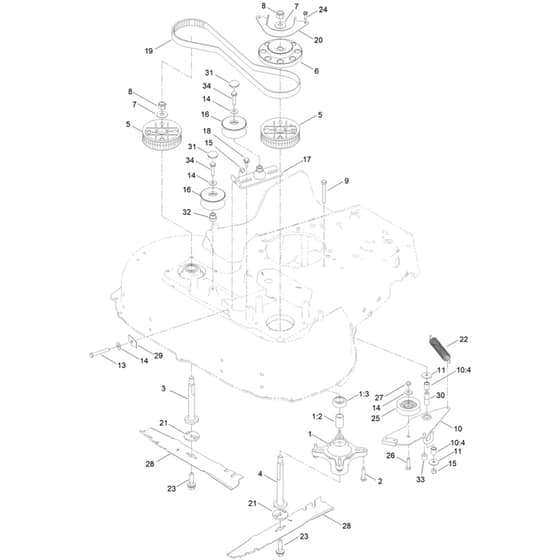

Toro TurfMaster 76cm - 22207 (415400000 - 999999999) Blade and Spindle Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA121-9107 Available to backorder	Spindle Assembly	£108.12 £90.10
1	HA120-7935 Available to backorder	[1.2] Spacer	£2.38 £1.98
1	HA136-5441 Available to backorder	[1.3] Ball Bearing	£8.84 £7.37
2	HA139-1731 Available to backorder	Hex Washer Head (Hwh) Roll Thd Screw	£1.13 £0.94
3	HA139-6612 Available to backorder	Spindle Shaft	£45.04 £37.53
4	HA139-6613 Available to backorder	Spindle Shaft	£33.48 £27.90
5	HA121-9100 Available to backorder	Sprocket	£61.00 £50.83
6	HA130-6664 Available to backorder	Spindle Brake Pulley	£53.82 £44.85
7	HA109-9505 In stock	Spring Washer	Was £5.56 £4.63 Special Price £2.39 £1.99
8	HA3296-19 Available to backorder	Hex Nut	£1.22 £1.02
9	HA322-13 Available to backorder	Hex Head (Hh) Screw	£4.28 £3.57
10	HA136-5903 Available to backorder	Brake Arm Assembly	£75.36 £62.80
10	HA131-0819 Available to backorder	[10.4] Bushing-Sleeve[1.2X.750]	£2.86 £2.38
11	HA5-4460 Available to backorder	Pivot Washer	£9.70 £8.08
13	HA139-1728 Available to backorder	Hex Head (Hh) Tap Bolt	£1.54 £1.28
14	HA3256-3 Available to backorder	Flat Washer	£0.94 £0.78
15	HA3296-29 Available to backorder	Lock Nut	£2.50 £2.08
16	HA126-7890 Available to backorder	Pulleys And Idler Kit	£196.20 £163.50
17	HA126-6453 Available to backorder	Idler Bracket	£68.18 £56.82
18	HA120-7024 Available to backorder	Hex Head Flange (Hhf) Shoulder Screw	£2.14 £1.78
19	HA120-3335 In stock	Synchronous Belt	£53.88 £44.90
20	HA120-5245-03 Available to backorder	Spindle Belt Guide	£13.16 £10.97
21	HA120-5236 In stock	Blade Adapter Or Mower Blade Adapter	£7.76 £6.47
22	HA121-5808 Available to backorder	Brake Extension Spring	£19.12 £15.93
23	HA125-2466 Available to backorder	Blade Bolt	£3.70 £3.08
24	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.38 £1.98
25	HA120-7082 Available to backorder	Idler Pulley	£26.30 £21.92
26	HA322-6 Available to backorder	Hex Head (Hh) Screw	£0.84 £0.70
27	HA3296-47 Available to backorder	Lock Nut	£4.30 £3.58
28	HA120-9500-03 Available to backorder	15.4 Inch Atomic Blade	£21.36 £17.80
29	HA121-2336 Available to backorder	Flat Spring	£8.72 £7.27
30	HA131-0823 Available to backorder	Brake Spacer	£15.54 £12.95
31	HA126-7151 Available to backorder	Plug-Button	£5.84 £4.87
32	HA131-4504 Available to backorder	Loose Fit Bore Adapter	£5.84 £4.87
33	HA133-1964 Available to backorder	Spacer	£2.86 £2.38
34	HA32144-57 Available to backorder	Screw	£1.62 £1.35
