TURBO X3 50 S H - 2011-2013 - 290506831/S11 - Stiga Rotary Mower Blade Diagram

Description

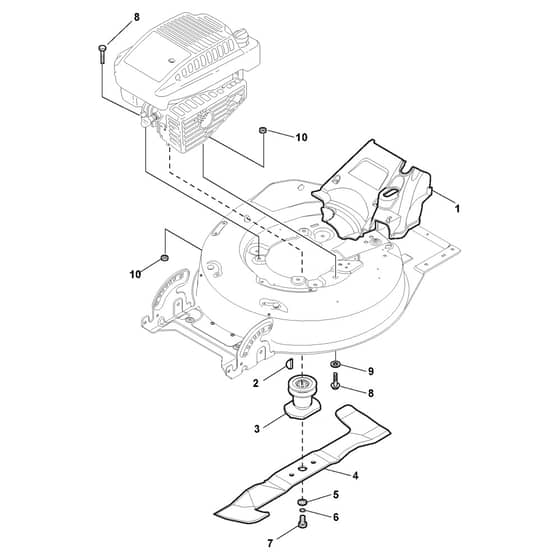

Stiga TURBO X3 50 S H Parts Diagram

Product Name - TURBO X3 50 S H

Model Year - 2011-2013

Model Type - DM 504 W TR

Art.N - 290506831/S11

Engine Model - GCV 135 OHC

	Part No.	Details
2	MO112139100/0 In stock	Key	£1.55 £1.29
2	MO112139150/0 In stock	Feather. Crankshaft Ø 25	£2.11 £1.76
3	MO122465608/3 In stock	Hub With Pulley. Crankshaft Ø 25 From 01-9-2010	£9.23 £7.69
4	MO181004450/0 Available to backorder	Mulching Blade	£28.27 £23.56
5	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
6	MO112523080/0 In stock	Washer	£1.55 £1.29
7	MO112735698/0 In stock	Screw	£1.84 £1.53
8	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
9	MO112521350/0 In stock	Washer	£1.55 £1.29
10	MO112154210/0 Available to backorder	Self-Lock Winged Nut M8 Din 6927	£1.70 £1.42
