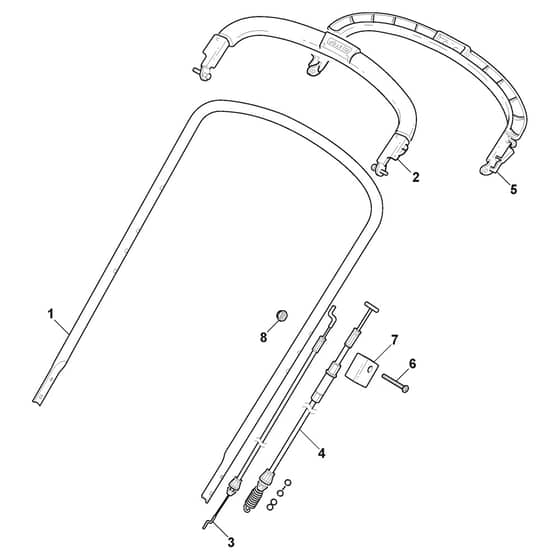

TURBO PRO 55 S4 B - 2013 - 292552028/S13 - Stiga Rotary Mower Handle Upper Part Diagram

Name: TURBO PRO 55 S4 B - 2013 - 292552028/S13 - Stiga Rotary Mower Handle Upper Part Diagram
SKU: turbo_pro_55_s4_b_292552028_s13_handle_upper_part-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TURBO PRO 55 S4 B - 2013 - 292552028/S13 - Stiga Rotary Mower Handle Upper Part Diagram

Description

Stiga TURBO PRO 55 S4 B Parts Diagram

Product Name - TURBO PRO 55 S4 B

Model Year - 2013

Model Type - TU 554 TR 4S

Art.N - 292552028/S13

Engine Model - 850 E series Ready Start

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006632/1 Available to backorder	Handle. Upper Part	£28.15 £23.46
2	MO381003320/1 Available to backorder	Lever. Engine Brake	£59.66 £49.72
3	MO181030061/0 In stock	Cable. Thread Engine Brake Both ends with "S" shape	£13.31 £11.09
4	MO381000697/0 In stock	Cable Rear Drive	£20.28 £16.90
5	MO381003297/1 Available to backorder	Driving Lever From 01-9-2004	£22.10 £18.42
6	MO112727783/0 Available to backorder	Screw	£1.69 £1.41
7	MO322551685/0 In stock	Cable Holder	£7.52 £6.27
8	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
